Page 129
TRANSMISSION SYSTEM
4-25
D569-W02 May-2003

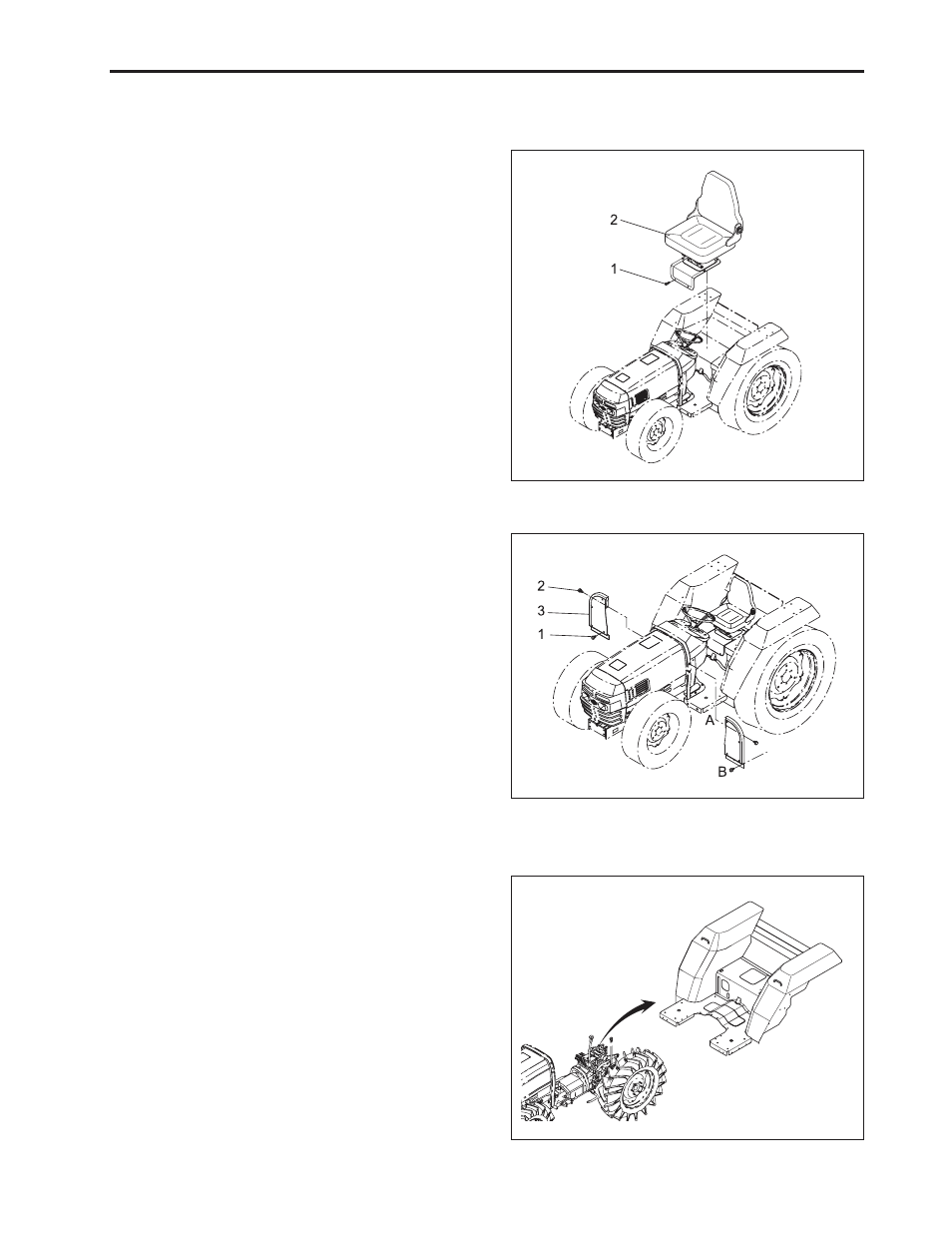

4.3 SEPARATING REAR FENDERS
AND PLATFORM ASSEMBLY
Preparation
1. Remove the Rops.
2. Remove the Bolts (1) and take out the seat Assem-
bly (2).
Cover
1. Remove the bolts (1), (2) and the cover assembly
(3).
Fender, Floor Seat and Platform Assembly
1. Remove the fender (1, 2), floor seat and platform as
a unit.
(1) Bolt
(3) Cover
(2) Bolt
(1) Bolt
(2) Seat Assembly
569W431A
569W432A
569W433A
