Cub Cadet 8454 User Manual
Page 254
CHAPTER 6 8454
6-60
D569-W02 May-2003

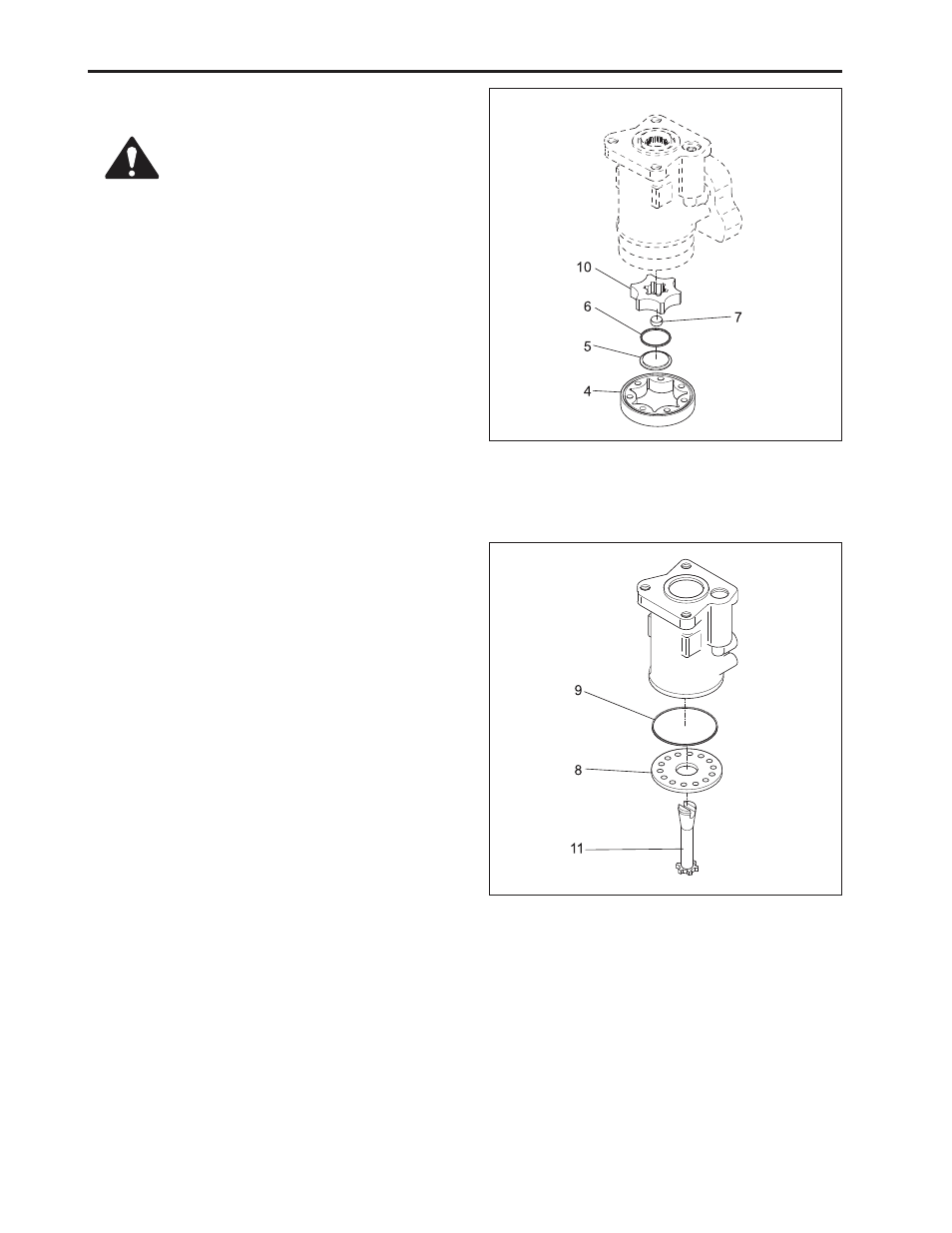

7. Disassembling the gerotor. Be careful not to drop
the rotor from the outer ring of the gerotor.
8. Take out spacer plate (8) and O-ring (9).
9. Take out drive (11).
10. Remove O-ring out of the housing.
569W683A
6. Take out spacers (5), (7) and O-ring (6) located in-
side the inner spline of the rotor (10) in gerotor (4).
569W682A
CAUTION
•
There is no spacer in the power steer-
ing units of outlet capacities of 31 cc/
rev and 51 cc/rev.
(4) Stator
(7) Spacer
(5) Spacer (10) Rotor
(6) O-ring
(8) Spacer Plate
(11) Drive
(9) O-ring
