CHAPTER 5 8454
5-10 D569-W02 May-2003

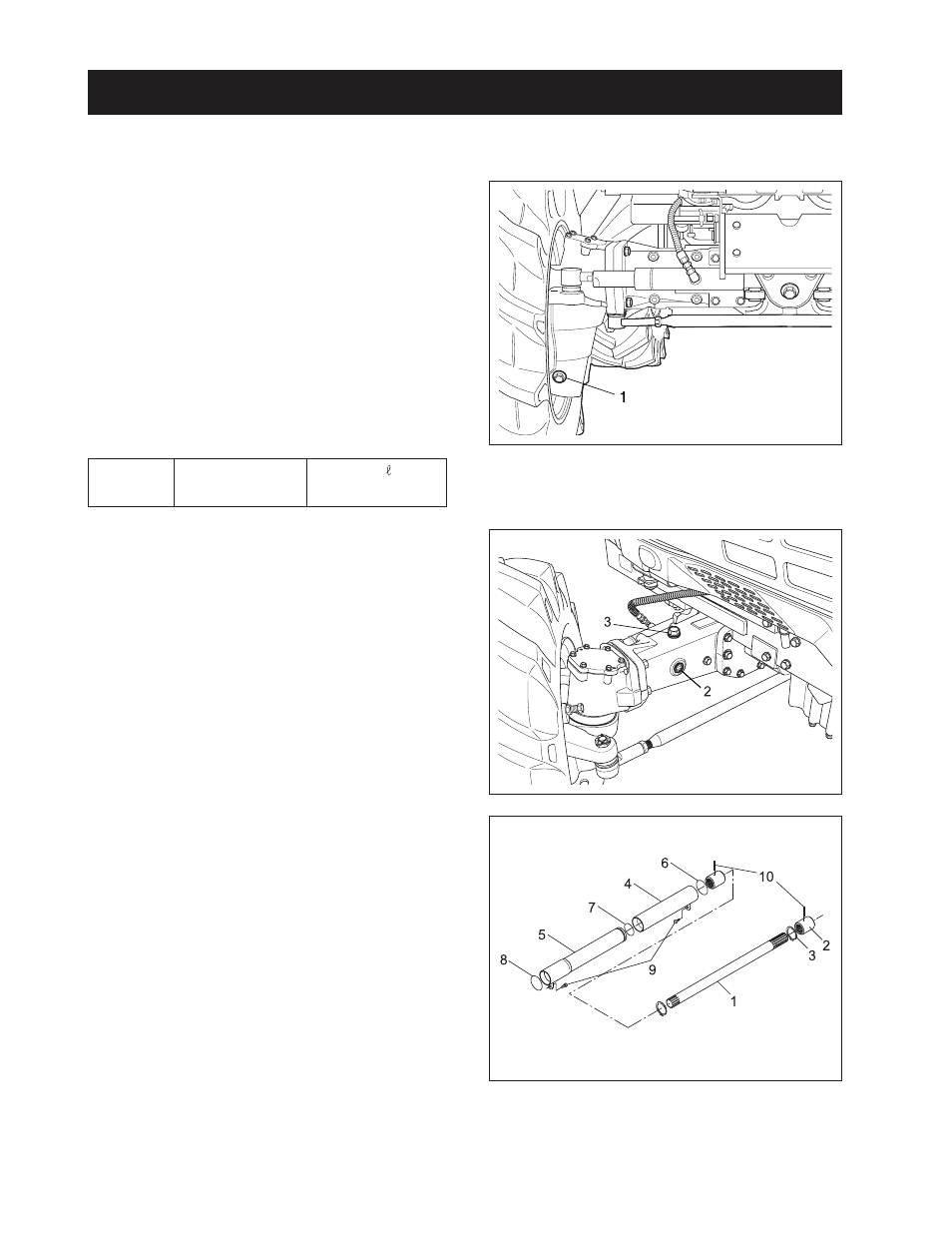

PROPELLER SHAFT (4), (5)
1. Slide the propeller shaft cover (4), (5) after remov-
ing the bolt (9).
2. Tap out the spring pin (10), and then slide the cou-
pling (2) to the front.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
(1) Propeller Shaft (6) O-Ring
(2) Coupling (7) O-Ring
(3) Cir-Clip (8) O-Ring
(4) Propeller Shaft Cover (9) Bolt
(5) Propeller Shaft Cover (10) Spring Pin
569W515A
4. PREPARATION STAGE FOR DISSEMBLING AND ASSEMBLING
4.1 SEPARATING FRONT AXLE
DRAINING FRONT AXLE CASE OIL
1. Place oil pans underneath the front axle case.
2. Remove the drain plug (1) both sides and filling
port plug (3) to drain the oil.
3. After draining, reinstall the drain plugs (1) and fill-
ing port plug (3).
(When refilling)
• Remove the filling port plug (3) and check gauge
(2).
• Fill with the new oil up to the check plug port.
• After filling, reinstall the check gauge (2) and filling
port plug (3).
Capacity Front axle case oil 8.2
2.2 U.S. gal.
IMPORTANT:
• Use SAE 80, 90 gear oil. Refer to “LUBRICANTS,
FUEL AND COOLING WATER” (Chapter 1).
(1) Drain Plug
(2) Gauge
(3) Filling Port Plug
569W511A
569W512A
