CHAPTER 6 8454
6-4 D569-W02 May-2003

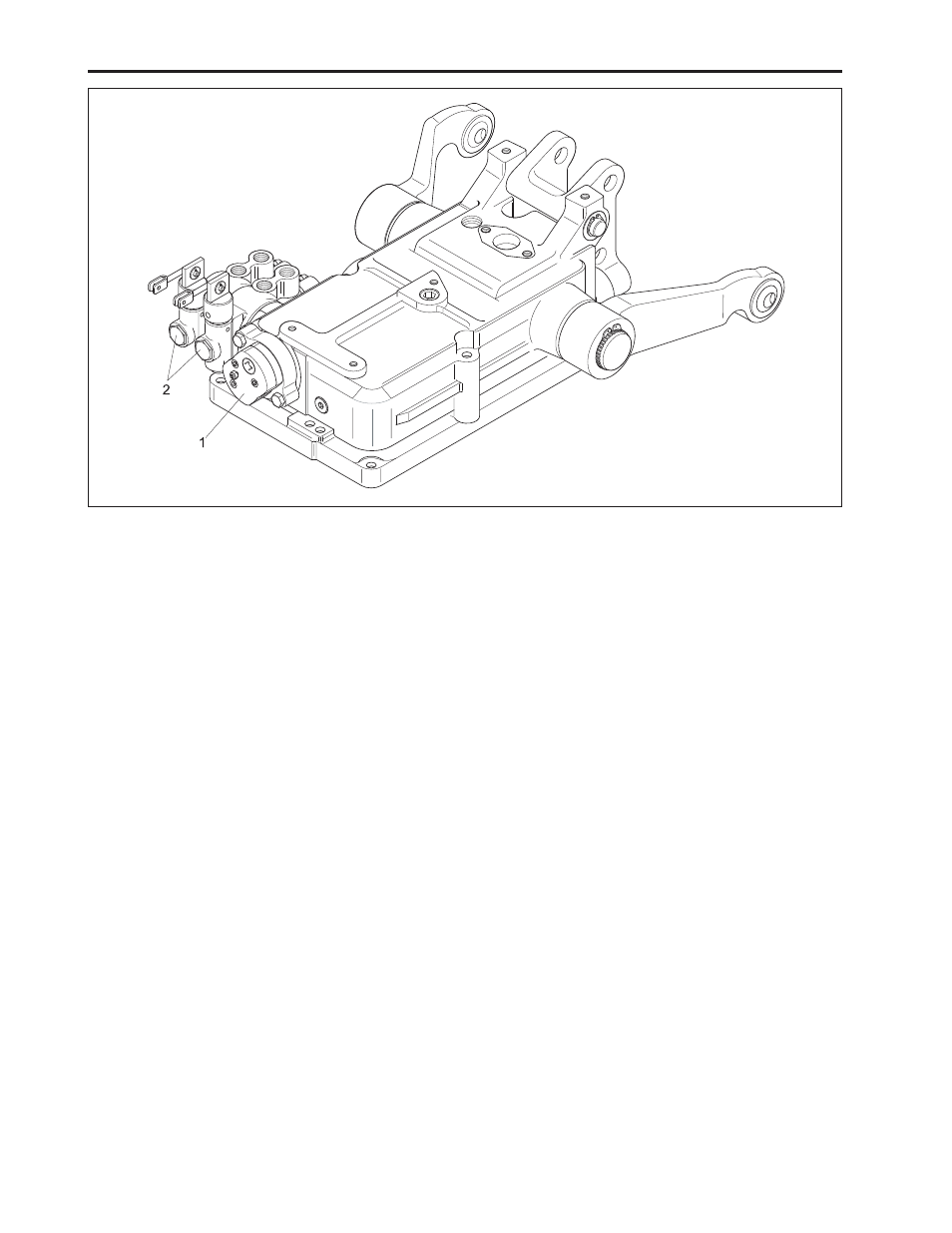

(1) Control Valve (2) Double Acting Valve
Hydraulic lift system to raise the implement connected
to the 3 point link provides three applications of posi-
tion control, draft control and mixed control by the con-
trol valve and the linkage installed on the hydraulic cyl-
inder body. Since main control valve is available to con-
trol oil flowing in and out of the hydraulic cylinder so to
control the implement up and down at a constant speed
regardless of the implement load, high work perfor-
mance can be achieved without impact while raised or
lowered. Several implements can be attached at a time
for their applications owing to the outlet valve of the
exterior oil pressure equipped on the rear of the power
lift body in 8454.
569W602A
