Cub Cadet 8454 User Manual
Page 64

CHAPTER 2 8454
2-42
D569-W02 May-2003
569W266A
569W267A
569W268A

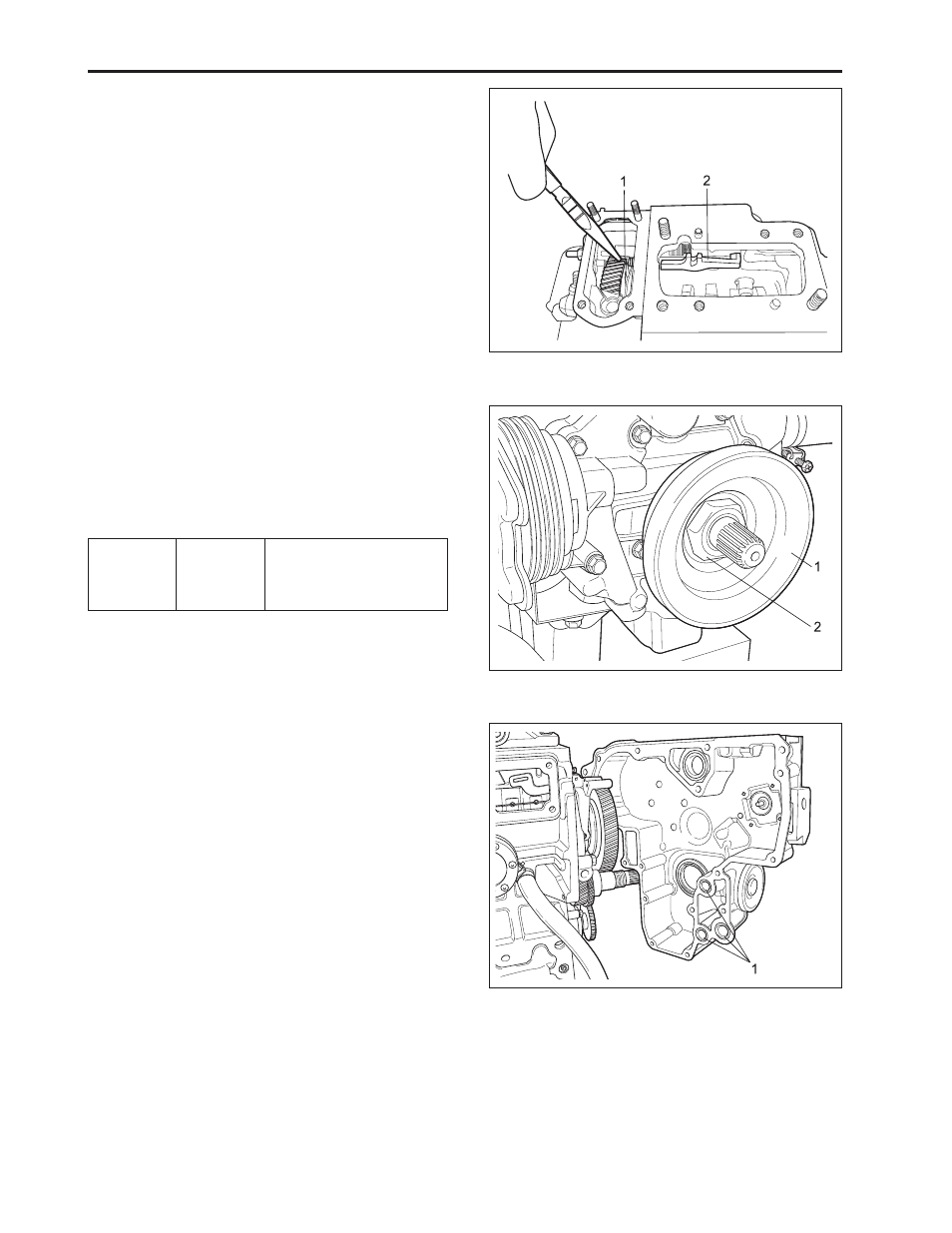

5) Gear case
1. Remove the gear case.
(When reassembling)
•
Stick the O-ring (1) to the gear case with thin grease
to prevent from coming off during reassembling.
•
Apply grease to the crankshaft oil seal lip on the
gear case and take care not to damage it when
installing.
•
Apply liquid gasket (three bond 1215 or equivalent)
to the both sides of gear case gasket.
(1) O-Ring
3) Start spring
1. Remove the start spring (1) from the fork lever 1 (2).
(When reassembling)
•
Be careful not to drop the start spring into the gear
case.
•
Hook the start spring so that the longer hook is on
the fork lever side.
4) Fan drive pulley
1. Install the stopper to the flywheel so that the crank-
shaft may not turn.
2. Flatten the metal lock and loosen the crankshaft
nut (2).
3. Remove the fan drive fan drive pulley (1).
(1) Fan Drive Pulley
(2) Crankshaft Nut
Tightening
torque
137.3 ~ 156.9 N·m
14.0 ~ 16.0 kgf·m
101.3 ~ 115.7 lbf·ft
Crankshaft
nut
(1) Start Spring
(2) Fork Lever 1
