Page 221
HYDRAULIC SYSTEM
6-27
D569-W03 June-2003
1.5 DISASSEMBLING AND
ASSEMBLING

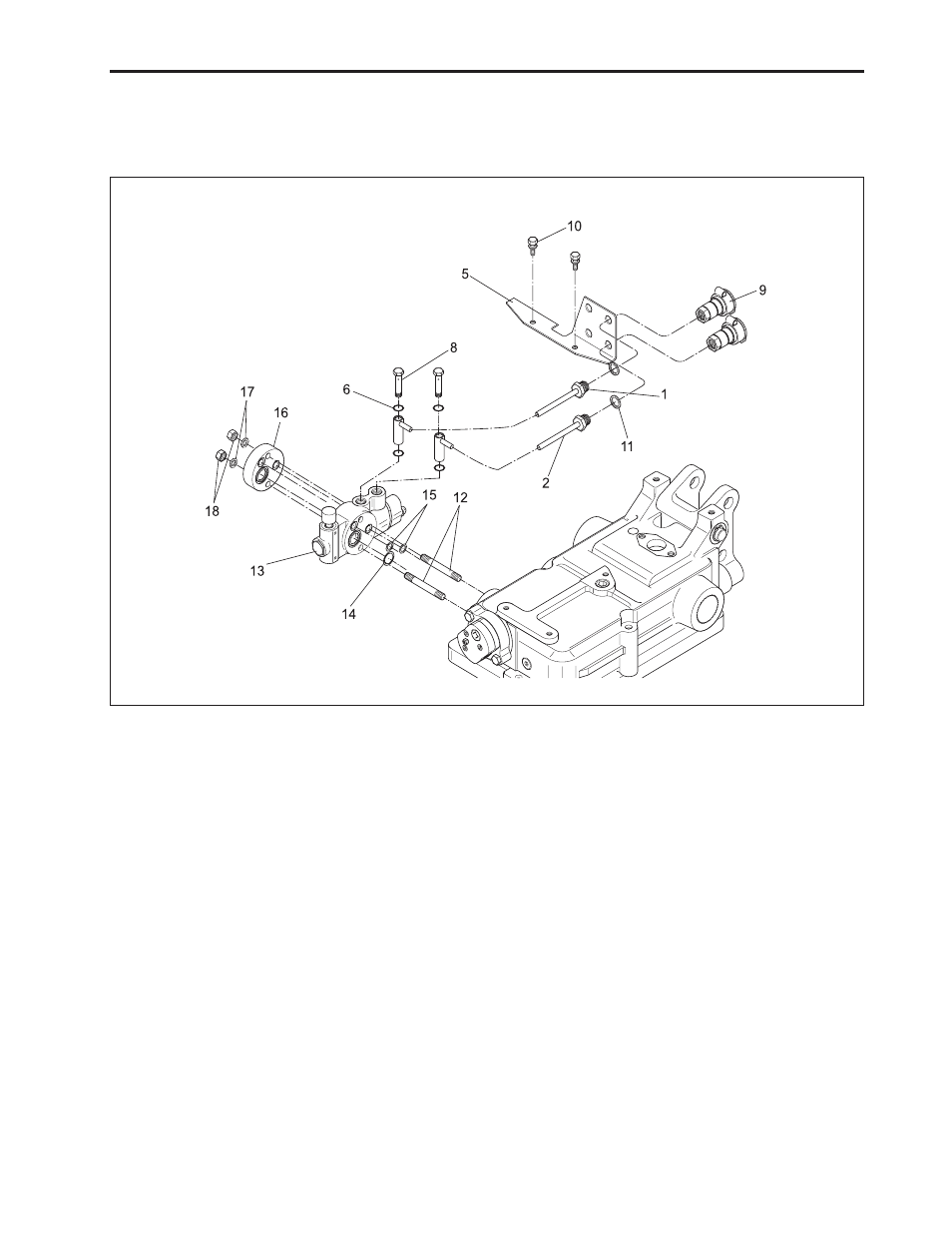

A. AUXILIARY CONTROL VALVES
(1) Pipe A
(8) Joint Bolt 2
(2) Pipe B
(9) Quick Coupler
(5) Bracket
(10) Bolt
(6) O-Ring
(11) Seal Washer
569W635B
(if equipped)
1. Loosen and remove the joint bolt 2 (8), hydraulic
pipes ((1), (2)), bracket (5) and quick couplers (9)
as a unit.
2. Loosen and remove the auxiliary control valve
mounting two nuts (18), washer (17) and take out
the auxiliary valves (13) from the power lift body.
(When refilling)
•
Take care not to damage the O-rings.
(15) O-Ring
(16) Flange
(12) Stud
(17) Washer
(13) Auxiliary Valve
(18) Nut
(14) O-Ring
