Page 232
CHAPTER 6 8454
6-38
D569-W02 May-2003
2. PTO CLUTCH VALVE SYSTEM
2.1 SPECIFICATIONS AND DIAGRAM
A. SPECIFICATION
Solenoid valve
Modulating valve
Maximum oil flowing ( /min, gal/min)
Rated oil flowing ( /min, gal/min)
Relief pressure (kgf/cm
2
, psi)
Oil flowing ( /min, gal/min)
65 (17.17)
7.1 (1.88)
16 ~ 18 (228 ~ 256)
7 (1.85)
8454

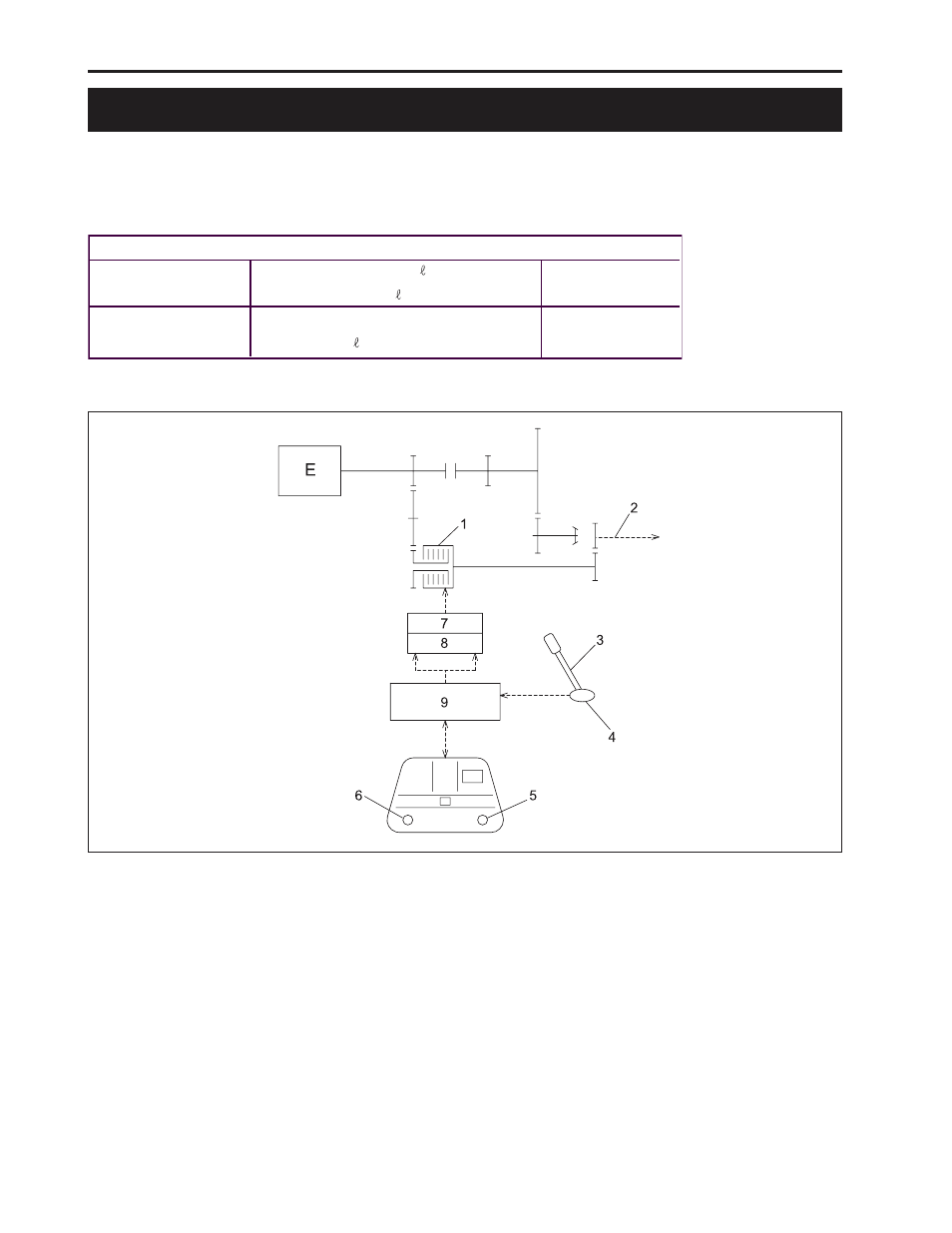

B. DIAGRAM
569W650A
(1) PTO Clutch
(2) PTO Shaft
(3) Position Control Lever
(4) Detecting Sensor of the Implement
(5) PTO Switch
(6) PTO Monitor Lamp
(7) Modulating Valve
(8) Solenoid Valve
(9) Interlocking Relay (PTO at Neutral, CLUTCH at
Neutral)
(E) Engine
