BRAKE
7-13 D569-W02 May-2003

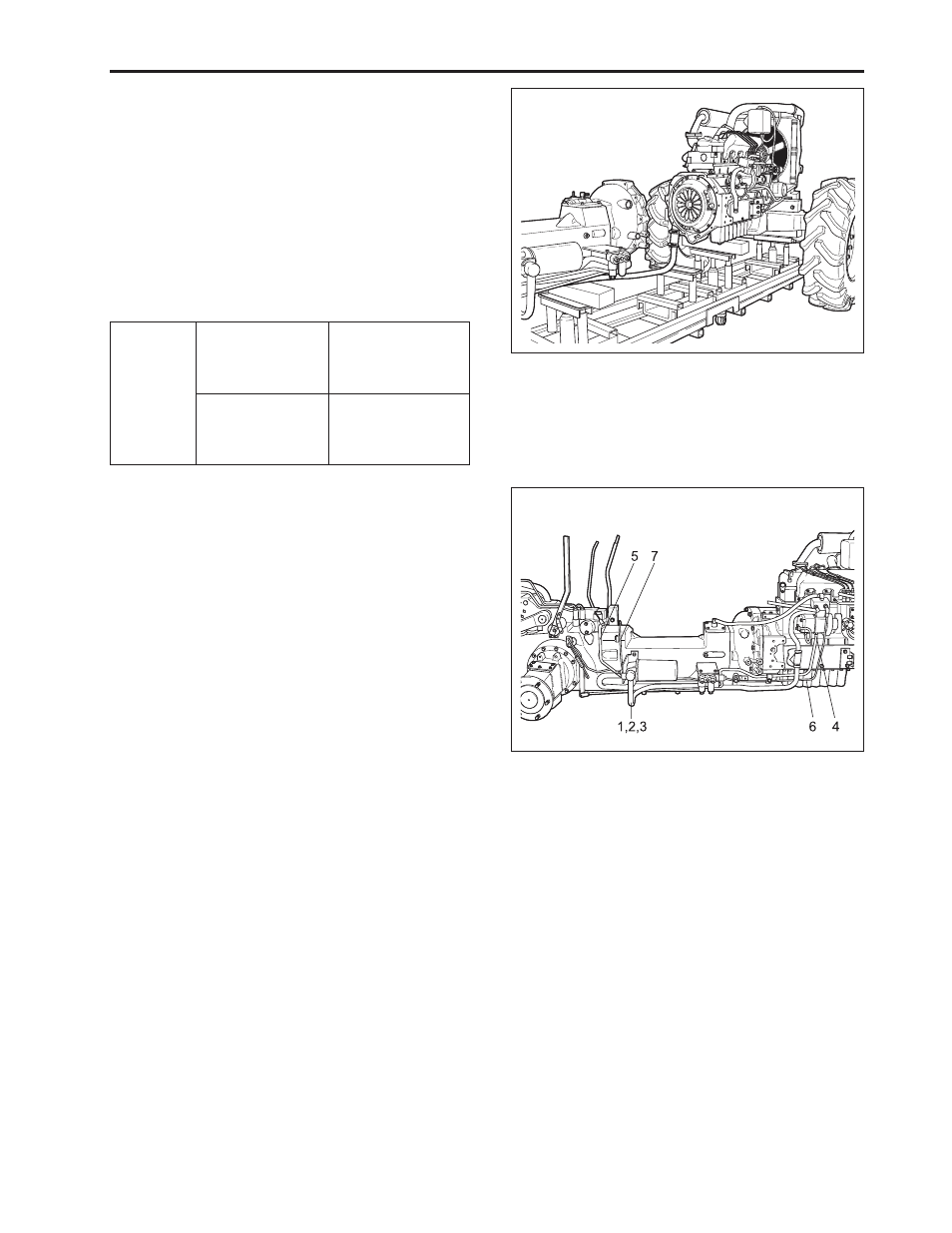

Hydraulic Pipes
1. Loosen the screws (1), bolt (2) and remove the suc-
tion pipe (3).
2. Remove the pipe (4), (5), (6), (7).
(1) Screw (5) Pipe 1
(2) Bolt (6) Pipe 2
(3) Suction Pipe (7) PTO Pipe 2
(4) PTO Pipe 1
569W723A
Separating the Engine from Clutch Housing
1. Place the jack under the clutch housing case.
2. Hoist the engine by the nylon lift strap at the tank
support.
3. Remove the engine mounting screws, and then pull
the engine to the front.
(When reassembling)
• Apply grease to the splines.
• A p p l y l i q u i d g a s k e t ( T h e r e B o n d 1 2 0 8 D o r
equivalent) to joint face of the engine and clutch
housing.
Tightening
torque Engine and
clutch Housing
mounting
Screws, nuts
Engine and
clutch Housing
mounting Stud
bolts
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
39.2 ~ 49.0 N·m
4.0 ~ 5.0 kgf·m
28.9 ~ 36.2 lbf·ft
569W722A
