CHAPTER 7 8454
7-12 D569-W02 May-2003
Hydraulic Pipes
1. Remove the brake rod (4) and suction pipe (3).
2. Remove the rubber hoss (2).
3. Slide the return hose (1).
(When reassembling)
• Reinstall the pipe clamps securely.

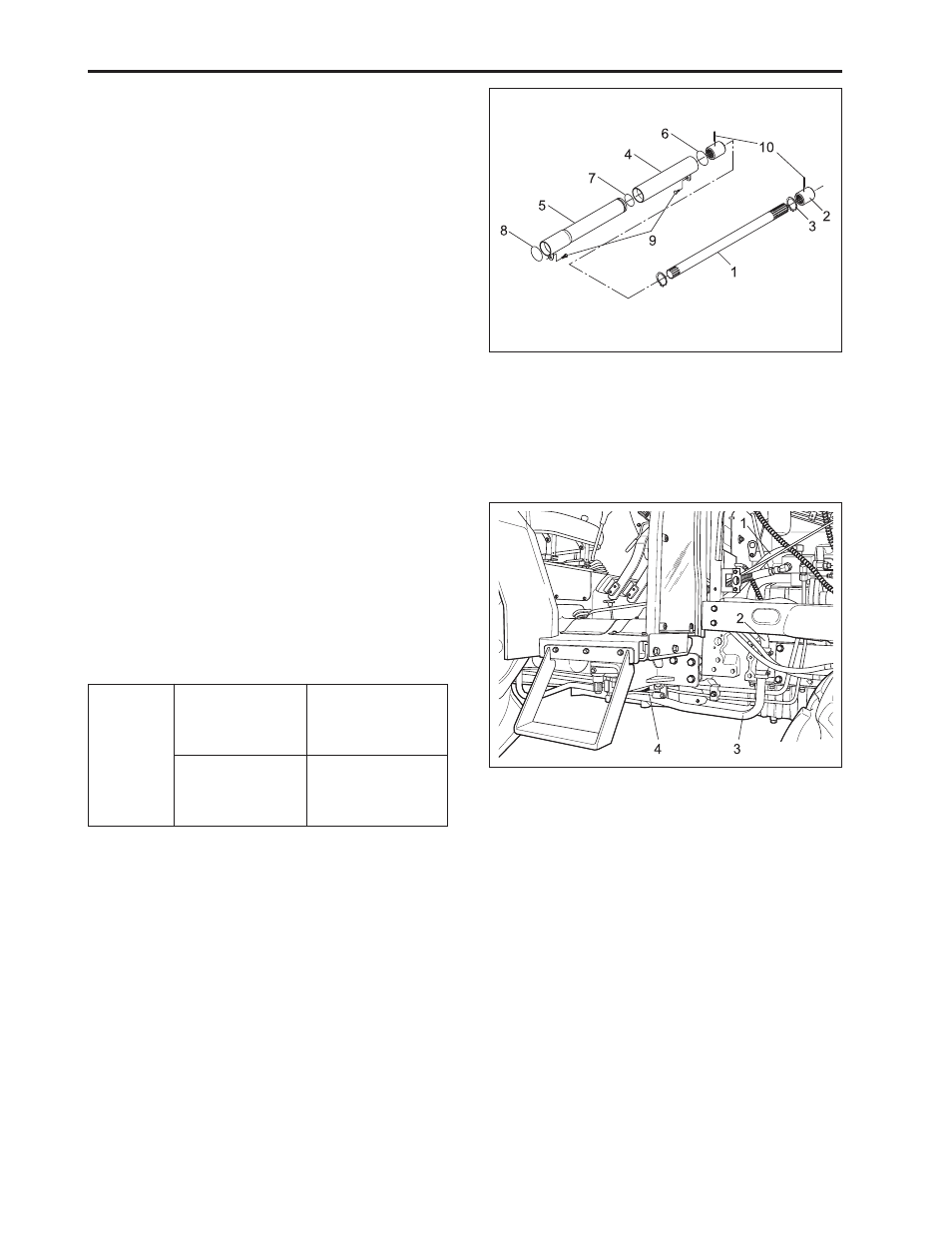

(1) Propeller Shaft (6) O-Ring
(2) Coupling (7) O-Ring
(3) Cir-Clip (8) O-Ring
(4) Propeller Shaft Cover (9) Bolt
(5) Propeller Shaft Cover (10) Spring Pin
Tightening
torque Join bolt for
delivery pipe (3)
and front
hydraulic block
Join bolt for
delivery pipe (2)
and front
hydraulic block
49.0 ~ 58.8 N·m
5.0 ~ 6.0 kgf·m
36.2 ~ 43.4 lbf·ft
34.3 ~ 39.2 N·m
3.5 ~ 4.0 kgf·m
25.3 ~ 28.9 lbf·ft
D. SEPARATING CLUTCH HOUSING
Propeller Shaft
1. Slide the propeller shaft cover, (4), (5), after remov-
ing the screws (9).
2. Tap out the spring pin (10) and then slide the cou-
pling (2) to the front.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
569W720A
569W721A
(1) Return hose (3) Suction Pipe
(2) Rubber Hose (4) Brake Rod
