Cub Cadet 8454 User Manual
Page 131
TRANSMISSION SYSTEM
4-27
D569-W02 May-2003
Shift Levers
1. Tap out the spring pins (2) of main shift rod 1 (1).
(When reassembling)
•
Tap in the spring pins (2) so that their split portion
may face forward.

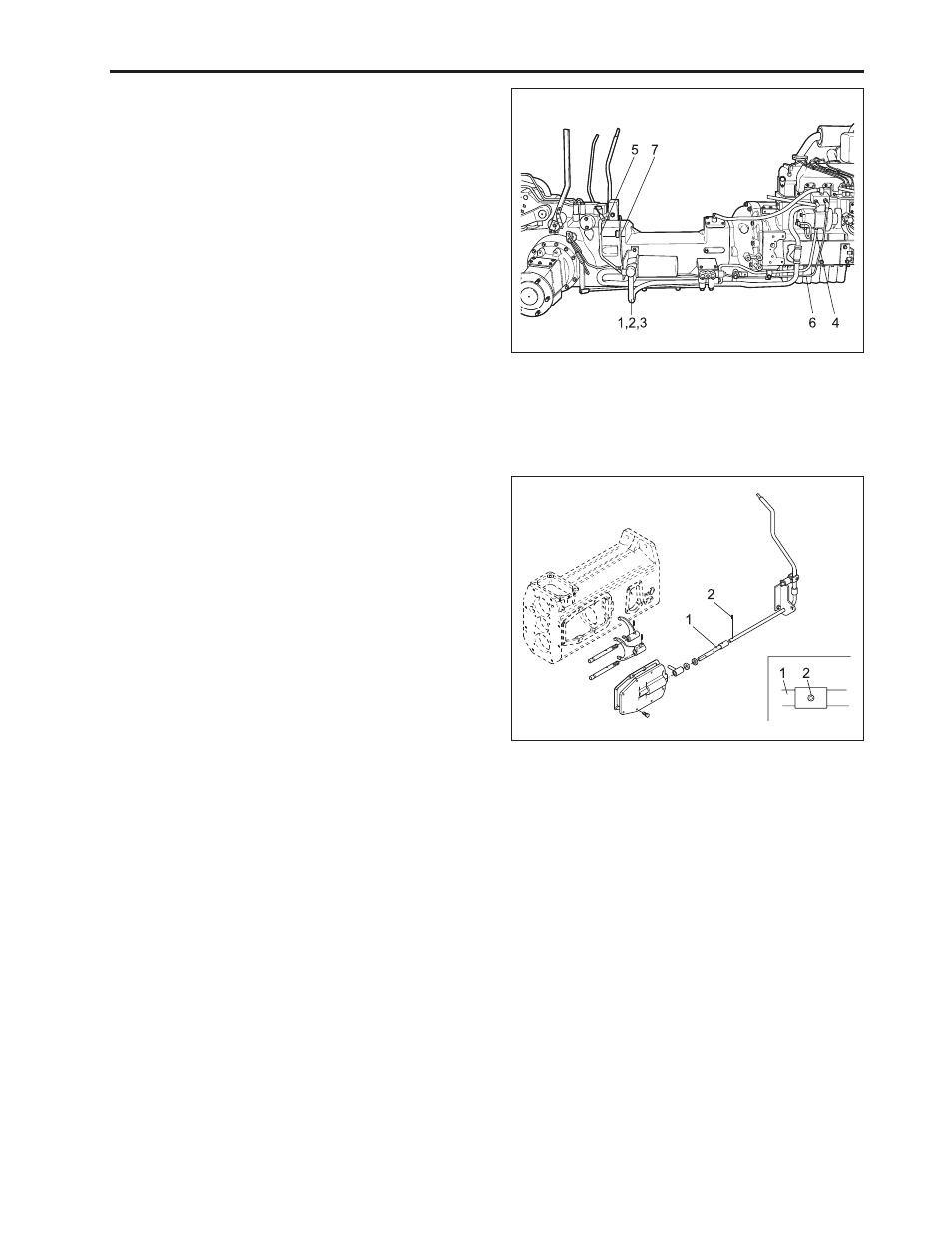

Hydraulic Pipes
1. Loosen the screws (1), Bolt (2) and remove the suc-
tion pipe (3).
2. Remove the pipe (4), (5), (6), (7).
(1) Screw
(5) Pipe 1
(2) Bolt
(6) Pipe 2
(3) Suction Pipe
(7) PTO Pipe 2
(4) PTO Pipe 1
(1) Main Shift Rod 1
(2) Spring Pins
569W440A
569W441A
