TRANSMISSION SYSTEM
4-69 D569-W02 May-2003

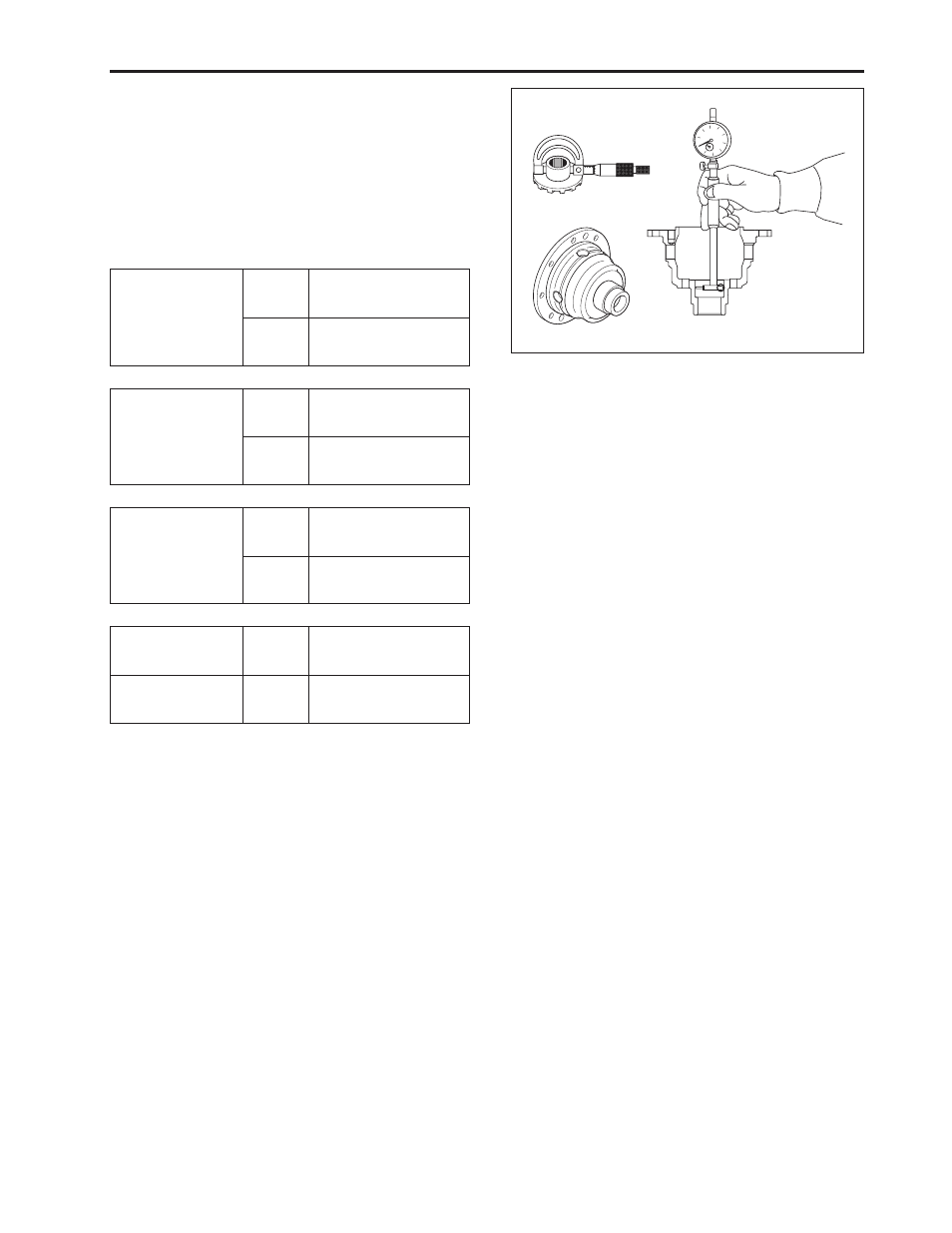

• Clearance Between Differential Case Bore
(Differential Case Cover Bore) and Differen-
tial Side Boss
1. Measure the bore I.D. of the differential case and
differential case cover.
2. Measure the differential side gear boss O.D. and
calculate the clearance.
3. If the clearance exceeds the allowable limit, replace
them.
Clearance
between differen-
tial case bore and
differential side
gear boss Factory
spec.
Allowable
limit
0.05 ~ 0.151 mm
0.00197 ~ 0.00594 in.
0.035 mm
0.0138 in.
Clearance
between differen-
tial case bore and
differential side
gear boss Factory
spec.
Allowable
limit
40.5000 ~ 40.550 mm
1.59449 ~ 1.59646 in.
40.388 ~ 40.450 mm
1.59008 ~ 1.59252 in.
Clearance between
differential case
cover bore and
differential side
gear boss Factory
spec.
Allowable
limit
0.05 ~ 0.151 mm
0.00197 ~ 0.00594 in.
0.035 mm
0.0138 in.
Differential case
cover bore I.D
Differential side
gear bore O.D
Factory
spec.
Allowable
limit
40.5000 ~ 40.550 mm
1.59449 ~ 1.59646 in.
40.388 ~ 40.450 mm
1.59008 ~ 1.59252 in.
569W4B4A
