HYDRAULIC SYSTEM
6-61
D569-W02 May-2003

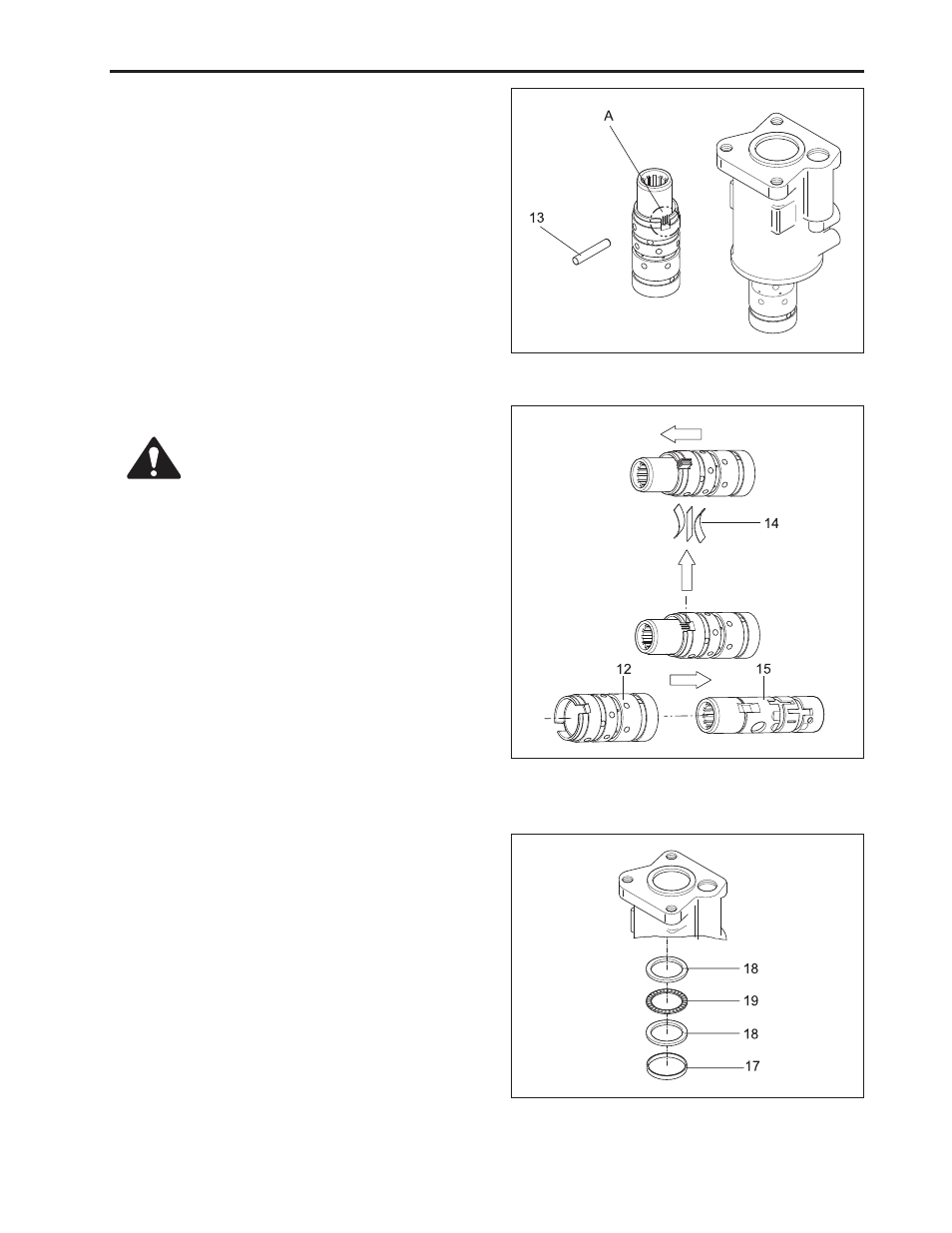

14. Take out two bearinglesses (18), needle bearing
(19) and oil seal.
Surely insert the needle bearing between the
bearingless.
569W686A
11. Take out the spool and sleeve ass’y at the oppo-
site side to the flange of the housing while push-
ing the inner spline of the spool with the thumb.
Be careful not to allow the circumference of the
sleeve to be stuck in the inner bore of the housing
this time.
569W684A
12. Take pin (13) out of the spool and sleeve ass’y.
CAUTION
569W685A
•
Since the centering spring might fly
out of the pool, surely wear goggles.
13. Push forward the spool in the sleeve a little to re-
move the centering spring out of the spool with
hand carefully.
While turning around the sleeve carefully, take it
out of the spool.
(A) Positioning Marks
(13) Pin
(17) Retainer Ring
(19) Needle Bearing
(18) Bearingless
(12) Sleeve
(15) Spool
(14) Centering Spring
