ENGINE
2-67
D569-W02 May-2003
569W2D0A

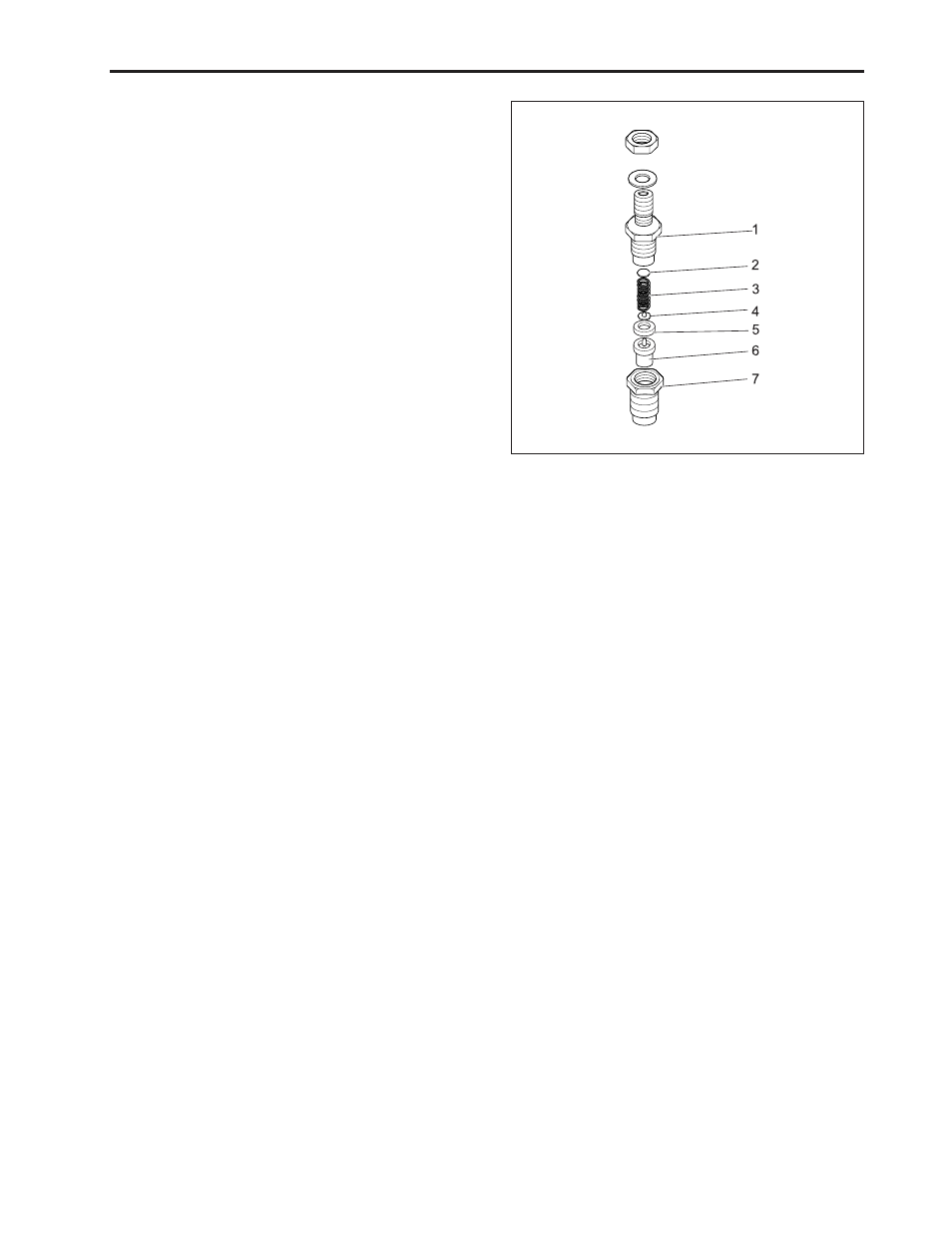

(1) Nozzle Holder
(5) Distance Piece
(2) Adjusting Washer
(6) Nozzle
(3) Nozzle Spring
(7) Nozzle Nut
(4) Push Rod
2) Injection nozzle
Nozzle Holder
1. Secure the nozzle retaining nut (7) with a vise.
2. Remove the nozzle holder (1), and take out the parts
inside.
(When reassembling)
•
Assemble the nozzle in clean fuel oil.
•
Install the push rod (4), nothing its direction.
