5.6 FRONT BRACKET
A. TO DISASSEMBLING
1. Remove mounting nut (7), bolt (6) and seal washer
(8).
2. Separate front bracket (2) from front axle support (1).
3. Remove two oil seals (5), DX bush (4) and adjust-
ing plate (3) in front bracket (2).
4. Remove grease nipple (9).
B. TO ASSEMBLE
1. Insert adjusting plate (3) into the inner bore of front
bracket (2).
2. Install DX bushing (4) with a replacing tool
3. Install two oil seals (5) with a replacing tool and
apply grease.
4. Install grease nipple (9), seal washer (8), mount-
ing nut (7) and bolt (6).
5. Install front bracket ass’y (2) on front axle support (1).
6. Apply grease to the inner bore of front bracket (2)
via grease nipple (9).
• Knock the groove of DX bushing (4)
into the nipple’s groove of front bracket
(2) aligned.
• Install the lip area of oil seal (5)
outward.

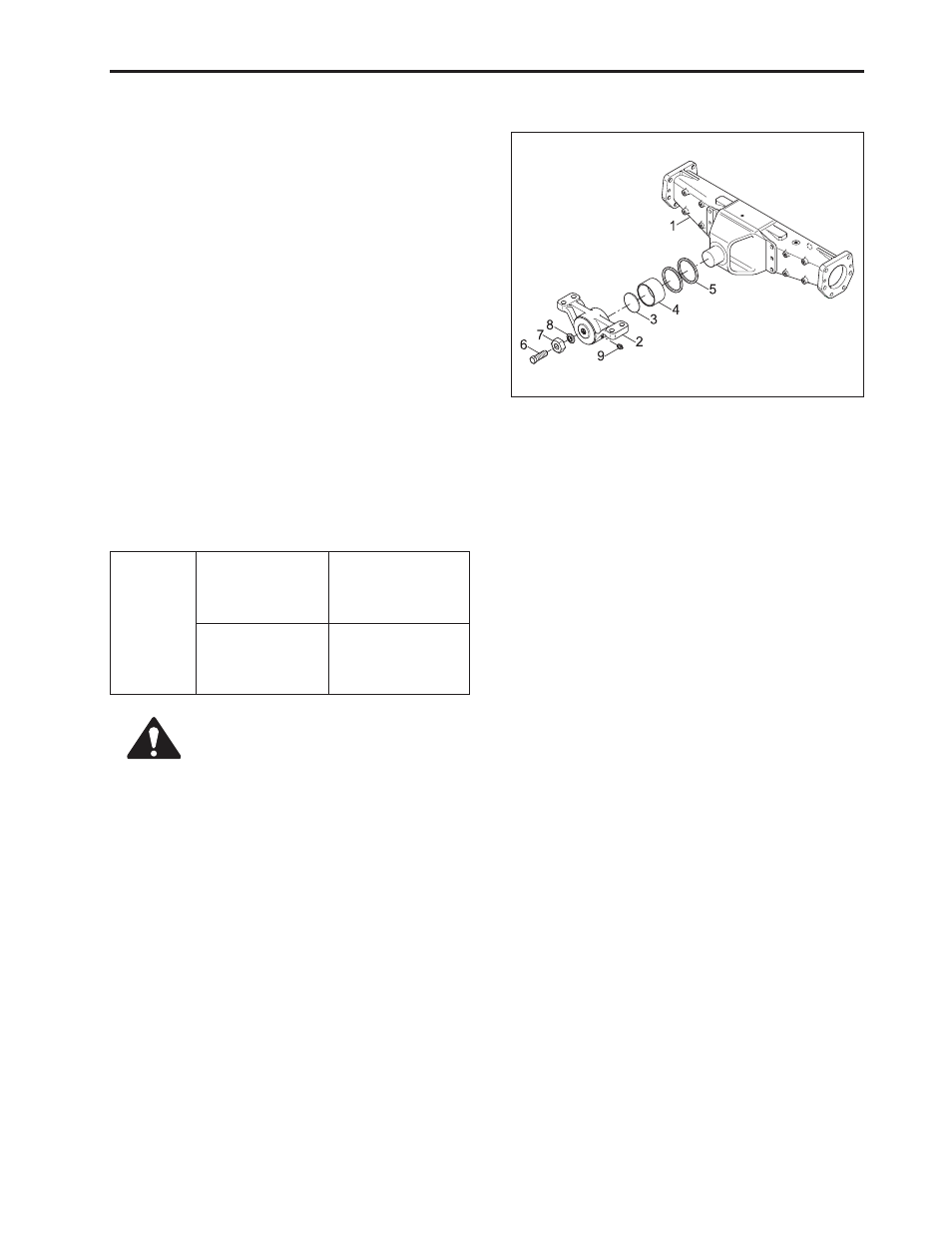

(1) Front Axle Support (6) Bolt
(2) Front Bracket (7) Nut
(3) Adjusting Plate (8) Seal Washer
(4) DX Bushing (9) Grease Nipple
(5) Oil Seal
Tightening
torque Tightening nut
(7) of the front
bracket
Tightening bolt
(6) of the front
bracket
98.1 ~ 147.1 N·m
10.0 ~ 15.0 kgf·m
72.3 ~ 108.4 lbf·ft
19.6 ~ 29.4 N·m
2.0 ~ 3.0 kgf·m
14.4 ~ 21.6 lbf·ft
