CABIN SYSTEM
9-5
D569-W02 May-2003
7. Loosen head pin and snap pin connected to main
transmission lever at left bottom of cabin and re-
move main transmission lever.
8. Remove joint pin and snap pin connected to front
wheel driving lever 1 in left lower of cabin and then
remove front wheel driving lever 2.
9. Remove differential rod and differential spring from
right lower of cabin.

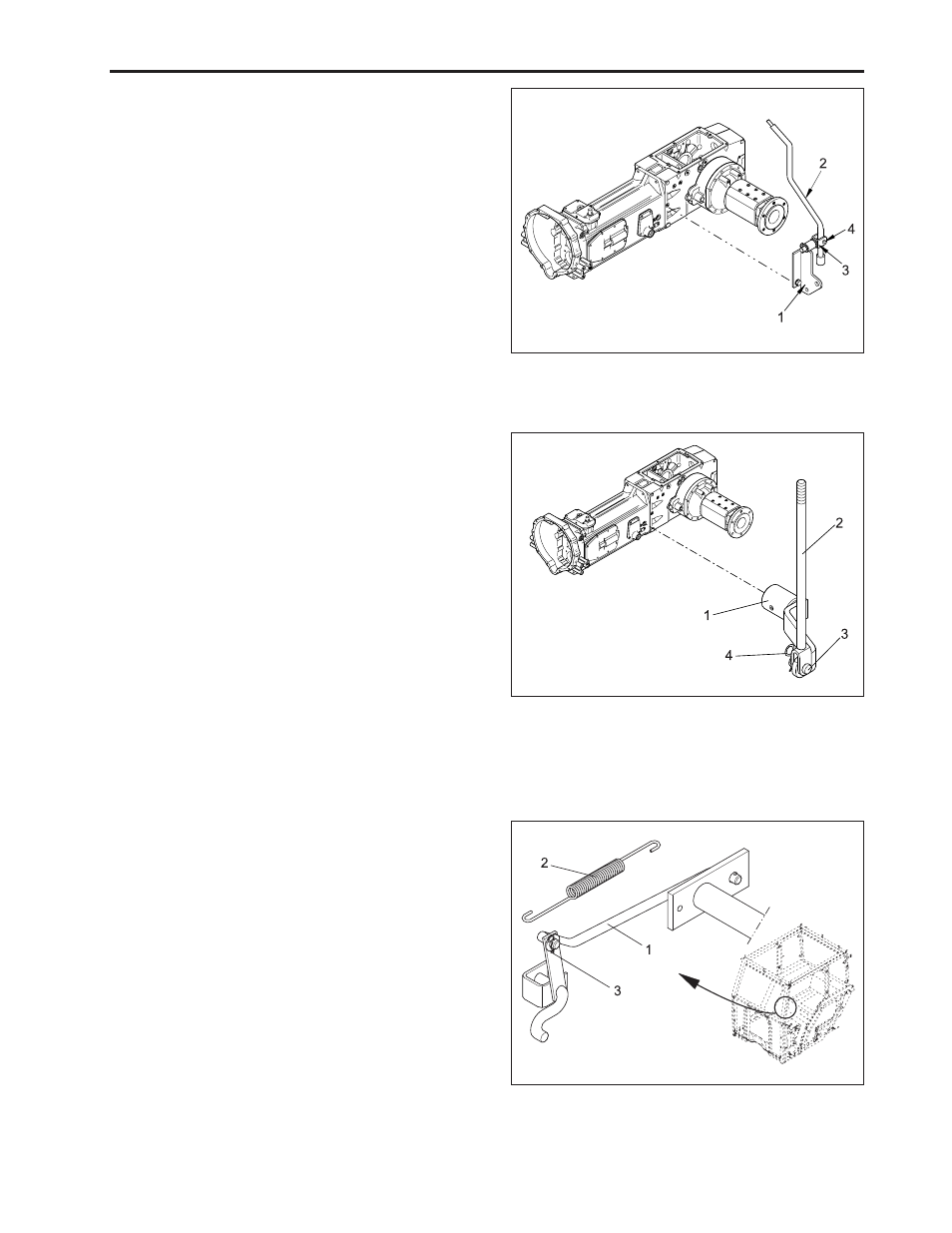

(1) Bracket, Main Shift Lever
(2) Lever, Main Shift Lever
(3) Pin, Main Shift Lever
(4) Pin, Joint
(1) Lever 1, Front Drive
(3) Pin, Joint
(2) Lever 2, Front Drive
(4) Snap Pin
(1) Rod, Differential
(3) Pin, Snap
(2) Spring
569W907A
569W908A
569W909A
