CHAPTER 4 8454
4-64 D569-W02 May-2003

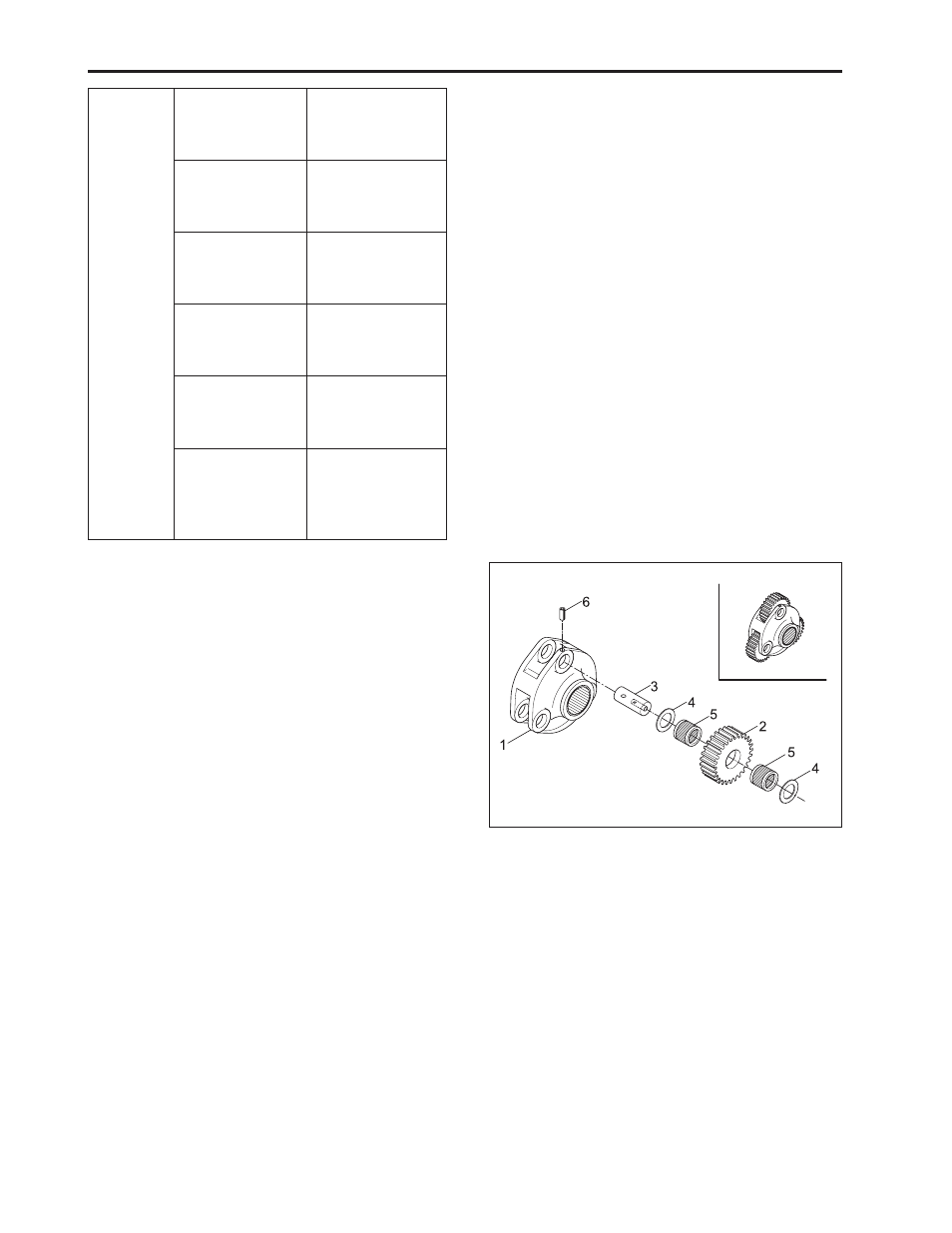

G. PLANETARY GEAR ASSEMBLY
a . To Disassembling
1. Knock three spring pins (6) to be located in plan-
etary gear shaft.
2. Draw planetary gear shaft (3) using a replacing tool
and remove thrust collar (4), needle bearing (5) and
21 planetary gear (2) (three places).
b. To Assemble
1. Insert needle bearing (5) into the inner bore of 21
planetary gear (2) place thrust collar (4) between
the both sides to be located on planetary gear sup-
port (1).
2. Insert planetary gear shaft (3) on to the hole of plan-
etary gear support (1) and locate thrust collars (4),
needle bearings (5) and 21 planetary gear (2) to
planetary gear assemble (three places) (3). Align
planetary gear support (1) with the spring pin hole
of planetary gear shaft (2) and fix spring pin (6) to
be at the same height as of the surface of the plan-
etary gear support (three places).
Tightening
torque Stud for assembly
of the rear axle
and the rim
Mounting bolt of
the bearing cover
of the rear axle
Mounting bolt of
the rear axle
assembly
Mounting nut of
the rear axle
assembly
Mounting bolt of
the 13 gear shaft
and the fixing plate
Stud for assembly
of the
transmission
case and the rear
axle case
196.2 ~ 225.6 N·m
20.0 ~ 23.0 kgf·m
144.7 ~ 166.3 lbf·ft
48.0 ~ 55.9 N·m
4.90 ~ 5.70 kgf·m
35.4 ~ 41.2 lbf·ft
77.5 ~ 90.2 N·m
7.90 ~ 9.20 kgf·m
57.1 ~ 66.5 lbf·ft
77.5 ~ 90.2 N·m
7.90 ~ 9.20 kgf·m
57.1 ~ 66.5 lbf·ft
48.0 ~ 55.9 N·m
4.90 ~ 5.70 kgf·m
35.4 ~ 41.2 lbf·ft
77.5 ~ 90.2 N·m
7.90 ~ 9.20 kgf·m
57.1 ~ 66.5 lbf·ft
(1) Planetary Gear Support
(2) Planetary Gear
(3) Planetary Gear Shaft
(4) Collar
(5) Needle Bearing
(6) Spring Pin
569W4A2A
