CHAPTER 6 8454
6-28 D569-W02 May-2003

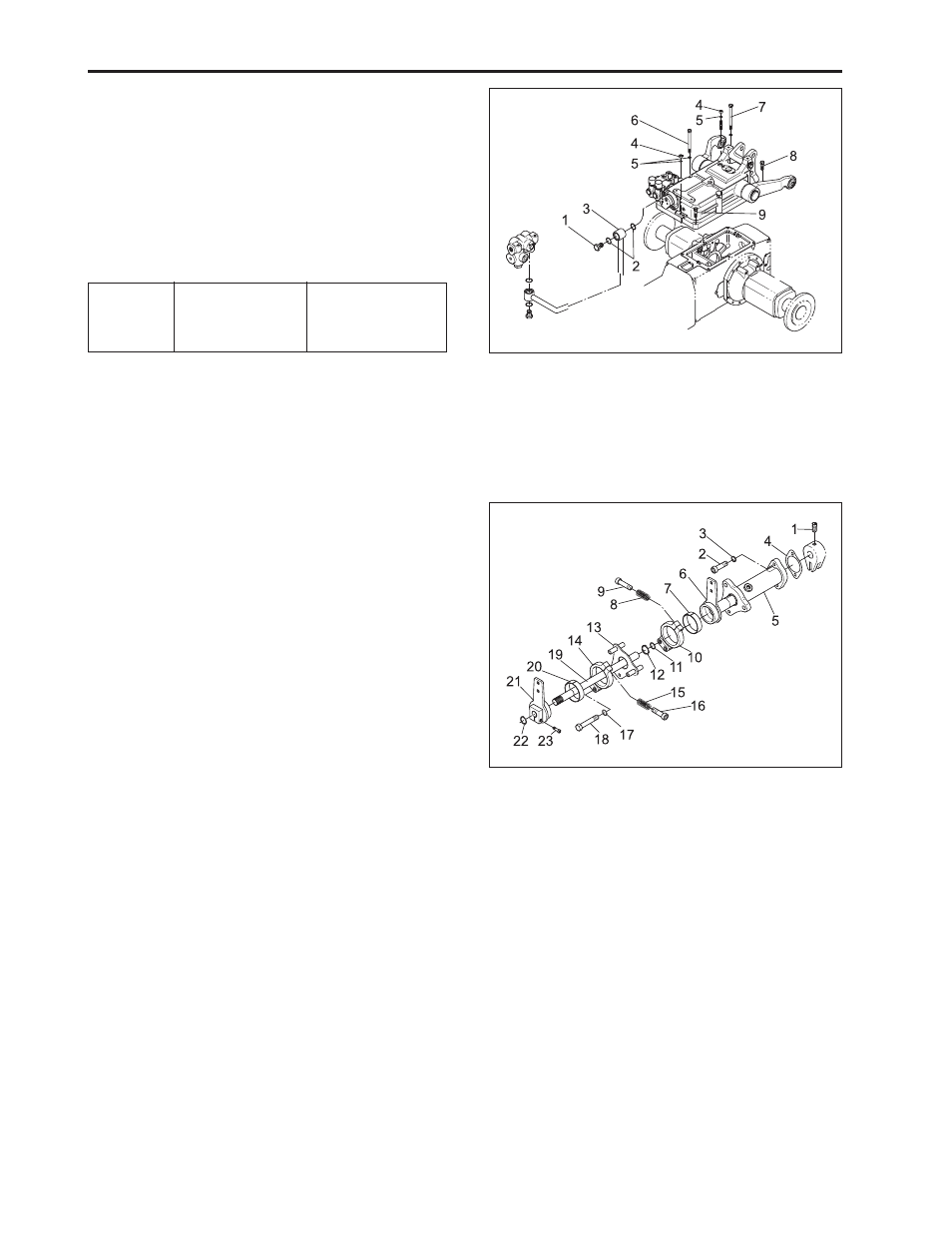

C. HYDRAULIC LIFT CONTROL LEVERS
1. Remove the screw (1).
2. Loosen and remove the bolts (2) and take out the
composed parts as a unit.
(1) Screw (13) Flange
(2) Bolt (14) Clutch Hub
(3) Lock Washer (15) Spring
(4) Seal (16) Screw
(5) Support (17) Lock Washer
(6) Pitman Arm (18) Bolt
(7) Clutch (19) Shaft
(8) Spring (20) Clutch
(9) Screw (21) Control Lever
(10) Clutch Hub (22) Snap Ring
(11) O-Ring (23) Screw
(12) Snap Ring
569W638A
(When reassembling)
Tightening
torque Hydraulic cylinder
mounting bolts
and nuts
48.1 ~ 55.8 N·m
4.9 ~ 5.7 kgf·m
35.5 ~ 41.2 lbf·ft
B. HYDRAULIC CYLINDER ASSEMBLY
1. Loosen the joint bolt (1).
2. Loosen and remove the hydraulic cylinder assem-
bly mounting bolts ((6), (7), (8), (9)), spring wash-
ers (5) and nuts (4).
3. Support the hydraulic cylinder assembly with nylon
lift strap and hoist, and then take out it.
(1) Joint Bolt (6) Bolt
(2) O-Ring (7) Bolt
(3) Delivery Pipe 2 (8) Bolt
(4) Nut (9) Bolt
(5) Spring Washer
569W636A
