TRANSMISSION SYSTEM
4-35 D569-W02 May-2003
G. FRONT WHEEL DRIVE LEVER
a. To Disassembling
1. Loosen shifter (front wheel) (5), and Disassembling
2 shift mounting steel balls (6) and spring (7).
2. Loosen stopper mounting bolt (4) and remove stop-
per (3).
3. Draw out shift arm (1) by pushing inside the middle
case.
b. To Assemble
1. Insert spring (7) and steel ball (6) into propeller
shaft 1 (8) and fix shift (front wheel) (5).
2. Insert shift arm (1) outward from the middle case to
be fixed with O-ring (2).
3. After greasing O-ring (2), install shift arm (1) into
the groove of shift (front wheel) (5).
4. Install shift arm mounting stopper (3) to be fixed
with washer mounting bolt (4).
• Replace O-ring with a new one to be
installed after greased on its surface.

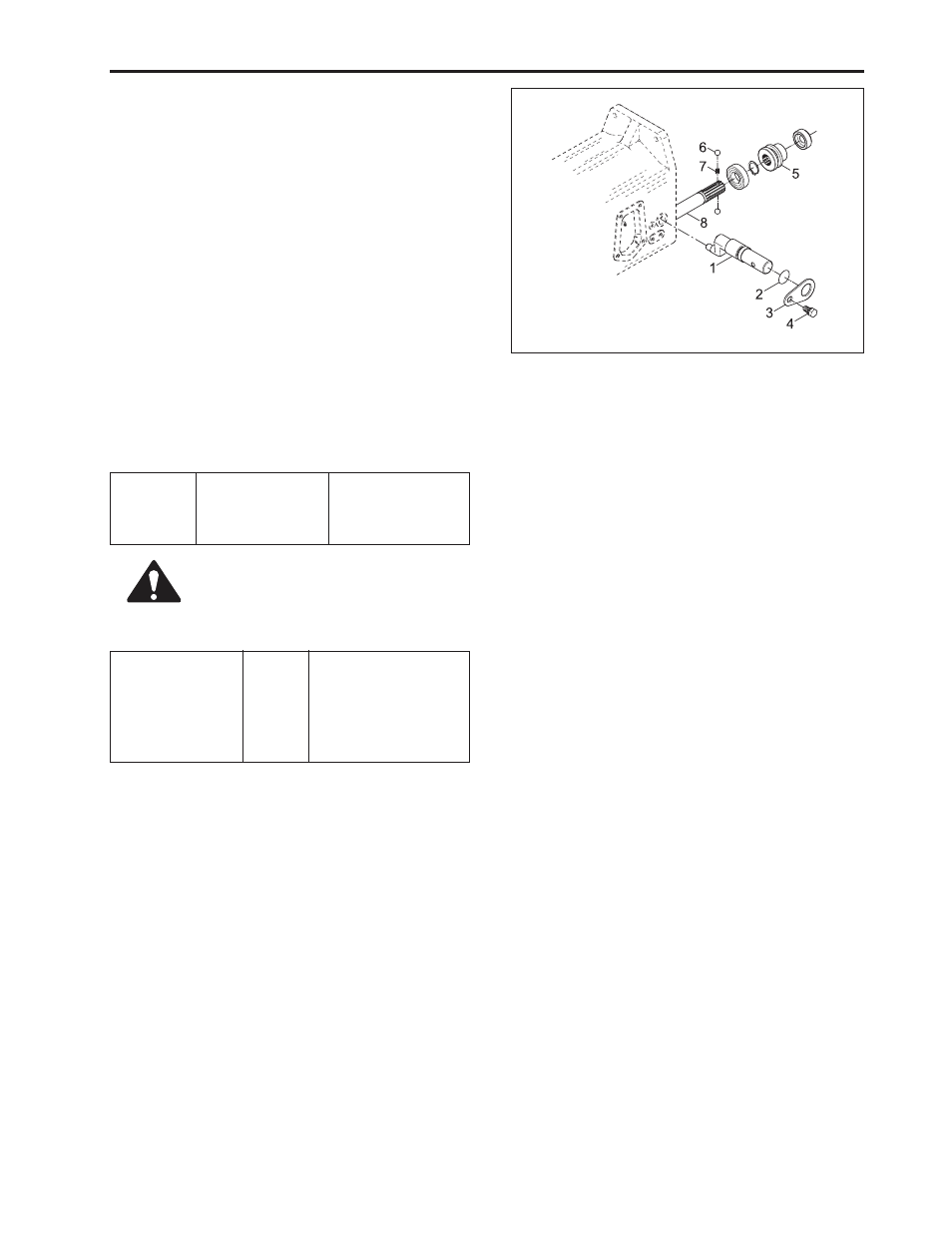

(1) Shift Arm (5) Shifter
(2) O-Ring (6) Ball
(3) Stopper (7) Spring
(4) Bolt (8) Propeller Shaft 1
Tightening
torque Tightening bolt of
front wheel shift
arm stopper
23.5 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.3 ~ 20.2 lbf·ft
• Outer diameter
of the front
wheel shift arm
• Free motion
field of shift
mounting spring
Factory
spec.
• 18.00 ~ 17.90 mm
(0.708 ~ 0.704 in.)
• 10.6 mm (0.417 in.)
CAUTION
569W451A
