HYDRAULIC SYSTEM
6-17 D569-W02 May-2003
569W615A

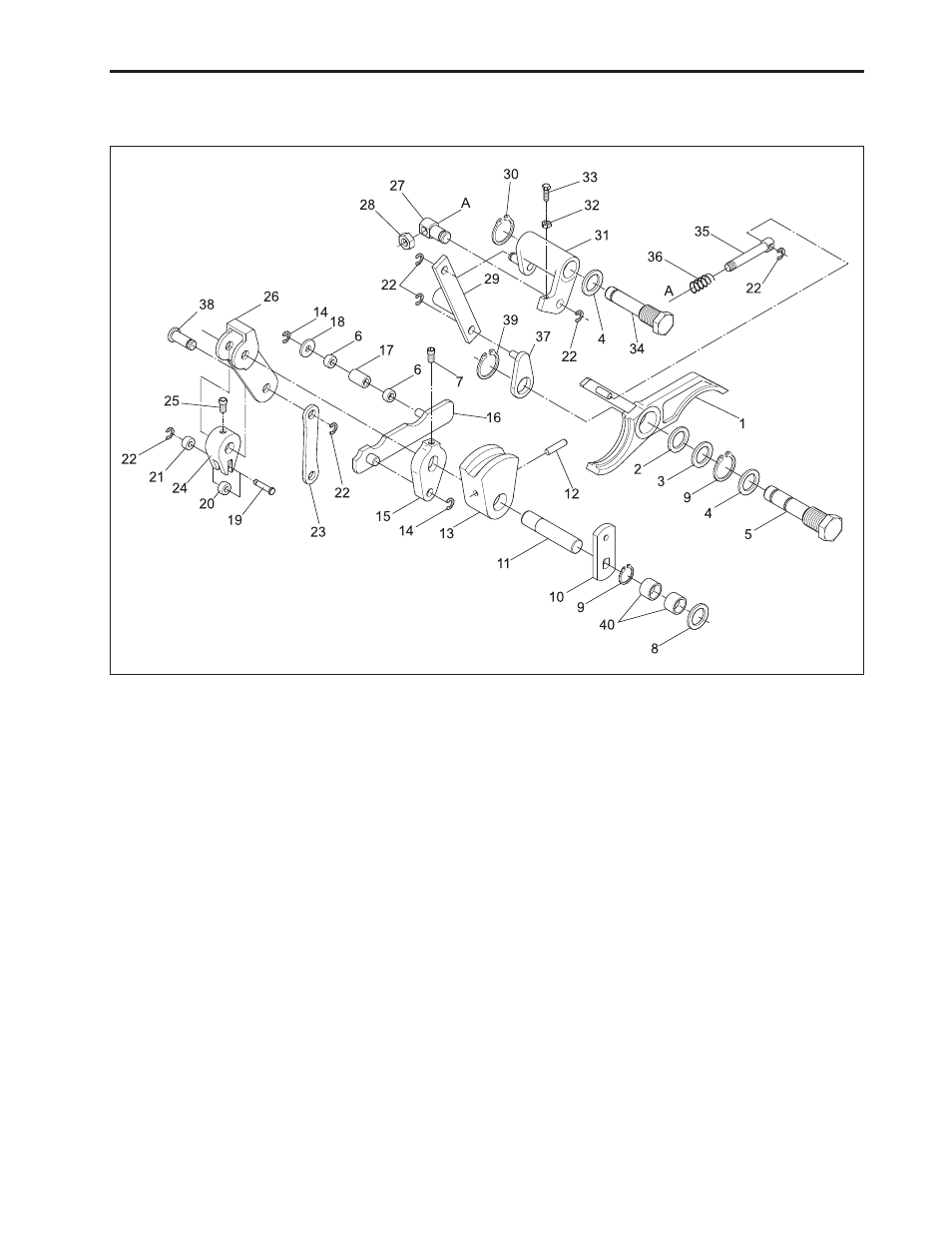

D. CONNECTION SYSTEM OF THE INTERNAL LEVERAGE
a. Structure
b. How the Internal Leverage System Works
Application is classified into three of position control,
draft control and position & draft mixed control.
(1) Lever
(2) Needle Bearing
(3) Washer
(4) Packing
(5) Pin
(6) Roller 3
(7) Lock Screw
(8) Oil Seal
(9) Snap Ring
(10) Link 4
(11) Shaft
(12) Spring Pin
(13) C a m
(14) Snap Ring
(15) Link 1
(16) Link 2
(17) Roller 4
(18) Plain Washer
(19) Pin
(20) Roller 1
(21) Roller 2
(22) Snap Ring
(23) Link 3
(24) Arm
(25) Lock Screw
(26) Cam 1
(27) Pin
(28) Nut
(29) Link
(30) Snap Ring
(31) Arm
(32) Nut
(33) Bolt
(34) Pin
(35) Pin
(36) Spring
(37) Link
(38) Pin
(39) Snap Ring
(40) Bush
