30 Monitoring Welch Allyn Propaq CS Vital Signs Monitor
10. To display all invasive pressure waveforms on one scale (when two IBP channels are
active), press RANGE to select the Range Mode.
Press RANGE again to select another scale. Five scales are available:
300/150/0
180/90/0
120/60/0
60/30/0
30/15/0
Choose the scale carefully to make sure both waveforms are displayed (if monitored).
11. To display each invasive waveform on its own scale, press RESCALE to select the
Rescale Mode.
Whenever you press RESCALE, the monitor automatically adjusts the scale for the
best appearance based on the highest and lowest pressure levels.
12. To change the displayed waveform label, press MORE to access the second IBP
menu, then press LABEL P1 (or LABEL P2).
Selectable labels (and display colors) are:
P1 red default label
P2 yellow default label
ART red arterial
PA yellow pulmonary artery
CVP blue central venous pressure
ICP white intracranial pressure
UA red umbilical artery (NEO mode only)
UV blue umbilical vein (NEO mode only)

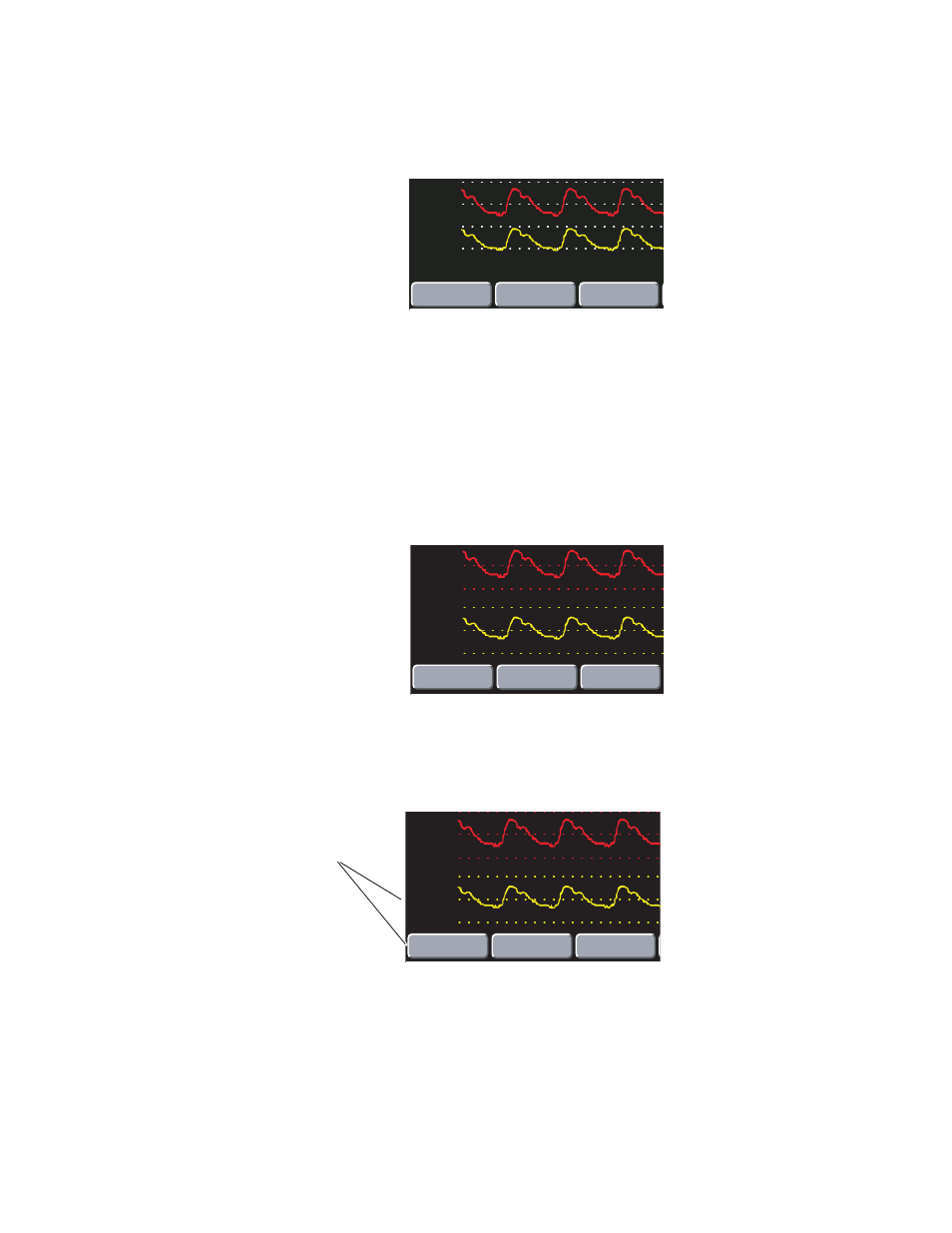

Range Mode displays both
waveforms on one scale.
0
P
R
S
N
V
RANGE RESCALE ZERO P 1
90
130
100
70
30
15
0
P
2
P
1
RANGE RESCALE ZERO P1
Rescale Mode displays each
waveform on its own scale.
130
100
70
30
15
0
P
A
A
R
T
LABEL
P 1
FORMAT
P 1
LABEL
P 2
LABEL selects alternate labels.
