Directions for Use General information 7

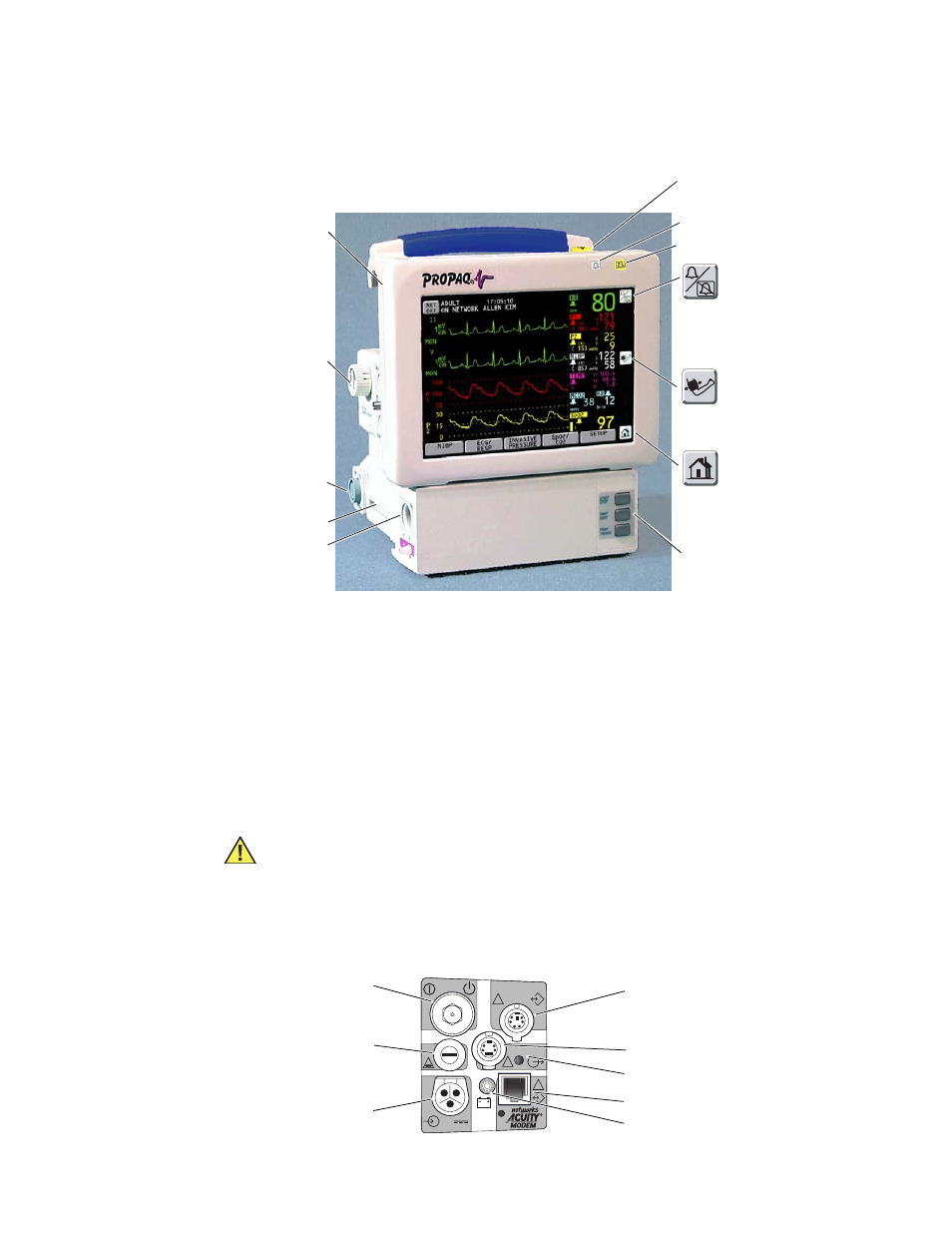

Controls and connectors
Touch-screen controls
The front panel touch-screen provides five softkeys along the bottom and three
icon-labeled keys along the right side. An Acuity
® NET OFF key is displayed in the upper
left corner if the monitor is connected to an Acuity system. These keys allow control of all
monitoring and setup functions.
System control and connectors (right side panel)
Mainstream CO
2
Option
Nurse Call Option
Printer Buttons
Alarm(s) Off Light
Alarm Light
Sidestream CO
2
Option
Printer Option
SpO
2
Option
Starts or stops NIBP reading
Silence/Reset
Returns the display to the
Main Menu
Silences alarm tone for 90
seconds or re-enables alarm
tone (if active)
Start/Stop NIBP
Home
Yellow antenna cap indicates
Wireless Propaq CS
Note Avoid pressing more than one touch-screen key at a time. Touching more than
one key area at a time can cause the touch-screen to misinterpret the command
and respond to the wrong key.
Caution Do not touch the screen with a sharp object such as a pen or pencil.
Sharp objects can damage the touch-screen. Use your finger to press the
touch-screen keys.
DEFIB SYNCHRO MONITOR
EKG x 1000
!
3A
2AG
!
!
!
12-28V, 3A
Input Fuse
On/Off Switch
Power Input Connector
Defib Sync Connector
Contact Welch Allyn technical support for
information (for specifications, see
page 97)
Real-time ECG Output Connector
Battery Charging Light
Speaker
Connector for Acuity or Modem-Propaq
