Rockwell Automation Flex/WebPak 3000 DC Drive ControlNet, Network Communication Board, 915FK2101 User Manual
Page 48
6-4
ControlNet Network Communication Option Board For Use With FlexPak 3000 and WebPak 3000 DC Drives
In the project tree, choose Controller Properties and Controller Communications. Set
the appropriate Driver, Node and Path for Communications. The Node and Path must
be the ControlNet Mode of the 1747-KFC15 module. After applying all settings,
download to the processor.

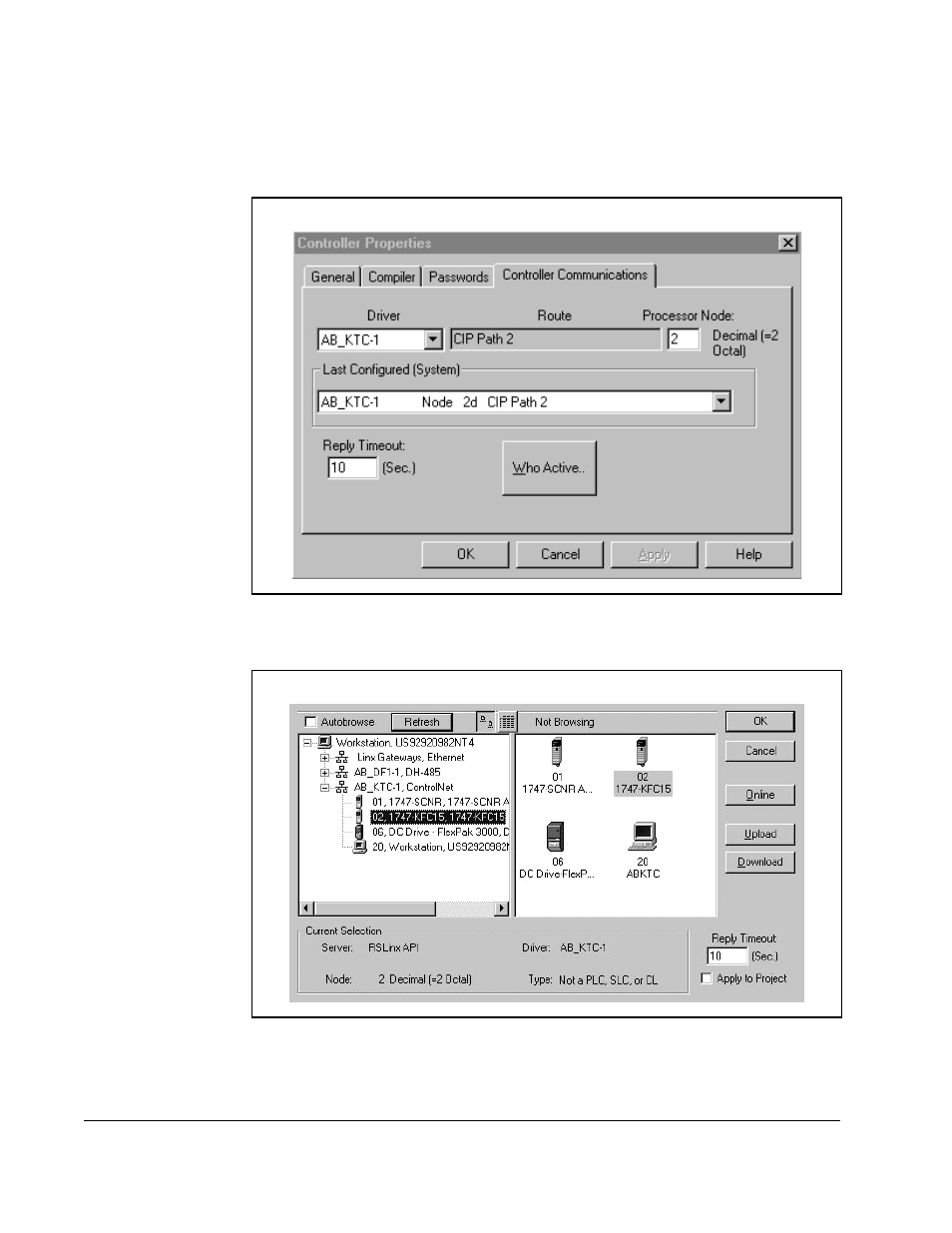

Figure 6.3 – Controller Properties: Controller Communications
Figure 6.4 – 1747-KFC15 Set Up
