Rockwell Automation Flex/WebPak 3000 DC Drive ControlNet, Network Communication Board, 915FK2101 User Manual
Page 44
5-10
ControlNet Network Communication Option Board For Use With FlexPak 3000 and WebPak 3000 DC Drives
Step 19. The Attention symbol on the RSLogix 5000 connection tree will disappear if
the network has been configured properly. You are now ready to develop
your ladder logic program.

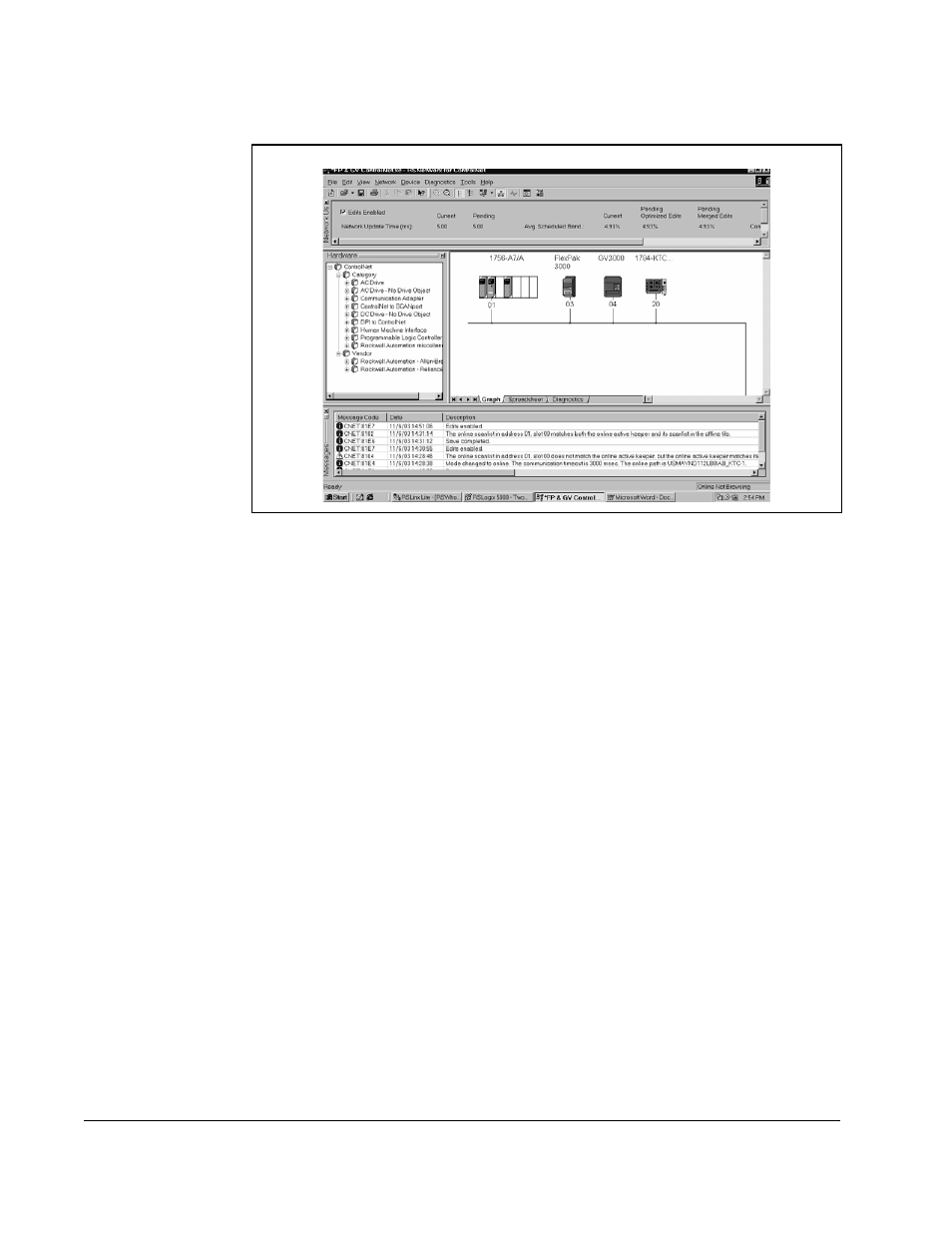

Figure 5.18 – RSNetWorx for ControlNet Screen
