5-8 ControlNet Network Communication Option Board For Use With FlexPak 3000 and WebPak 3000 DC Drives
Step 13. The configured node (“FlexPak 3000” in this example) now appears under the
1756-CNB module in the I/O Configuration folder.
Step 14. Repeat the previous steps for each additional node you need to configure.
Step 15. In the Data Types folder, click on the Module-Defined sub-folder. When you
create a module, module-defined data types and tags are automatically
created. These tags allow you to access the Input and Output Data of the
module via the controller’s ladder logic.

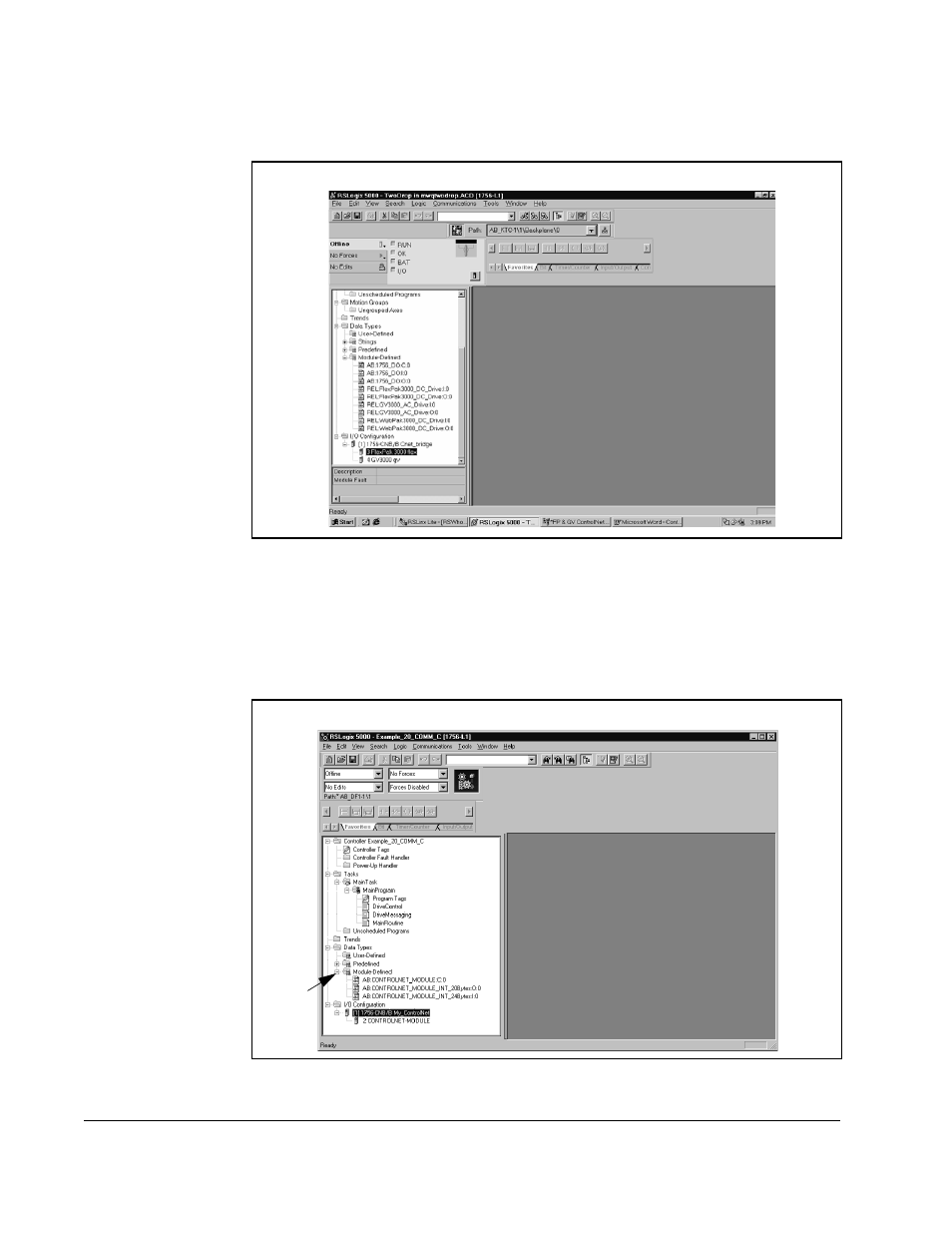

Figure 5.14 – RSLogix: Configure Additional Nodes Screen
Figure 5.15 – RSLogix 5000: Module-Defined Screen
