Rockwell Automation 284D On-Machine ArmorStart Accelerator Toolkit User Manual
Page 94

94
Publication IASIMP-QS015C-EN-P
Chapter 5
Faceplate Logix Integration

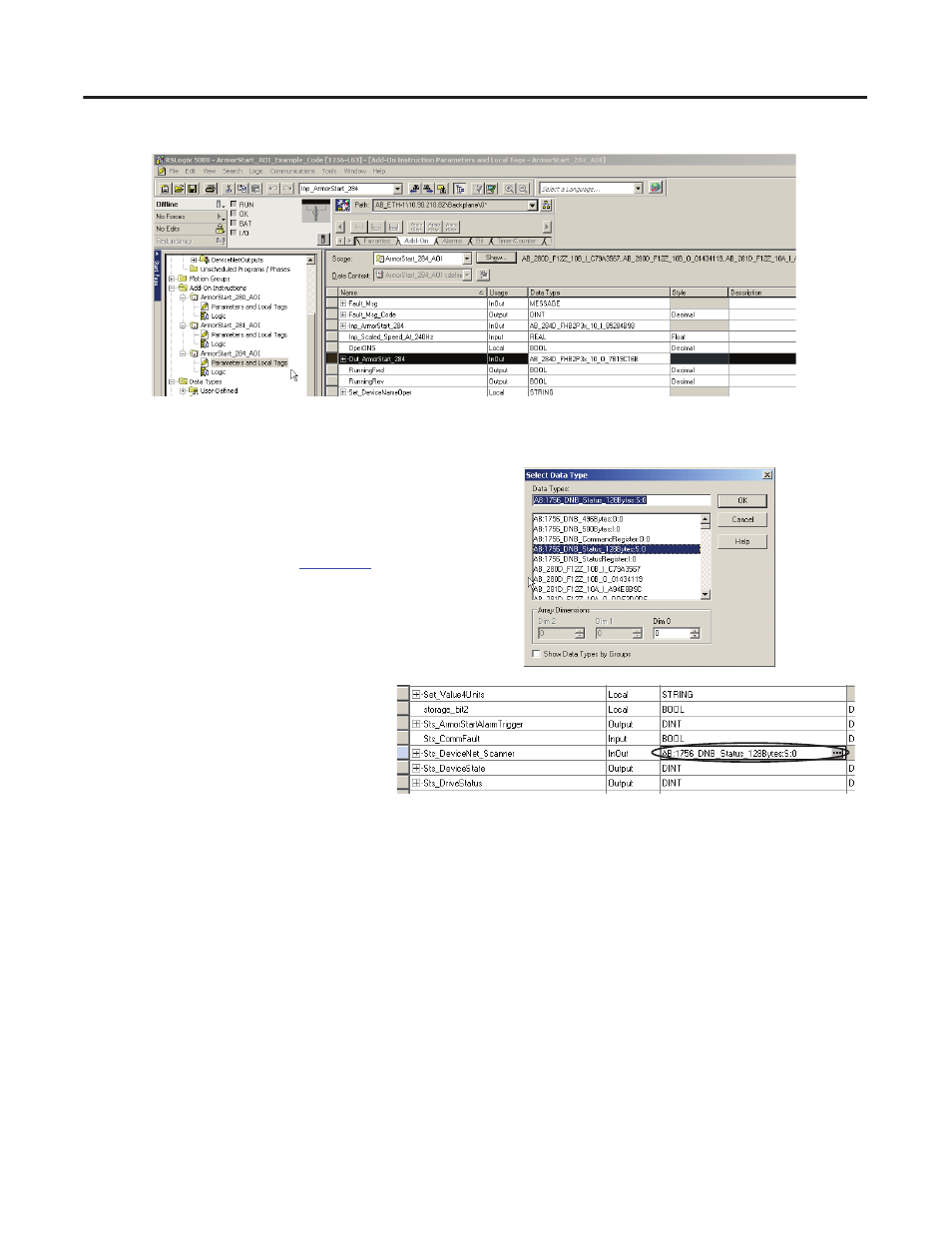

The Data Type field updates. This example shows an ArmorStart 284 output tag’s data type.
9. Select the Sts_DeviceNet_Scanner tag and click the browse button to display the data type field.
The Select Data Type dialog box appears.
10. Browse to the status data type that matches the DNB
scanner module data type that was created when you
configured the scanner in
11. Click OK.
The Data Type field updates. This
example shows a DeviceNet Scanner
status tags’ data type.
12. Close Parameters and Local tags when finished.
