Add Alarm History Faceplate
The ME Alarm History Faceplate files let you quickly load and configure a pre-configured Alarm History
display or faceplate for FactoryTalk View Machine Edition software. The Alarm History Faceplate works in
conjunction with the individual ME_ArmorStart_Faceplates, ME_PowerFlex_Faceplates/AOIs,
ME_Kinetix_Faceplates/AOIs, and ME_E3 Plus_Faceplates/AOIs, and provides an Alarm History of all of
the device alarms and warnings that are configured to its alarm triggers. The Alarm History Faceplate files
include pre-configured alarm triggers and messages for the ArmorStart devices, Kinetix Motion Axis, and E3
Plus Overload Relay family of devices.
In this example, an Alarm History Faceplate is displaying alarms/faults from ArmorStart devices (Motor 1
and Motor 2). The pre-configured alarm messages include an embedded string tag that is updated by the
individual ArmorStart faceplate AOI files when their specific alarms are triggered.

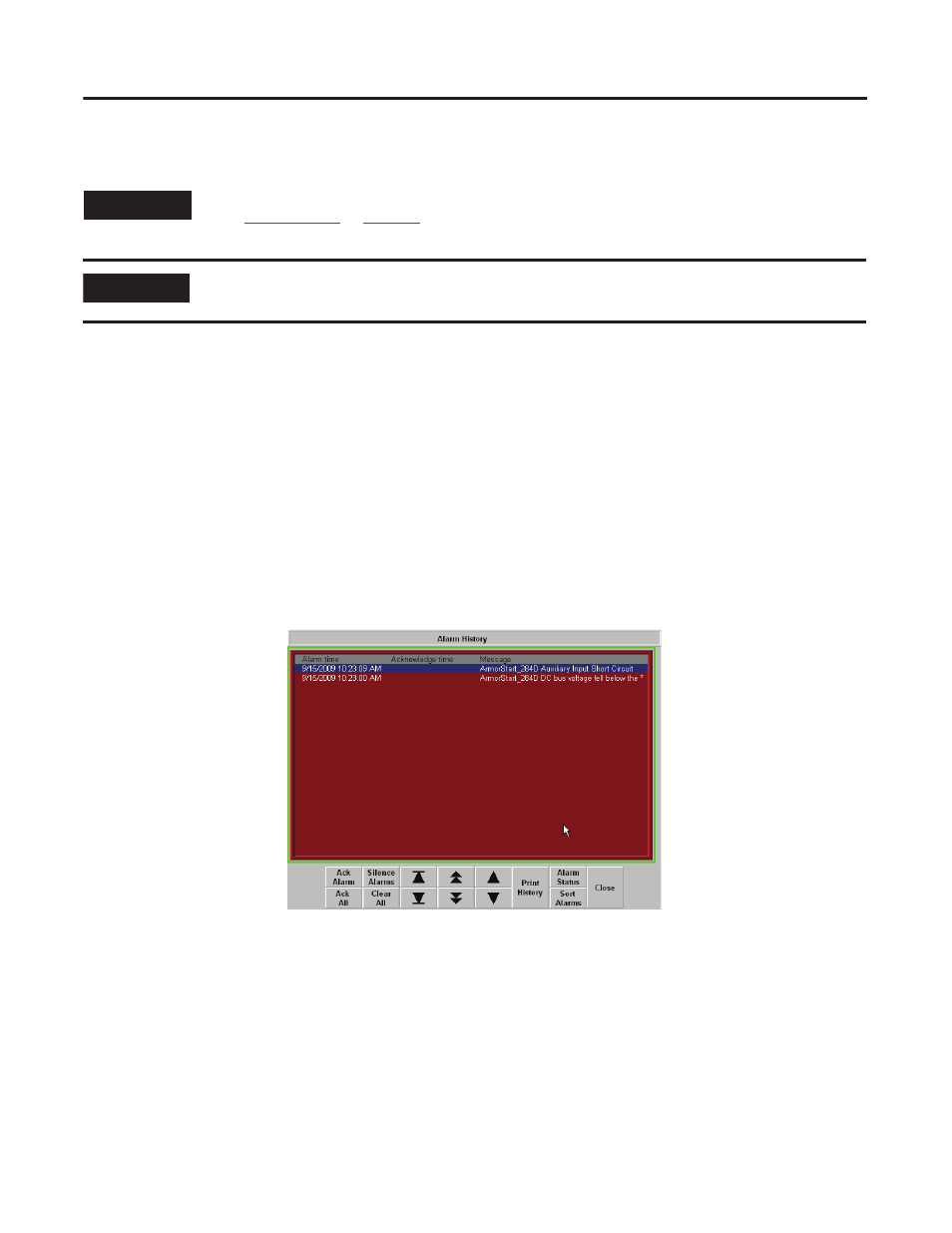

Example of Alarm History Status Faceplate
TIP
This is an optional step and necessary only if intend to use the Alarm History Faceplate. To skip this step,
go to
IMPORTANT
In order to use the Alarm History faceplate into your application, you must have PanelView Plus terminal
that supports 800x600 window size.
