FactoryTalk View Integration
Chapter 6

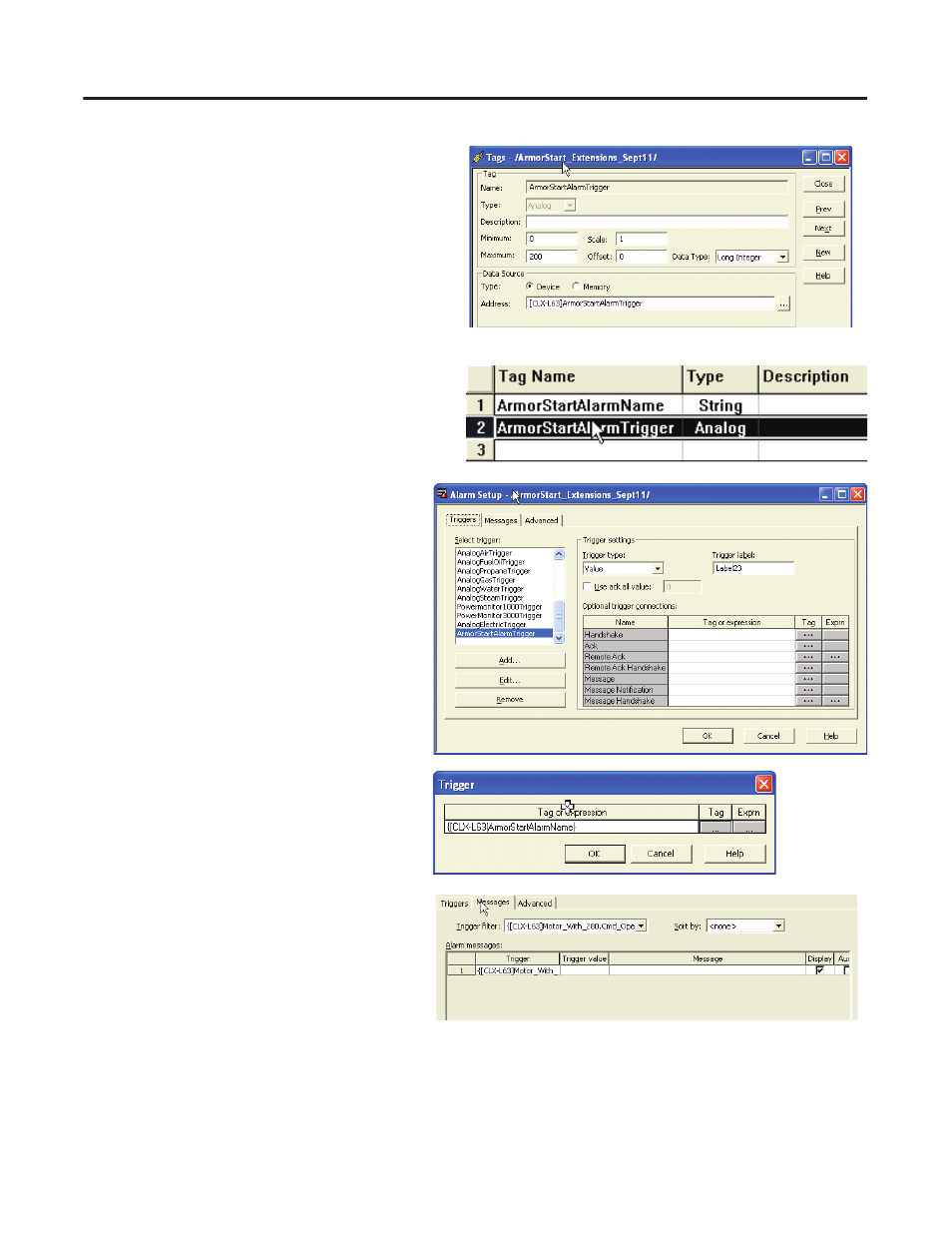

Example of an ArmorStartAlarmTrigger tag
assigned to a tag named
ArmorStartAlarmTrigger in the controller
identified by the Device Shortcut L63.
A Summary of all possible FactoryTalk View
tags that may need to be created. Only the tags
for the devices actually used in Alarm History
faceplate need to be created.
10. Add additional Alarm Trigger tags and
Alarm Messages for Devices without
Pre-configured Device Faceplates to your
Alarm History display.
a. Open the Alarm Setup.
b. Click Add.
A Trigger tag is added.
c. Using the Tag browser, select the tag in
your controller you will want to use to
trigger an alarm message.
d. Click OK.
e. Click the Message tab.
