Device tag test setup – Rockwell Automation 284D On-Machine ArmorStart Accelerator Toolkit User Manual
Page 72

72
Publication IASIMP-QS015C-EN-P - August 2011
Chapter 3
ArmorStart DeviceNet Configuration
Device Tag Test Setup
The tags used in this test procedure apply to the ArmorStart 284D device. The tags for the other ArmorStart
devices are different.
Follow these steps to make sure the scanner is in Run mode.

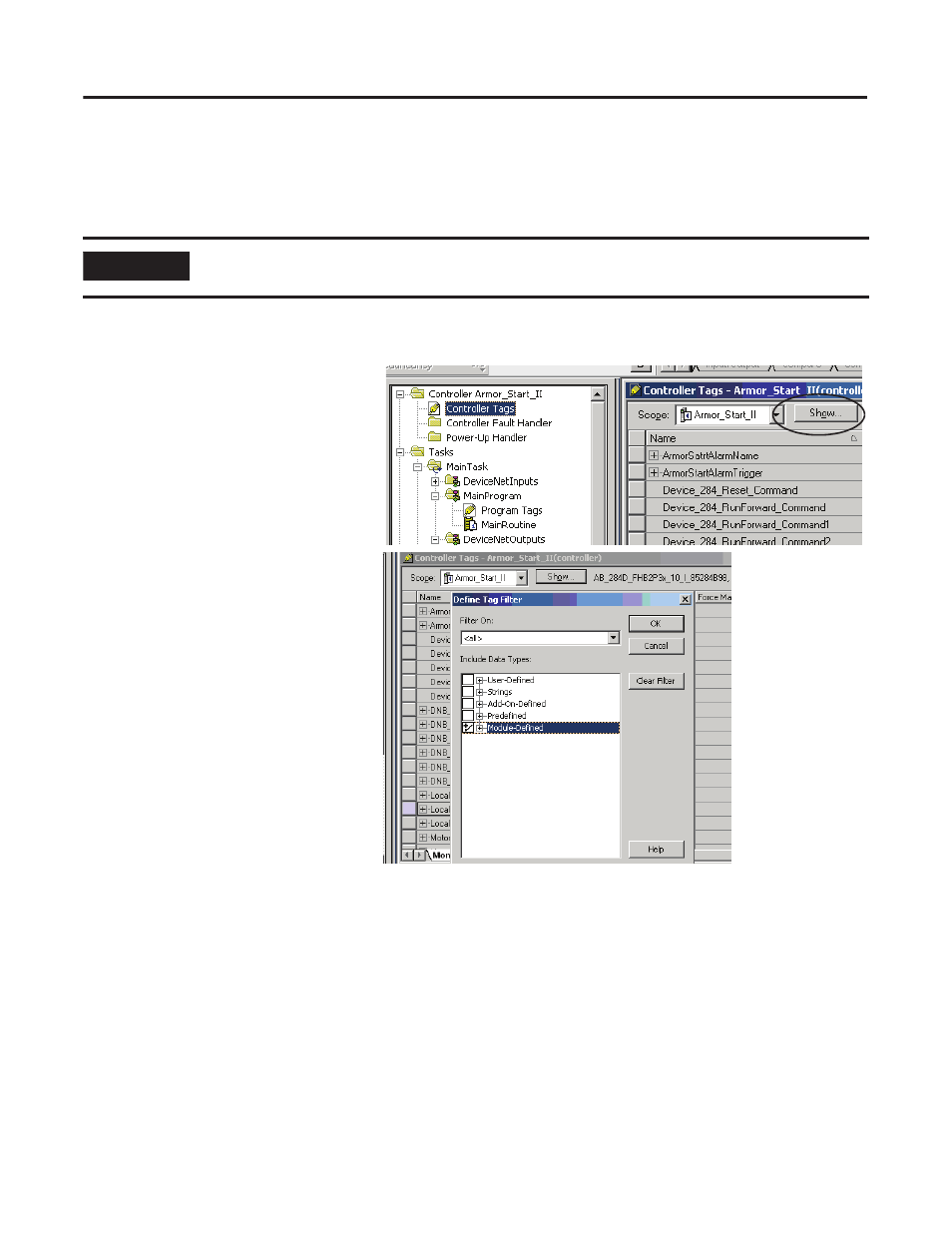

1. Double-click Controller Tags, then
click Show in the Controller Tag
dialog box on the right.
2. In the Define Tag Filter dialog box
clear all Data Types except
Module-Defined.
3. Click OK.
DNBT Scanner module
(DeviceNet) tags for input, output
and status, are listed.
IMPORTANT
Before you begin the test, make sure the DeviceNet Scanner Module (DNBT) on the controller is set to Run.
