Chapter 2
System Layout and Wiring

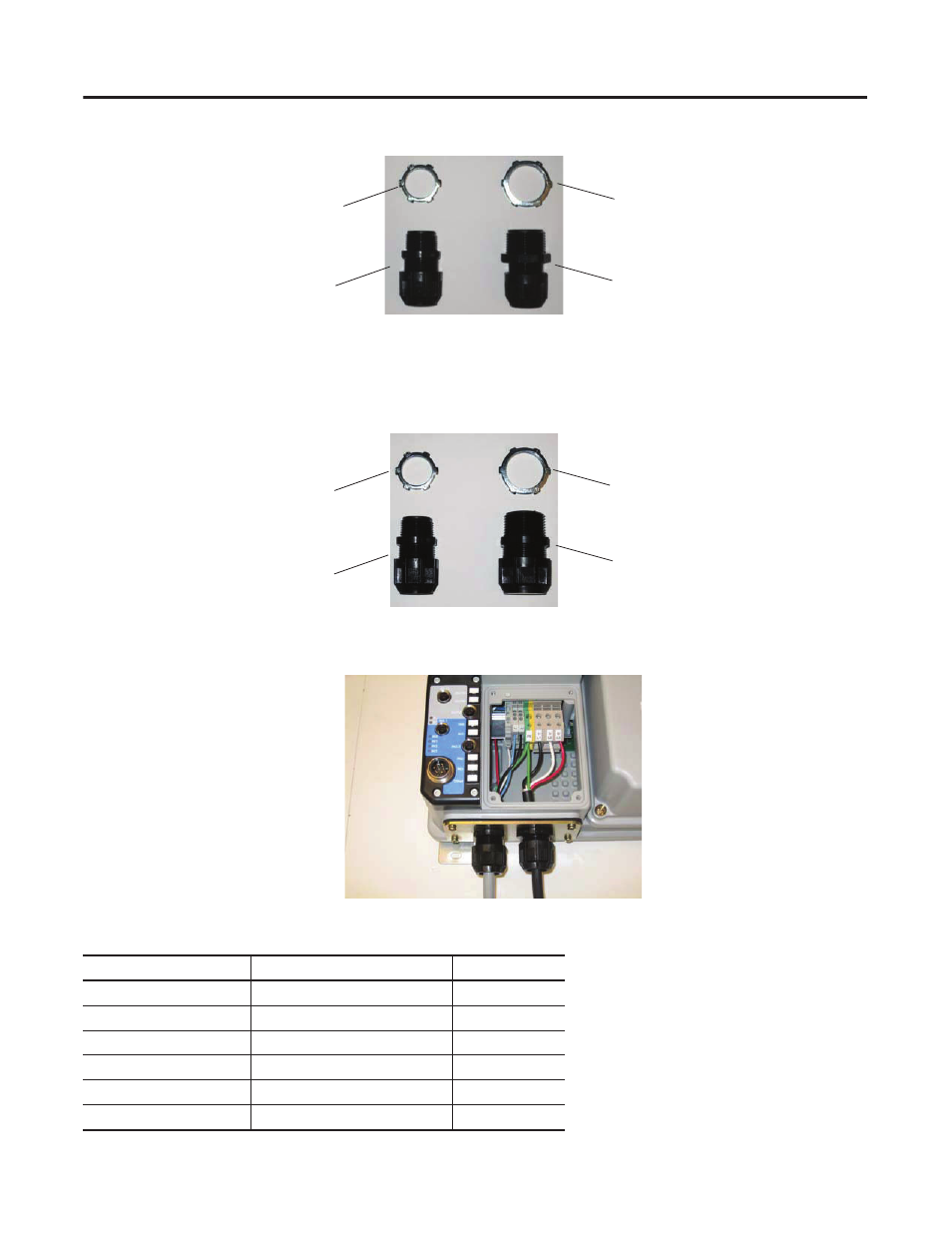

Cord Grips for ArmorStart Devices with 10 A Short-circuit Protection Rating
Cord Grips for ArmorStart Devices with 25 A Short-circuit Protection Rating
Connector
Terminal Designations
Terminal Designation
Description
Color Code
A1(+)
Control power input
Blue
A2(-)
Control power common
Black
PE
Ground
Green/Yellow
1/L1
Line power phase A
Black
3/L3
Line power phase B
White
5/L5
Line power phase C
Red
3/4 in. Lock Nut
1 in. Lock Nut
Thomas & Betts Cord Grip
Part Number 2931NM
3/4 in. Stain Relief Cord Connector
0.78...1.42 cm (0.31...0.56 in.)
Used with Control Power Media
Cordset - Example Catalog Number
889N-M65GF-M2
Thomas & Betts Cord Grip
Part Number 2940 NM
1 in. Stain Relief Cord Connector
0.78...1.42 cm (0.31...0.56 in.)
Used with Three-phase Power Media
Cordset - Example Catalog Number
280-PWR22G-M1
3/4 in. Lock Nut
1 in. Lock Nut
Thomas & Betts Cord Grip
Part Number 2931NM
3/4 in. Stain Relief Cord Connector
0.78...1.42 cm (0.31...0.56 in.)
Used with Control Power Media
Cordset - Example Catalog Number
889N-M65GF-M2
Thomas & Betts Cord Grip
Part Number 2942 NM
1 in. Stain Relief Cord Connector
1.75...2.41 cm (0.70...0.95 in.)
Used with Three-phase Power Media
Cordset - Example Catalog Number
280-PWR35G-M1
