20
Publication IASIMP-QS015C-EN-P - August 2011
Chapter 1
Hardware Selection

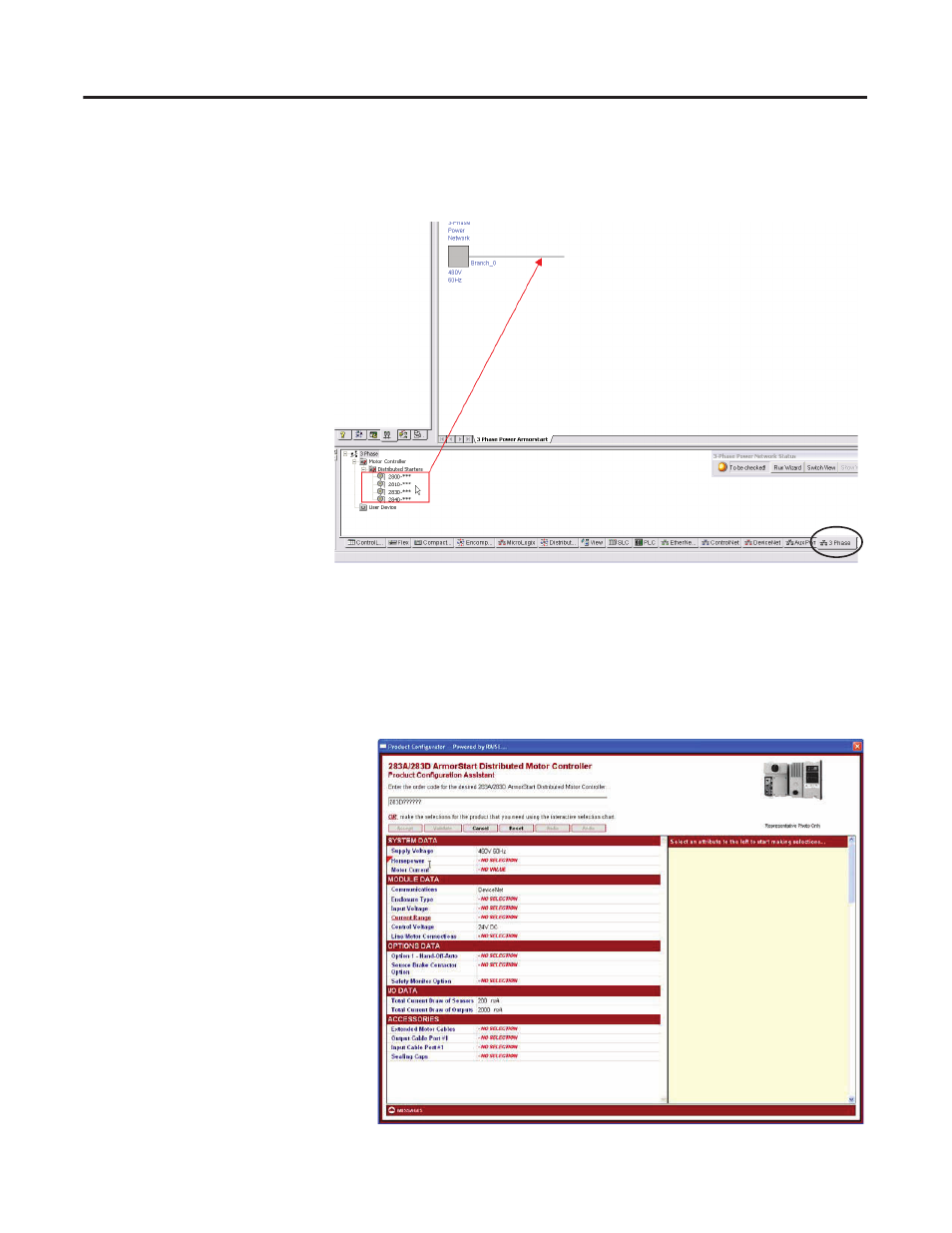

Add Device to a Branch (Three-phase Power Network)
Follow these steps to add a device to a branch of a three-phase power network.
1. Click the 3 Phase tab.
2. Under Motor Controller,
select Distributed Starters.
A list of ArmorStart motor
controllers appear.
3. Select the desired
ArmorStart device and drag
it over the Branch_0 line.
In this example, select the
283D ArmorStart.
When the plus sign appears,
release the left mouse
button.
Once a device is placed on the branch, the RAISE configurator will launch.
Configure the Device Added to Branch
You will now need to configure each ArmorStart device by using the RAISE configurator tool.
4. Select the entries that list NO
SELECTION or NO VALUE.
