Monitor a Parameter
To monitor a parameter, select the desired parameter by completing steps

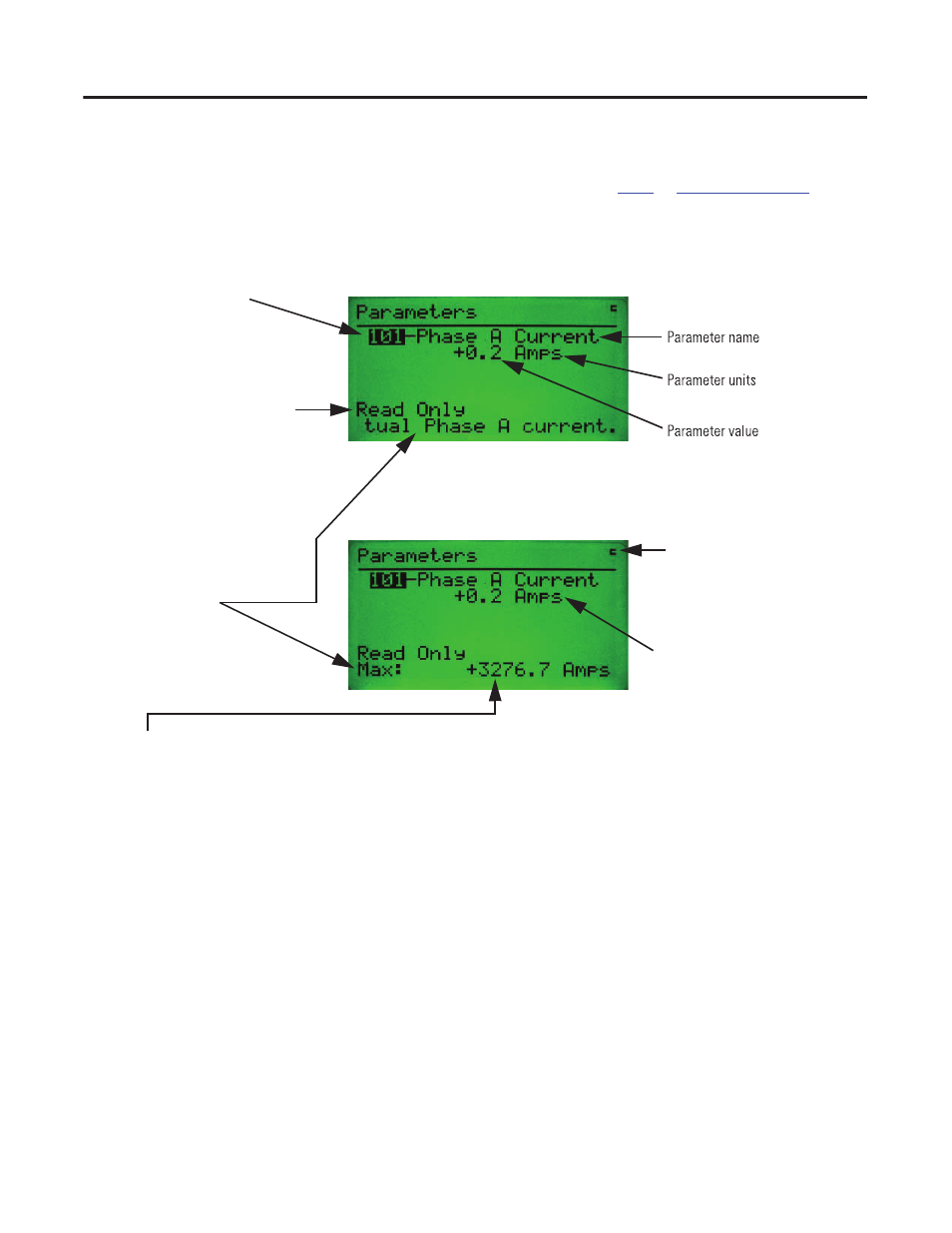

The parameter screen displays all information for a single parameter. Parameter values are continuously
updated.
Parameter number
Indicates that this parameter is Read
Only and its value cannot be edited.
If the Parameter has a Help string,
the string will be scrolled across the
bottom line. After the Help String is
displayed, the Min value will be
display for 3 seconds, followed by
the Max value, and then the Default
value. After the Default is displayed,
the string will repeat.
OR
This c indicates that the Class,
Instance, and Attribute data for
this parameter can be copied to
the clipboard by pressing Shift
key then the Copy Key.
Numeric Parameter
values have this format
Note: If the parameter is a monitor parameter, the HIM stores the HI and LO values for the parameter during monitoring.
The HI:/LO: values are displayed on the same line as the Min, Max, Def and Help string.
