Publication IASIMP-QS015C-EN-P - August 2011 51
System Layout and Wiring Chapter 2

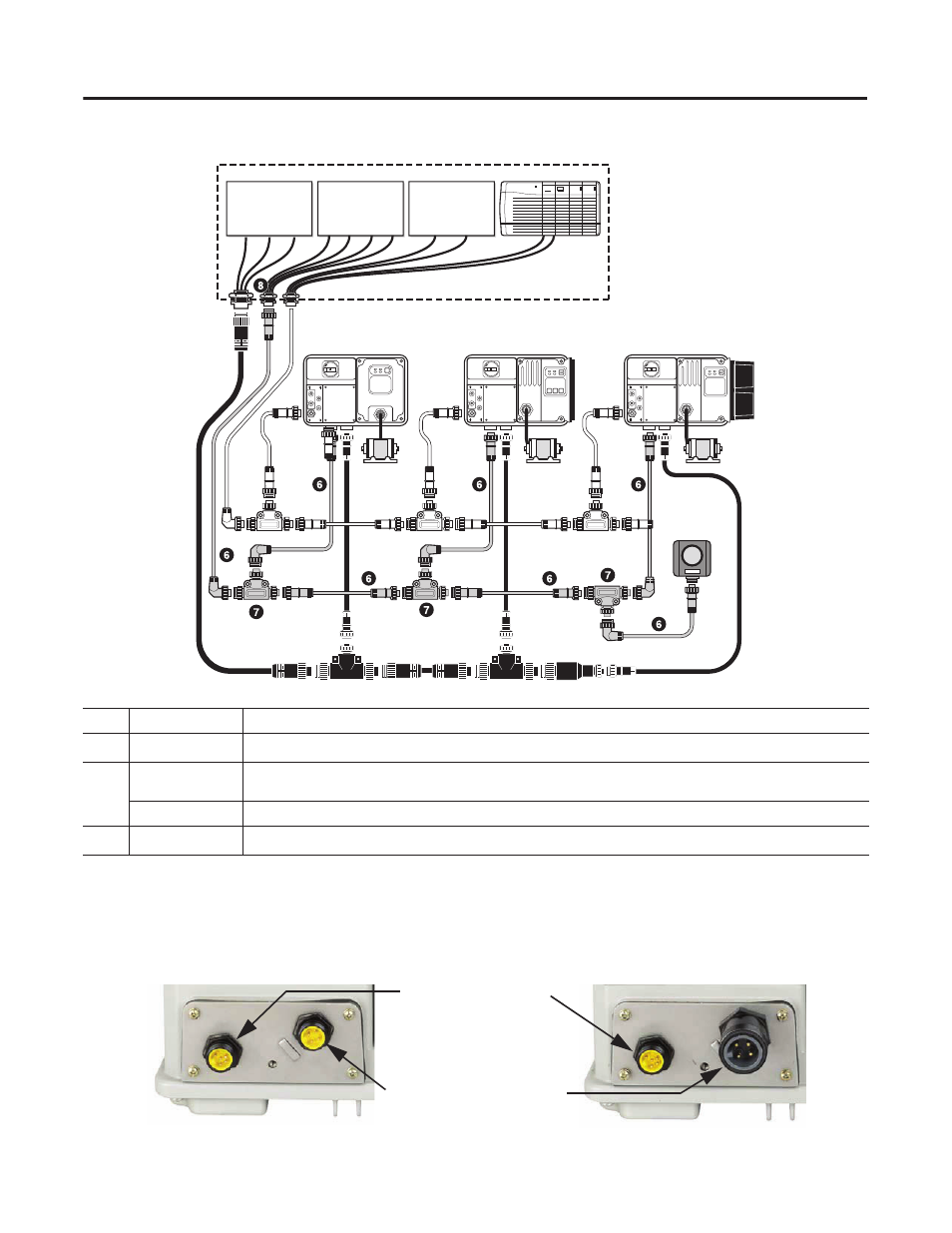

Control Power Media System Overview
ArmorStart Device with ArmorConnect Connectivity
ID Cat. No. Description
6 889N-F65GFNM-x 1
1 “x” represents number needed for desired cable length, which is 2 (2 meters/6.5 feet), 5 (5 m/16.4 ft), or 10 (10 m/32.8 ft).
Control power media patchcords - Patchcord cable with integral female or male connector on each end.
7
898N-653ST-NKF
The E-stop in tee used to connect to the Bulletin 800F On-Machine E-Stop station by using a control power media
patchcord.
898N-653ES-NKF The E-stop out tee is used with cordset or patchcord to connect to the ArmorStart distributed motor controller.
8 888N-D65AF1-x 1 Control power receptacles - Female receptacles are a panel mount connector with flying leads.
RESET
OFF
Bulletin 280/281 ArmorStart Bulletin 283 ArmorStart Bulletin 284 ArmorStart
PLC
Bulletin 1492FB
Branch Circuit
Protective Device
Bulletin 1606
Power Supply
Enclosure
Bulletin 800F
Emergency Stop
Pushbutton
1606-XLSDNET4
DeviceNet
Power Supply
ArmorStart Devices with 10 A
Short-circuit Protection Rating
ArmorStart Devices with 25 A
Short-circuit Protection Rating
Control Power Receptacle
Three-phase Power Receptacle
