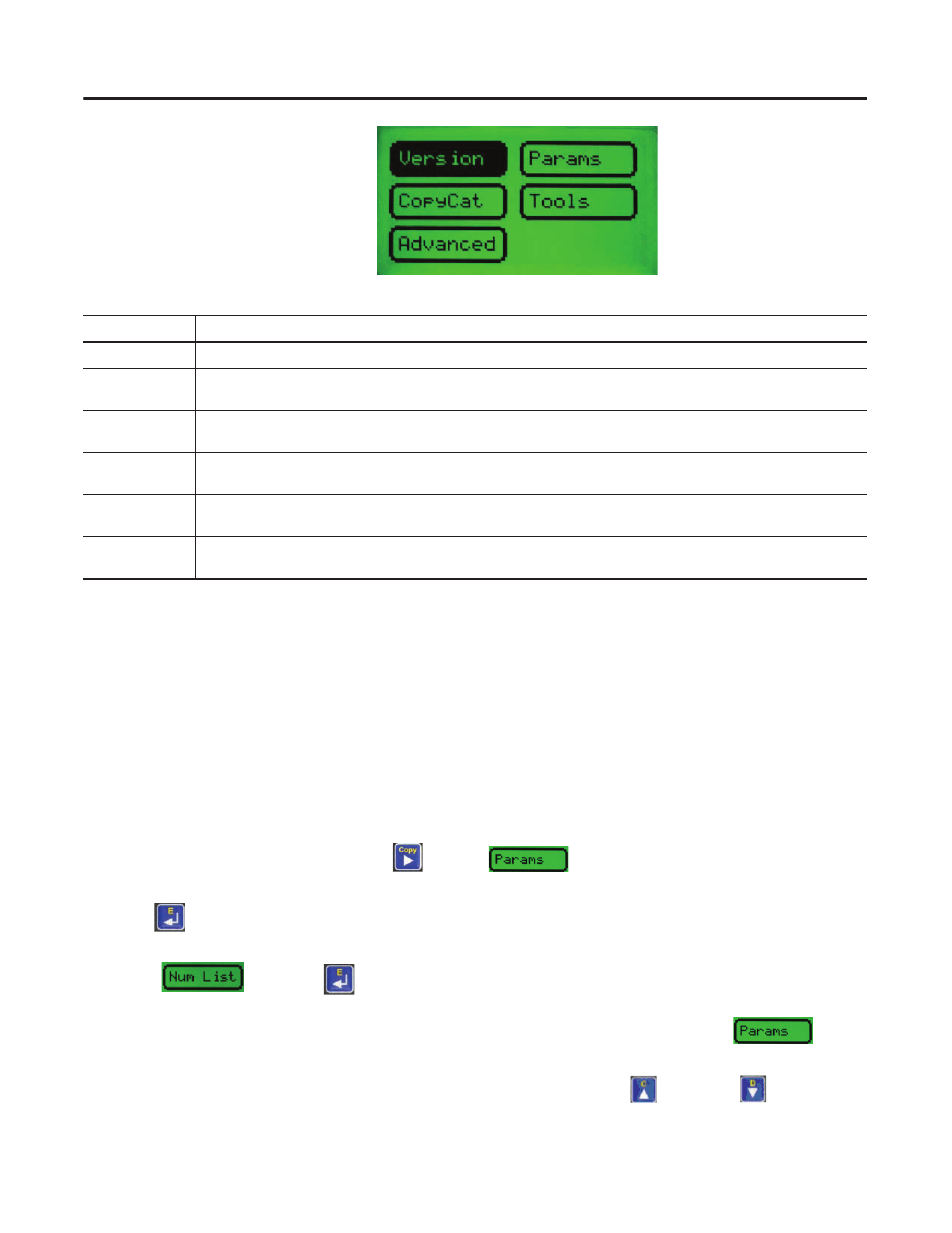

The following Device Choices
menu appears.
Select and Monitor Parameters
The parameter menu allows the operator to select, monitor, and change parameters.
Select a Parameter
To select a parameter follow these steps.
1. From the Device Choices menu, press
to go to
.
2. Press .
3. Go to
and press
.
You can also narrow down the amount of parameters by using the Groups Key under
.
4. Use the numeric keypad to enter your parameter number, or use the up
and down
to scroll to
the desired parameter.
Button
Description
Version
Displays Version information for the selected device.
Params
Provides access to configuration and status parameters for the selected device. Allows the operator to search for
parameters that are not at factory defaults.
Copy Cat
Upload and store complete device configurations, including DeviceLogix programs to the programming terminal’s
memory. Download stored device configurations from the programming terminal memory to the selected device.
Tools
Provides access to Node Commissioning functions, the Class Instance Attribute editor, and the real time graphing
function.
Advanced
Provides access to the DeviceLogix editor, DeviceNet IO message timing information, ZIP configuration, and local input
and output status display.
Scanner
If the selected device is a DeviceNet scanner, provides access to simple scanner configuration values and access to
the scan list.
