Applying Power to the 193-DNCT Terminal
The DeviceNet configuration terminal (catalog number 193-DNCT) is shipped so that when it is placed on
the network for the first time, it will automatically set its baud rate to that of the traffic on the network, and
then assign itself an unused network address. When power is applied, the following screen is displayed. The
193-DNCT obtains its power from the DeviceNet network in this example.

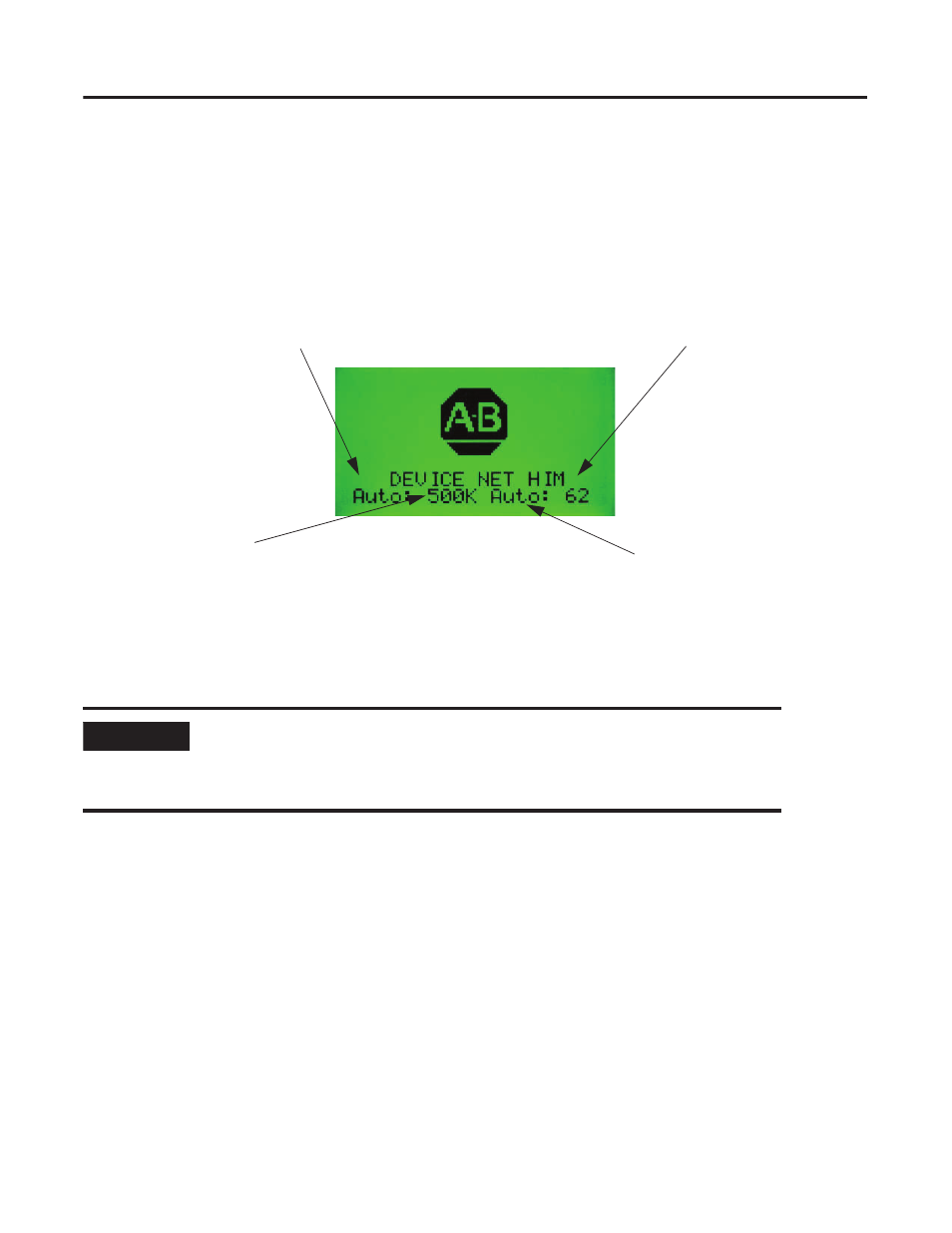

Initial Screen
There is a 10 second power-up delay programmed at the factory. The above screen will appear for at least 10
seconds on initial powerup. The power-up delay can be modified in the Terminal Setup screen described in
the following section. Once the communication rate is determined and a network address has been set, the
terminal will display the Network Who screen, which displays a list of all devices on the network.
To go directly to the Terminal Setup screen, press and hold the ESC key while applying power.
IMPORTANT
If the terminal fails to enter the Network Who screen after approximately 20 seconds, it is
because it could not determine the network baud rate due to lack of traffic on the network.
Pressing the ESC key will allow you to enter the Terminal Setup screen so that a fixed baud
rate and network address can be set for the terminal.
Baud = Fixed Baud Rate
Auto = AutoBauding
Actual Baud Rate
Adrs = Fixed HIM MacID
Auto = Auto Addressing
Actual Terminal Address
