To Connect and Activate an External Monitor (CRT)
1. Connect the monitor cable to the Tablet’s video/monitor port.
2. Tap the Start button and select Programs, MobileView, and CRT
(ON, OFF). This toggles the use of the external monitor.
You may also toggle the use of the external monitor by using the
following steps:
1. Tap the Start button and select Settings, Control Panel from the
menu.
2. Double-tap on the Display icon to open the Display Properties
dialog box.
3. Tap the Background tab, then tap the CRT check box to select it.
4. Tap the Restart button to reboot the Tablet and activate the new
setting. The screen information displays on both the Tablet’s
LCD screen and the external monitor (CRT).
TIP
When external monitor is activated, the Tablet’s
screen resolution is reduced slightly.

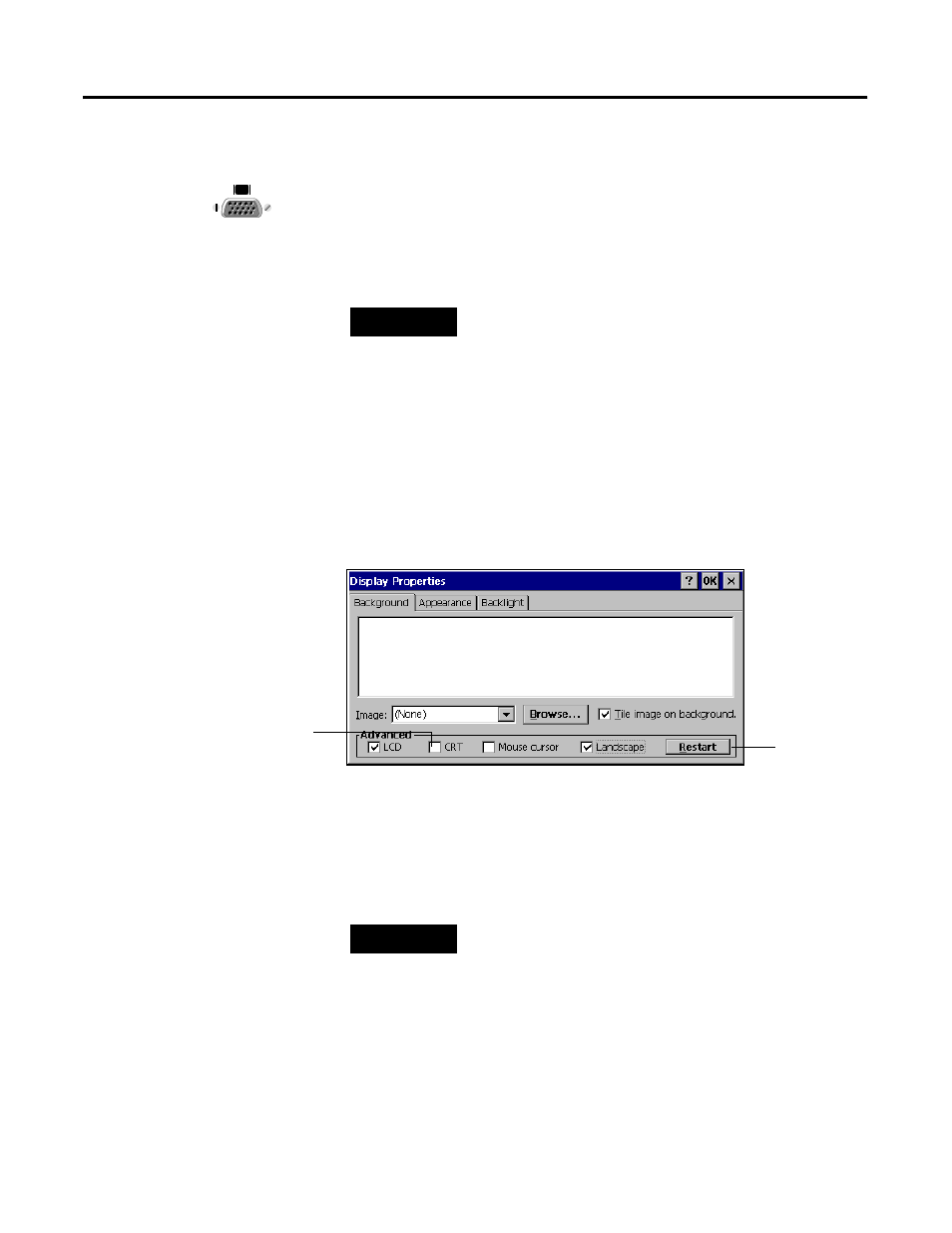

Video/monitor Port
CRT check box
Restart button
TIP
When external monitor is activated or deactivated
from the Display Properties dialog, the image on the
Tablet’s screen changes without Automatic Contrast
and Brightness adjustment. Use the Contrast and
Brightness buttons to adjust the image.
