Publication 2727-UM001D-EN-P - March 2004
Communications Configuration 5-27
Installing Microsoft ActiveSync Software
Microsoft ActiveSync enables you to connect the Tablet to your PC.
ActiveSync version 3.1 or greater is required. Download ActiveSync
from the Internet at
www.microsoft.com/pocketpc/downloads/activesync.asp and follow
Microsoft’s installation instructions. When the software installation is
complete, continue by following the procedure below.
Connecting the MobileView Tablet to a PC
Follow these steps to connect the Tablet to a PC:
1. Connect the serial cable (Allen-Bradley catalog number
2727-TRC1) between the Tablet’s RS-232 port and your PC’s
serial communications port.
2. Enable Web Server under the Network Interface options Start /
Programs / MobileView / Network Interface.
3. If ActiveSync or the Get Connected window is not open already
on the PC, follow these steps:
•
Select Start, Programs, ActiveSync on the PC. The ActiveSync
window opens.
•
In the ActiveSync window, select File, Get Connected from
the menu bar. The Get Connected window will open.
4. In the Get Connected window, click the Next button.
1
2
3
4
5
6
7
8
9
6
2
8
4
7
5
3

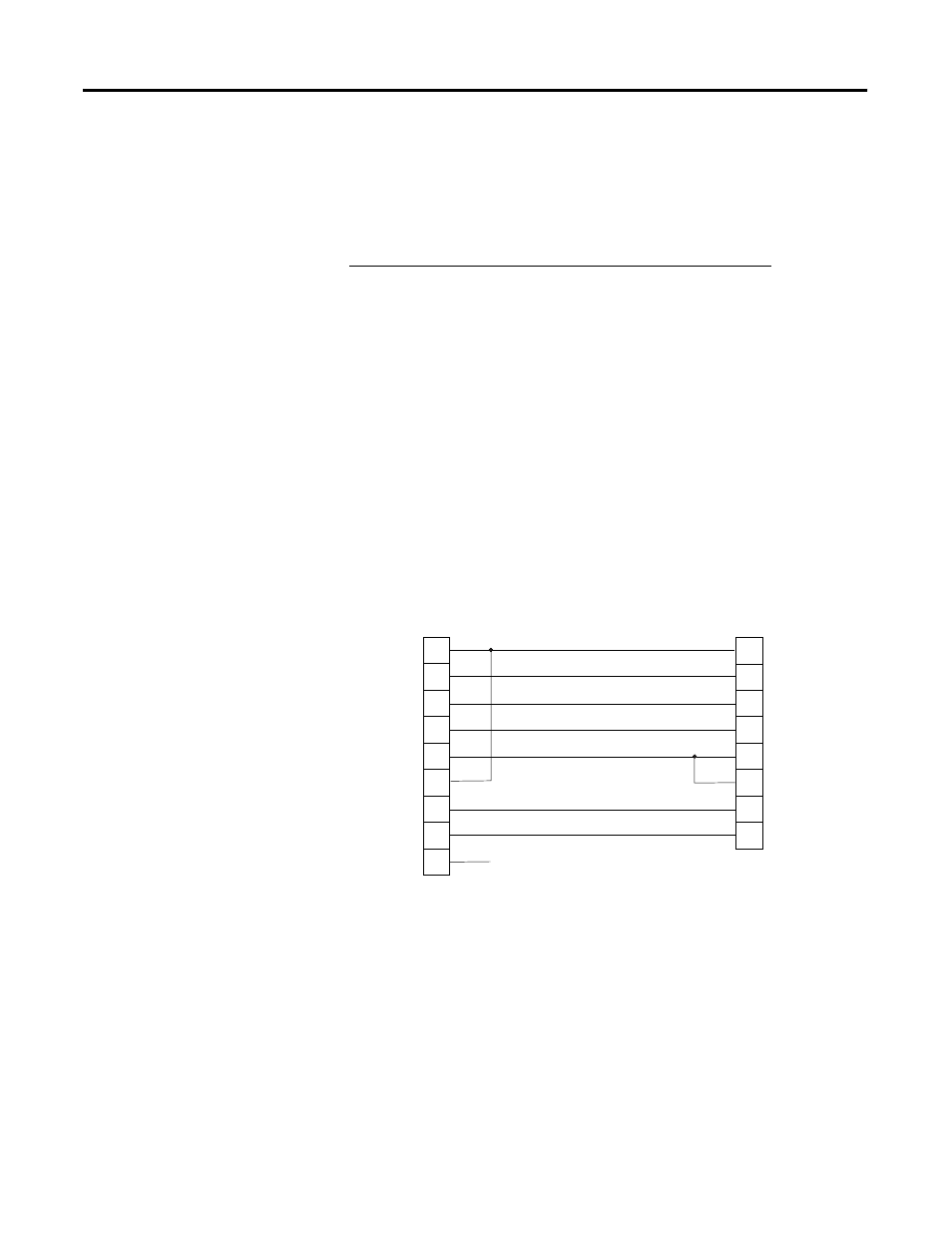

1 DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
HSK OUT
TXD -
RXD -
GPI DCD
GND
RXD +
HSK IN CTS
RTS
NC
9 Pin
D-SUB 8 Pin
MINI-DIN
