Chapter 5
Quick Start for New Users
5–5

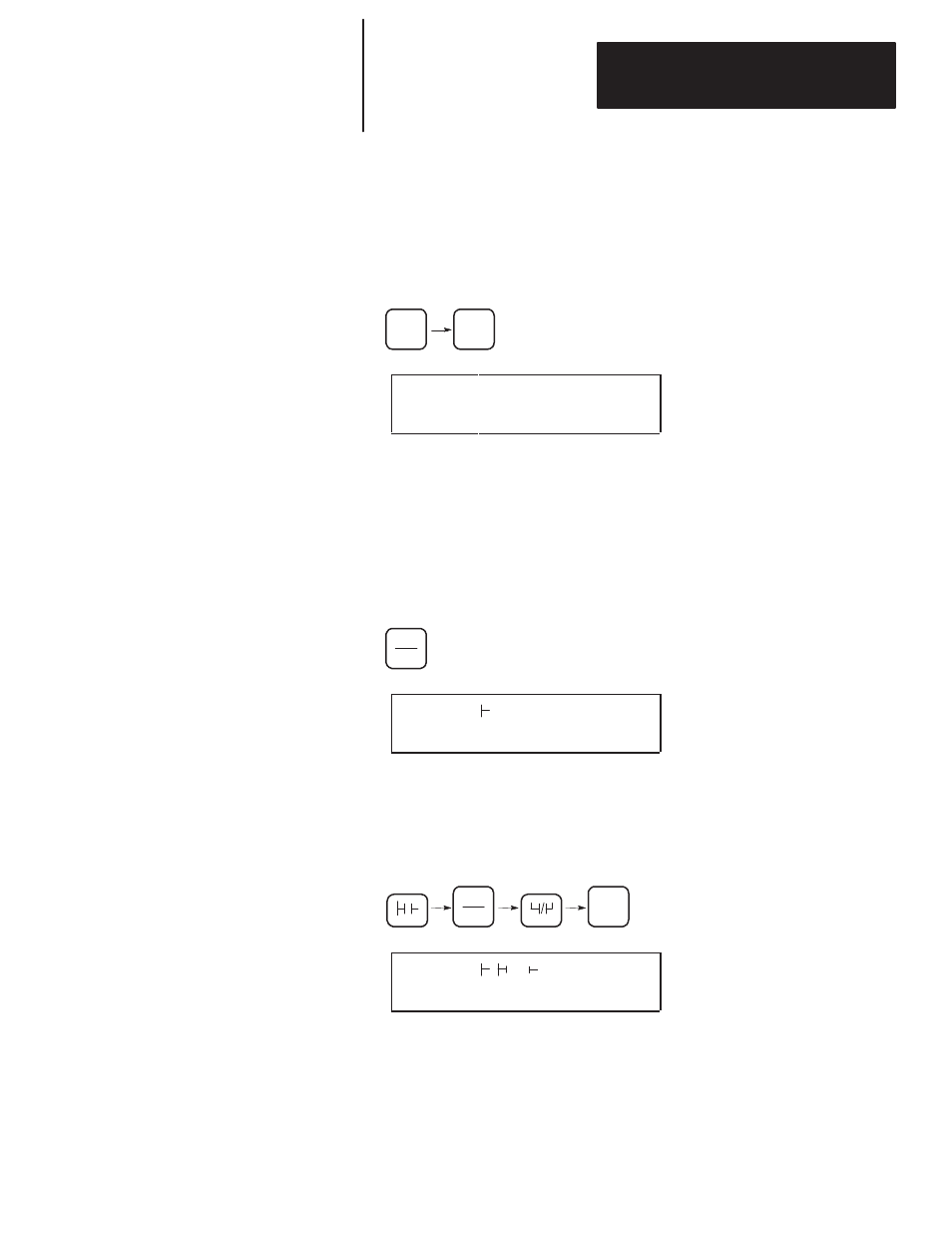

Enter the rungs by completing the steps that follow.
Important: If you make an error at any time, you can abandon the operation
by pressing the ESC key.
1. From the home screen, access the program monitor display for the
program MICRO .
MON ENT
P S T A R T F I L E : 0 2
M A I N _ P R O G
The start of file screen appears. This is where you start inserting the
program rungs.
2. Insert a rung in file 2, the main program file.
Remember, the MicroLogix 1000 HHP is designed to distinguish which
function you want to perform based on the context you are in at the time
you press a key. Therefore, pressing the key shown below will
automatically access a new rung, and not a T.
NEW
RUNG
T
P 0 0 0
The P in the upper left-hand corner is flashing because you are making
changes to the program.
3. Enter the first normally open instruction (LD) on the rung. For the input
file type, the / character is automatically displayed by the HHP.
MENU
I 6 7
LD
ENT
P 0 0 0
I / 6 0
