After You’ve Entered Your Program
Chapter 18
18–22
Changing Remote Modes
The following steps show how to change from RPRG mode to RRUN mode.
Important: When changing from RPRG mode to any other mode of
operation (RRUN, RCSN, or RSSN), any edits that exist in the
current program are accepted automatically. (Edits exist
whenever the mode is flashing on the HHP display.)

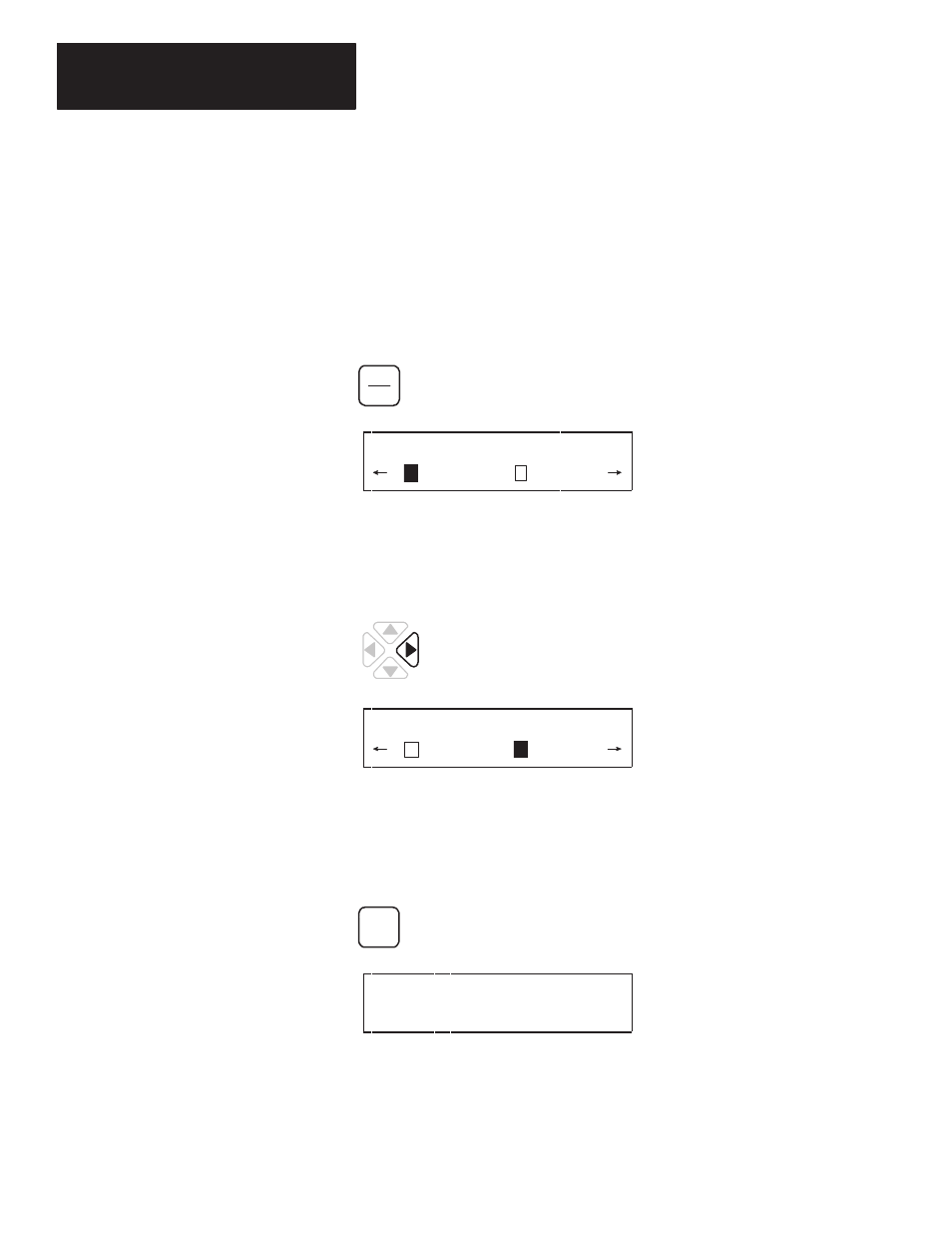

1. Enter the mode options.
O
MODE
A C T I V E M O D E : R P R G
R P R G R R U N
The current mode, RPRG, is shown on the top line. The bottom line
shows the mode options. The arrows to the left and right indicate that
more options are available.
2. Arrow over to RRUN.
A C T I V E M O D E : R P R G
R P R G R R U N
3. Select RRUN. If edits exist in the current program, the program is
checked and if accepted, the home screen appears. If you get a fault code,
refer to chapter 19 to clear the fault. If an error message appears, see
chapter 19 for a definition of the program verification error code and the
recommended action(s) you should take.
ENT
M I C R O R R U N
F R E E : 7 2 8 F I L E : 0 2
RRUN now appears in the upper right-hand corner of the screen. Also, the
number of free instruction words is displayed.
