Chapter 19
Common Procedures
19–2
Retrieving a Program from a Memory Module
You can retrieve a program from a memory module using the
LOAD
PROGRAM
option. Follow the steps below.
1. Put the controller in RPRG mode (if it is not already in that mode).
2. Go to the menu and choose the option
MEM MODULE
.
3. Select
LOAD PROGRAM
.

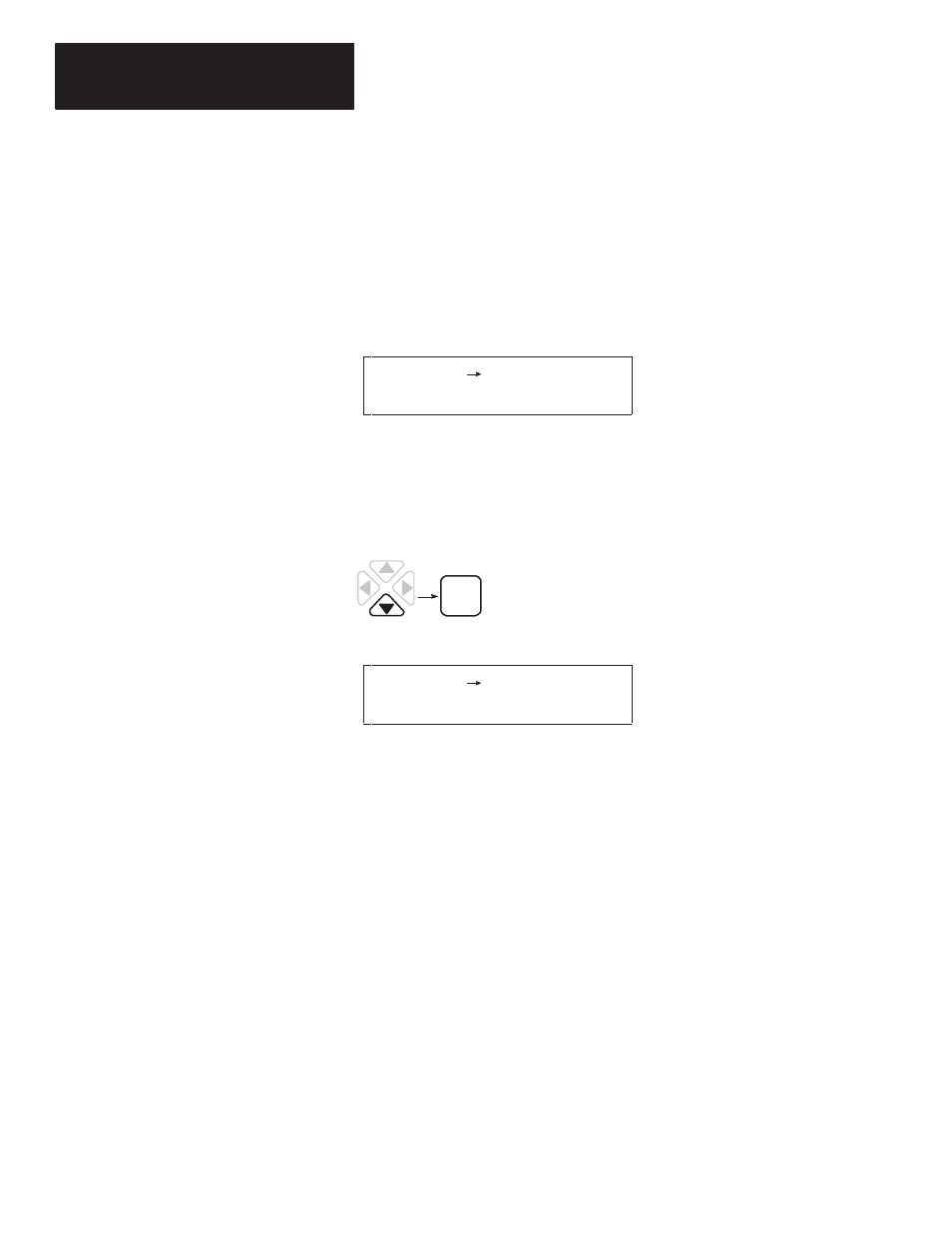

L O A D :
P R O G R A M 1
P R O G R A M 2
A sub-menu appears listing the names of the programs contained on the
memory module. If there are no programs, dashed lines appear in place
of program names. In such a case, since there are no programs to load,
you must press
ESC
to exit the sub-menu.
4. Arrow down to the program you want to load and select it.
n times
ENT
L O A D :
P R O G R A M 3
L O A D I N G . . .
Various screens appear to indicate the program is loading. Once the
program is loaded to the controller, the MicroLogix 1000 HHP returns
you to the home screen. (If the program is password protected, you are
first prompted to enter the password.)
Important: If a program already exists in the controller with the
same name as the one you are about to load, a
confirmation screen appears asking if you want to
overwrite the existing program.
If you do not want to write over the existing program, press
ESC
to exit the sub-menu.
If you want to overwrite the existing program, press
ENT
.
Various screens appear to indicate the program is loading.
Once the program is loaded to the controller, the
MicroLogix 1000 HHP returns you to the home screen. (If
the program is password protected, you are first prompted to
enter the password.)
