112 Rockwell Automation Publication 20COMM-UM015B-EN-P - July 2013
Chapter 6 Using Explicit Messaging
ControlLogix Controller Example Ladder Logic Program to Read Multiple
Parameters, RSLogix 5000 Software, All Versions
A Scattered Read message is used to read the values of multiple parameters. Up to
22 parameters can be read. This read message example reads the values of these
five parameters.
See DPI Parameter Object on page 198 (Class code 0x93) for parameter
numbering.
Important: See Table 17 on page 106 for limitations of PowerFlex 7-Class
drives when using Class code 0x93.
Table 20 - Example Controller Tags to Read Multiple Parameters

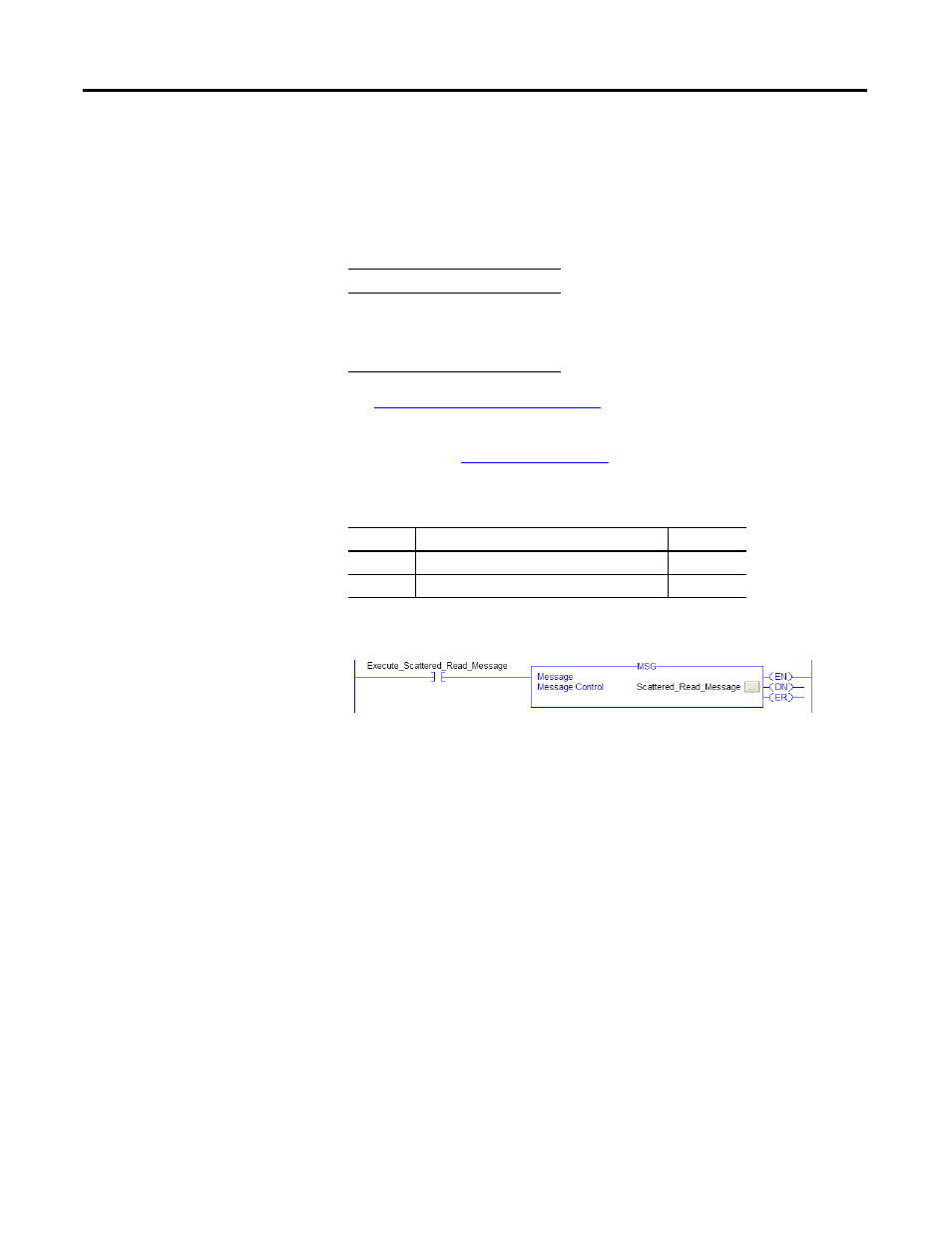

Figure 39 - Example Ladder Logic to Read Multiple Parameters
PowerFlex 7-Class Drive
• Parameter 001 - [Output Freq]
• Parameter 003 - [Output Current]
• Parameter 006 - [Output Voltage]
• Parameter 012 - [DC Bus Voltage]
• Parameter 017 - [Analog In1 Value]
Operand Controller Tags for Read Multiple Message Data Type
XIC Execute_Scattered_Read_Message BOOL
MSG Scattered_Read_Message MESSAGE
