Installation/wiring 1-17 – Rockwell Automation 22C PowerFlex 400 AC Drive FRN 1.xx - 7.xx User Manual
Page 29
Installation/Wiring
1-17
PowerFlex 400 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22C-UM001I-EN-P

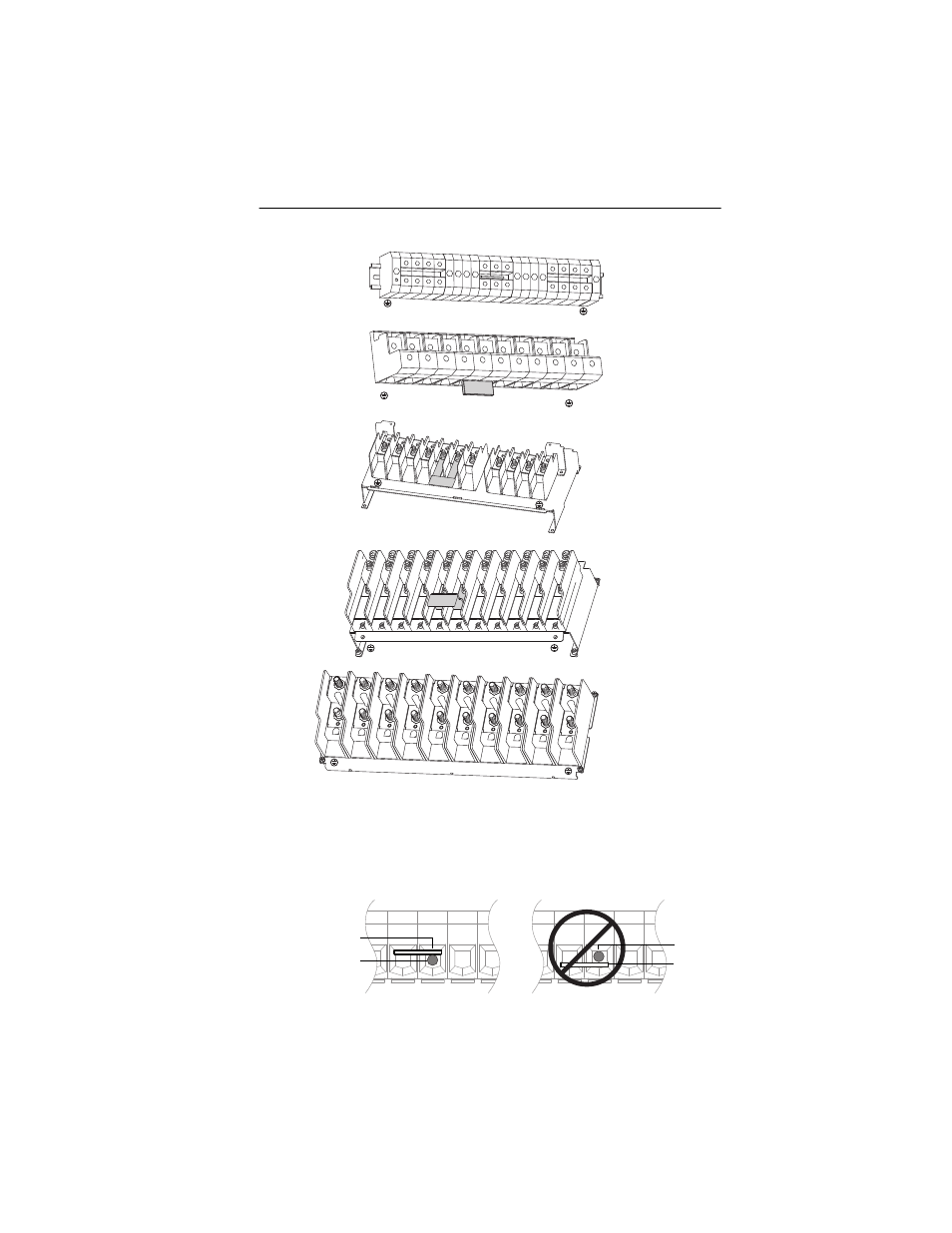

Figure 1.9 Power Terminal Blocks (Frames E through H)
Important: For Frame E, 240V 30-37 kW (40-50 HP) and 480V
55-75 kW (75-100 HP) drives, take care to place the wire
beneath the jumper and not above it when connecting to
terminals P1 and P2.
R/L1 S/L2 T/L3 P1
P2
DC– U/T1 V/T2 W/T3
Frame E:
240V
480V
30-37 kW 55-75 kW
(40-50 HP) (75-100 HP)
Frame F
R/L1 S/L2 T/L3 P1
P2 DC–
U/T1 V/T2 W/T3
Frame G
R/L1 S/L2 T/L3
P1
P2
DC– U/T1 V/T2 W/T3
Frame H
R/L1
S/L2
T/L3
DC–
DC+
U/T1
V/T2
W/T3
Frame E:
480V
37-45 kW
(50-60 HP)
R/L1S/L2T/L3
P1 P2 DC–
U/T1V/T2W/T3
See note at the bottom
of this page.
P1
P2
DC-
P1
P2
DC-
Wire
Jumper
Wire
Jumper
Correct
Incorrect
Bottom view of terminal block and wire
