F-6
Metasys N2
PowerFlex 400 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22C-UM001I-EN-P
Configurable objects are inputs and outputs that let you read and write
parameter values. These objects handle only 16-bit parameter values.
Reading Parameter Values
The configurable points may show any parameter in the drive by
configuring the Param# for INx point. The drive reads the value of the
parameter configured in the Param# for INx point and shows the result in
the User INx point. The Param# for INx’s default to commonly accessed
parameters and can be changed if desired. A “0” disables the fetching of
data and a “0” is returned in the respective User INx. See
and
.

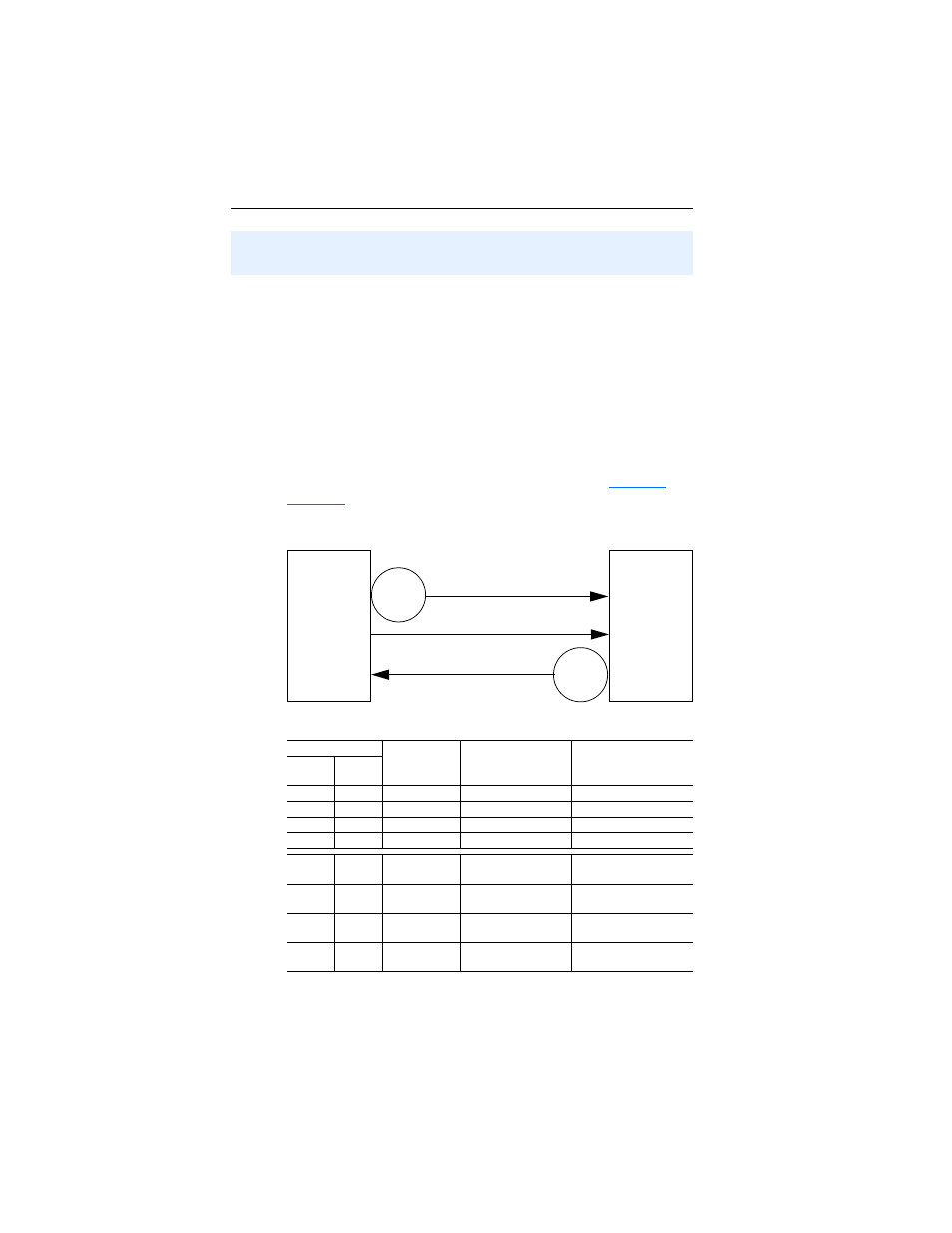

Figure F.1 Configurable Input Point Operation Objects Inputs
Using Metasys Configurable Objects to Access
Parameters
Table F.13 Configurable Objects: Inputs
Network Point
Name
Description
Default
Type
(NPT)
Address
(NPA)
AI
10
User IN1
User-defined Input 1
0
AI
11
User IN2
User-defined Input 2
0
AI
12
User IN3
User-defined Input 3
0
AI
13
User IN4
User-defined Input 4
0
ADI
1
Param# for IN1 User IN1 (AI 10)
Data Source (Param#)
b001 [Output Freq] (Hz)
ADI
2
Param# for IN2 User IN2 (AI 11)
Data Source (Param#)
b011 [Elapsed MWh]
ADI
3
Param# for IN3 User IN3 (AI 12)
Data Source (Param#)
b012 [Elapsed Run Time]
ADI
4
Param# for IN4 User IN4 (AI 13)
Data Source (Param#)
b014 [Drive Temp]
Controller
Drive
Param#
for INx
User
INx
Request
Response Data
ADI
AI
