B-18 accessories and dimensions – Rockwell Automation 22C PowerFlex 400 AC Drive FRN 1.xx - 7.xx User Manual
Page 168
B-18
Accessories and Dimensions
PowerFlex 400 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22C-UM001I-EN-P

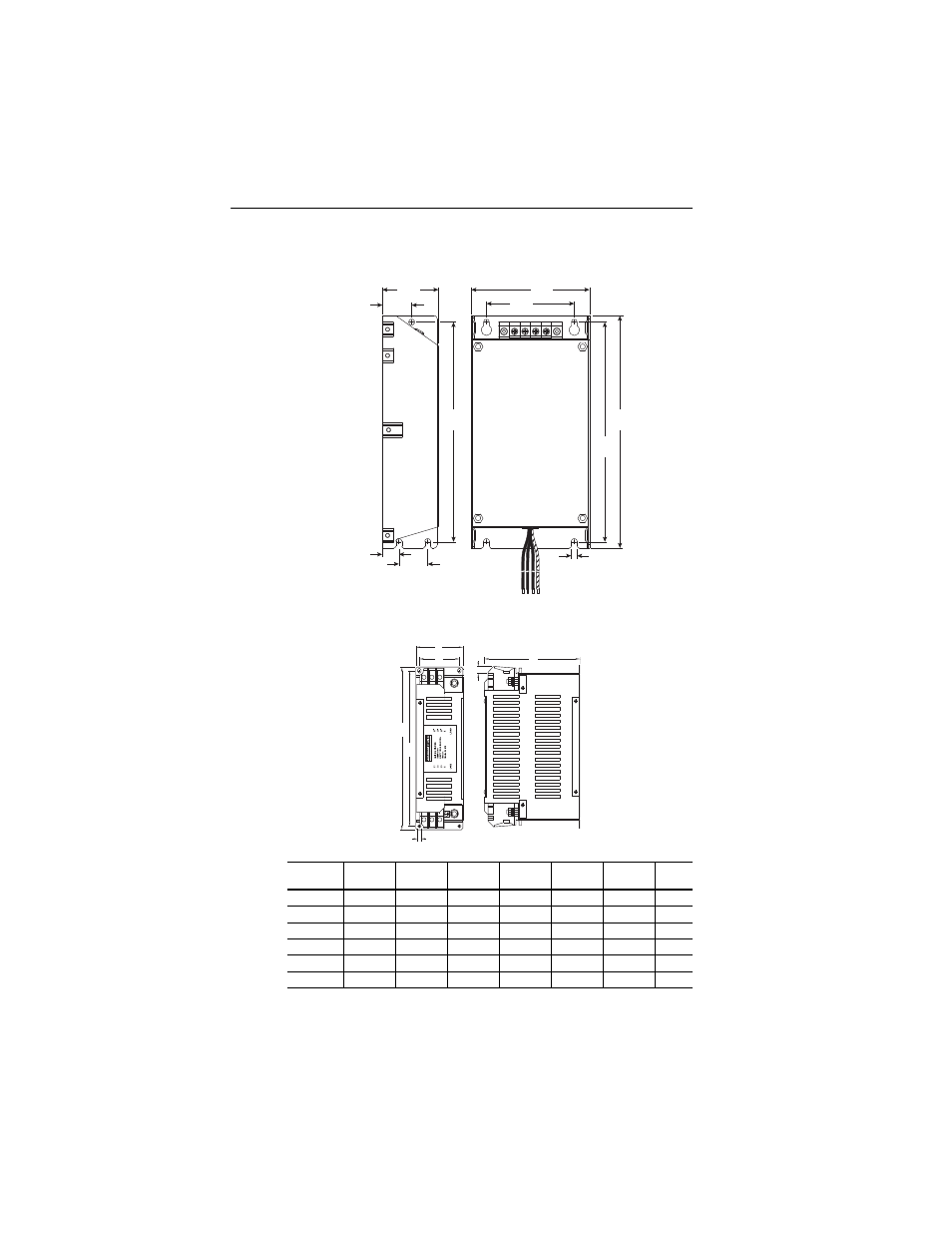

Figure B.10 EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF018-CS, 22-RF018-CL, 22-RF026-CS, 22-RF026-CL,
22-RF026-CL, 22-RF034-CS
Catalog Numbers: 22-RFD036, 22-RFD050, 22-RFD070, 22-RFD100, 22-RFD150,
22-RFD180
Catalog
Number
A
B
C
D
E
F
G
22-RFD036
74 (2.91)
272 (10.71) 161 (6.34)
60 (2.36)
258 (10.16) 7.5 (0.30)
7 (0.28)
22-RFD050
93 (3.66)
312 (12.28) 190 (7.48)
79 (3.11)
298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD070
93 (3.66)
312 (12.28) 190 (7.48)
79 (3.11)
298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD100
93 (3.66)
312 (12.28) 190 (7.48)
79 (3.11)
298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD150
126 (4.96)
312 (12.28) 224 (8.82)
112 (4.41)
298 (11.73) 19.5 (0.77) 7 (0.28)
22-RFD180
126 (4.96)
312 (12.28) 224 (8.82)
112 (4.41)
298 (11.73) 27 (1.06)
7 (0.28)
5.5 (0.22)
17
(0.67)
30
(1.18)
90
(3.54)
130
(5.12)
60
(2.36)
32
(1.26)
309
(12.17)
297
(11.69)
297
(11.69)
B
E
A
D
C
F
G
