Overview of device descriptions
Inverter Drives 8400 StateLine C - speed actuating drive
64
Lenze · Commissioning of Lenze drives · 1.3 EN - 06/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

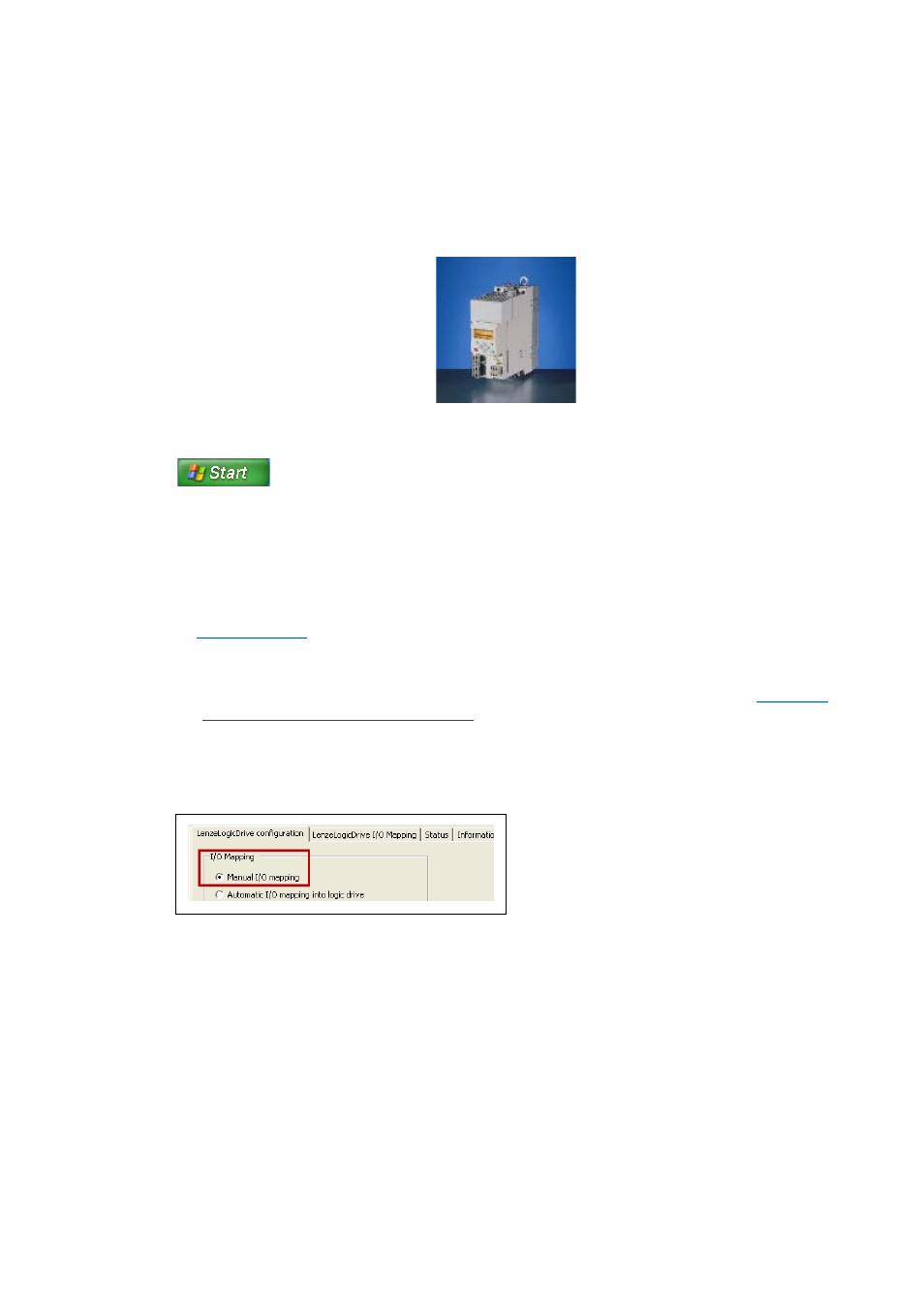

9.2 Inverter Drives 8400 StateLine C - speed actuating drive
• This device is available for CANopen and EtherCAT.
• For controlling the Inverter Drives 8400 StateLine with the "speed actuating drive" application,
an application sample is available.
Where do I find the suitable application example?
ProgramsLenzeAppSamples<Version>
LAS_40_INTF__84SL_Speed
• CAN projects contain the "_Can" code in the file name
• EtherCAT projects contain the "_ETC" code in the file name
Description
By inserting this device into the »PLC Designer«, a subordinated node is inserted automatically with
an L_LCB_AXIS_REF instance.
• Connect a function block with the L_LCB_AXIS_REF instance to establish a connection to the
slave. Transmitted process data are automatically written to the L_LCB_AXIS_REF instance.
Hence, no manual assignment of the process data to the application is required.  Overview:
The libraries for controlling the inverters ( 82)
• When the sample device application is used, the L_LCB_ActuatorSpeed function block from
the L_LCB_LenzeLogicDrives library can be used for activating the 8400 StateLine.
• The function blocks for parameter accesses are contained in the
L_DCO_DriveCommunication library.
• In order to be able to link the process data
manually (instead of the automatic link to
the L_LCB_Axis_REF instance), the Manual
I/O mapping option has to be activated.
