Extending sample projects - adding devices
Creating a control configuration - EtherCAT bus system
52
Lenze · Commissioning of Lenze drives · 1.3 EN - 06/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

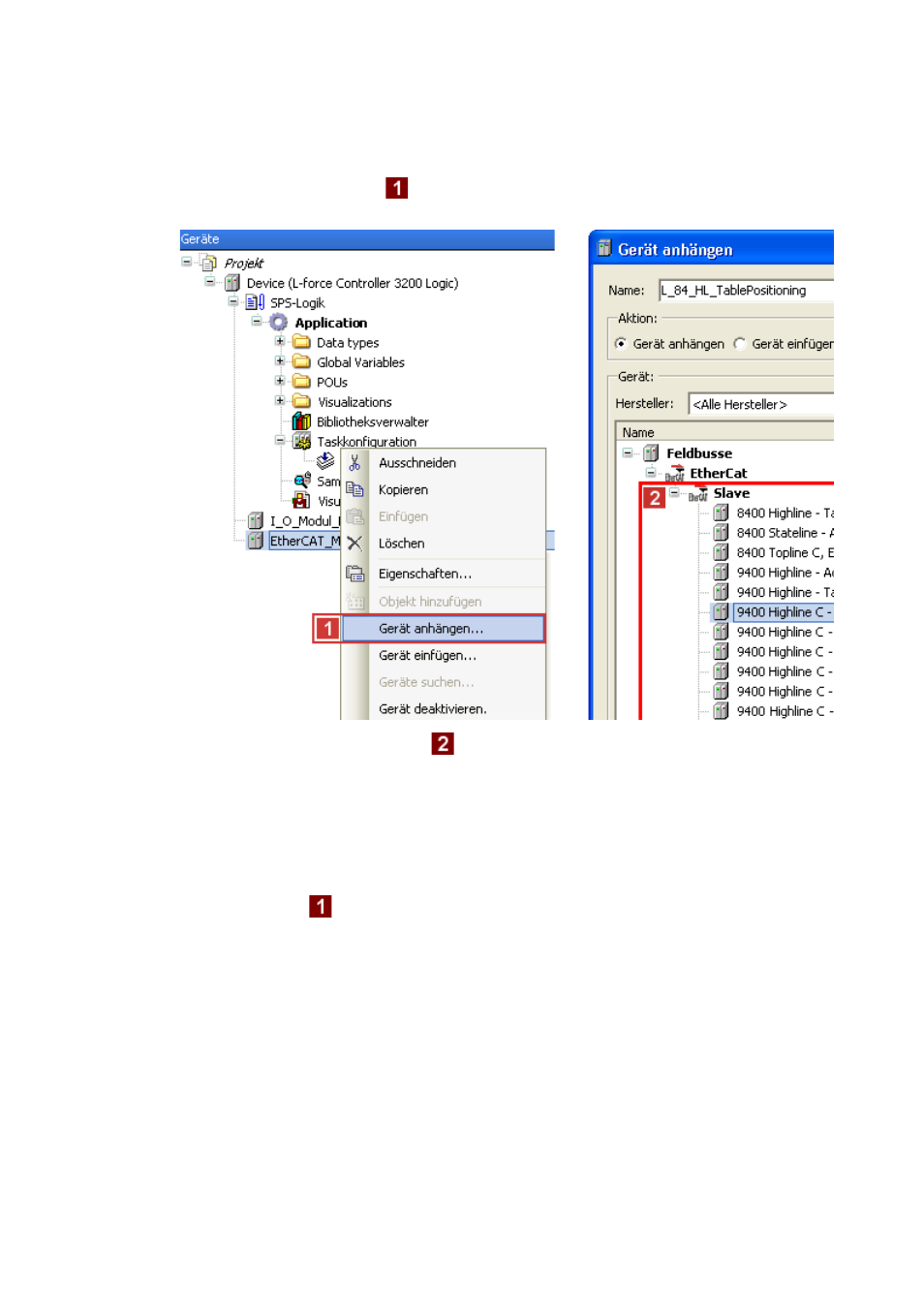

2. Add an EtherCAT slave below the EtherCAT master.
• Manually using the
Add Device command in the context menu of the CANopen
master
Select a field device from the
selection list. You can only select devices the CANopen
device description files of which have been imported in the »PLC Designer«.
The »PLC Designer« provides a "fieldbus scan" during which the devices connected to the
fieldbus are automatically detected.
• More information can be found in the section "Lenze specificationsEtherCAT control
technology" of the online help for the »PLC Designer« and in the EtherCAT
communication manual (KHB)- Commissioning & configuration.
Repeat the
Add Device command until all slaves connected to the fieldbus are included
in the control configuration.
