Working with the sample projects
Sample project with "Table positioning" application - TablePositioning
48
Lenze · Commissioning of Lenze drives · 1.3 EN - 06/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

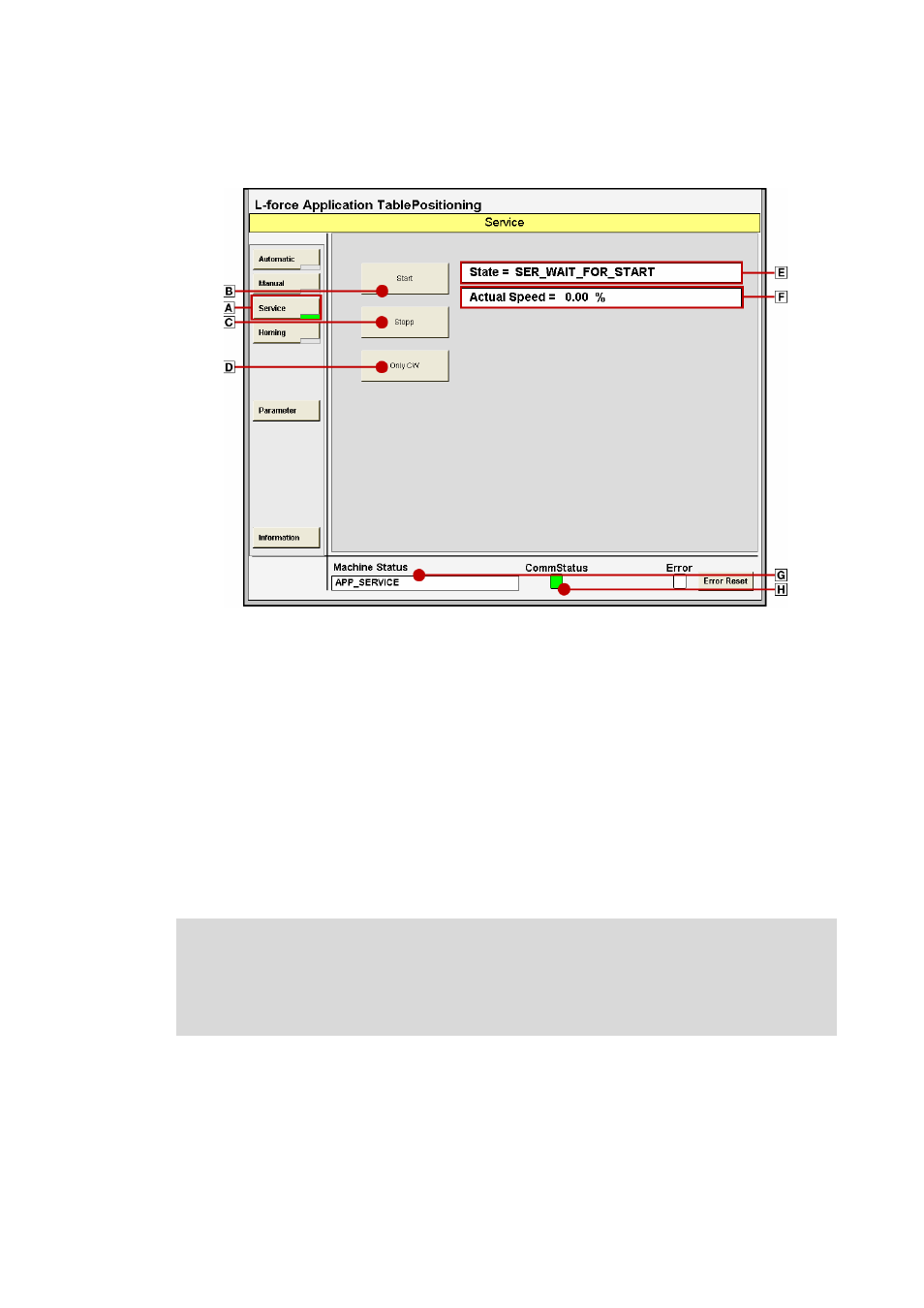

7.2.6.4 Service mode
• Button  selects the service mode.
• Button  starts the motion profile.
• Button  inhibits the motion profile.
• Button selects clockwise rotation (clockwise rotating direction of the motor).
• Display field  indicates the status of the mode.
• Display field  indicates the current speed (variable Speed Value).
• Dialog box shows the status of the machine.
• Control field  shows the bus communication status.
• Control field Error indicates the error message status.
• Error in the application
• Error in the controller
• The Error Reset button resets the error messages.
 Select mode  Stop button Status of the service mode
Start button  Activate clockwise
rotation
 Actual speed

Note!
If a bus communication error occurs, the control and drive controller are to be restarted,
since the sample application does not support an automatic reset of bus
communication.
