Extending sample projects - adding devices

Create control configuration - bus system CAN

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

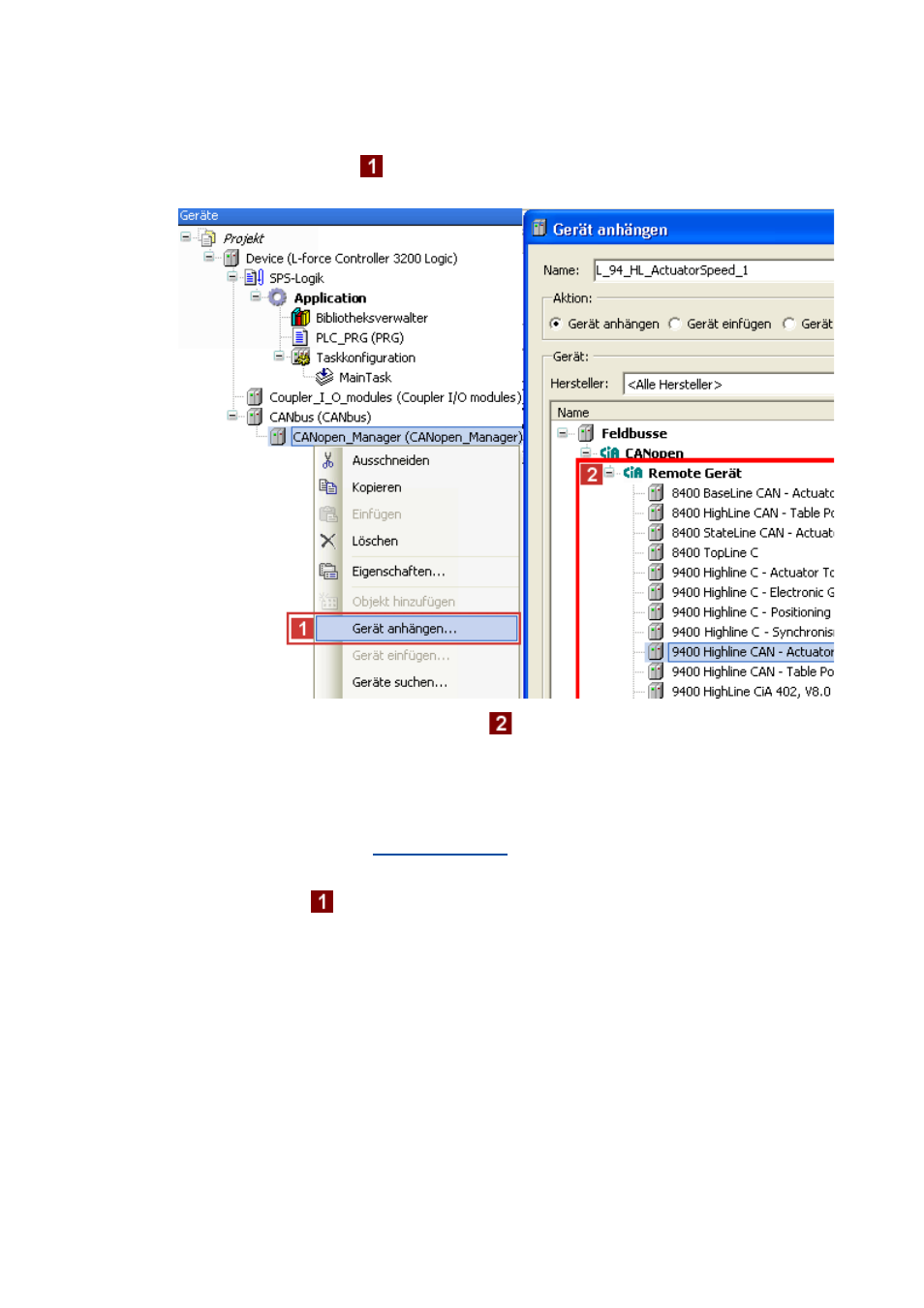

5. Use the command

Add Device to add a Logic device (slave) to the CANopen_Manager

(master).

Select the desired CAN node from the

selection list.

Tip!
For the implementation of other controllers, a general device description is provided: Lenze

Generic Drive.
Further information on the function block of the general device control can be found in the

following section:

Repeat the

Add Device command until all slaves connected to the bus are

implemented in the control configuration. Optionally, you can Copy and Paste a node

already inserted into the context menu of the device. The communication settings (node ID

and baud rate as well as further parameters) must be adapted manually.
