Working with the sample projects
Sample project with the "Actuator speed" application - Actuator Speed
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.1.6
Operation via the visualisations in the »PLC Designer«
7.1.6.1
Information/start page
[7-3]

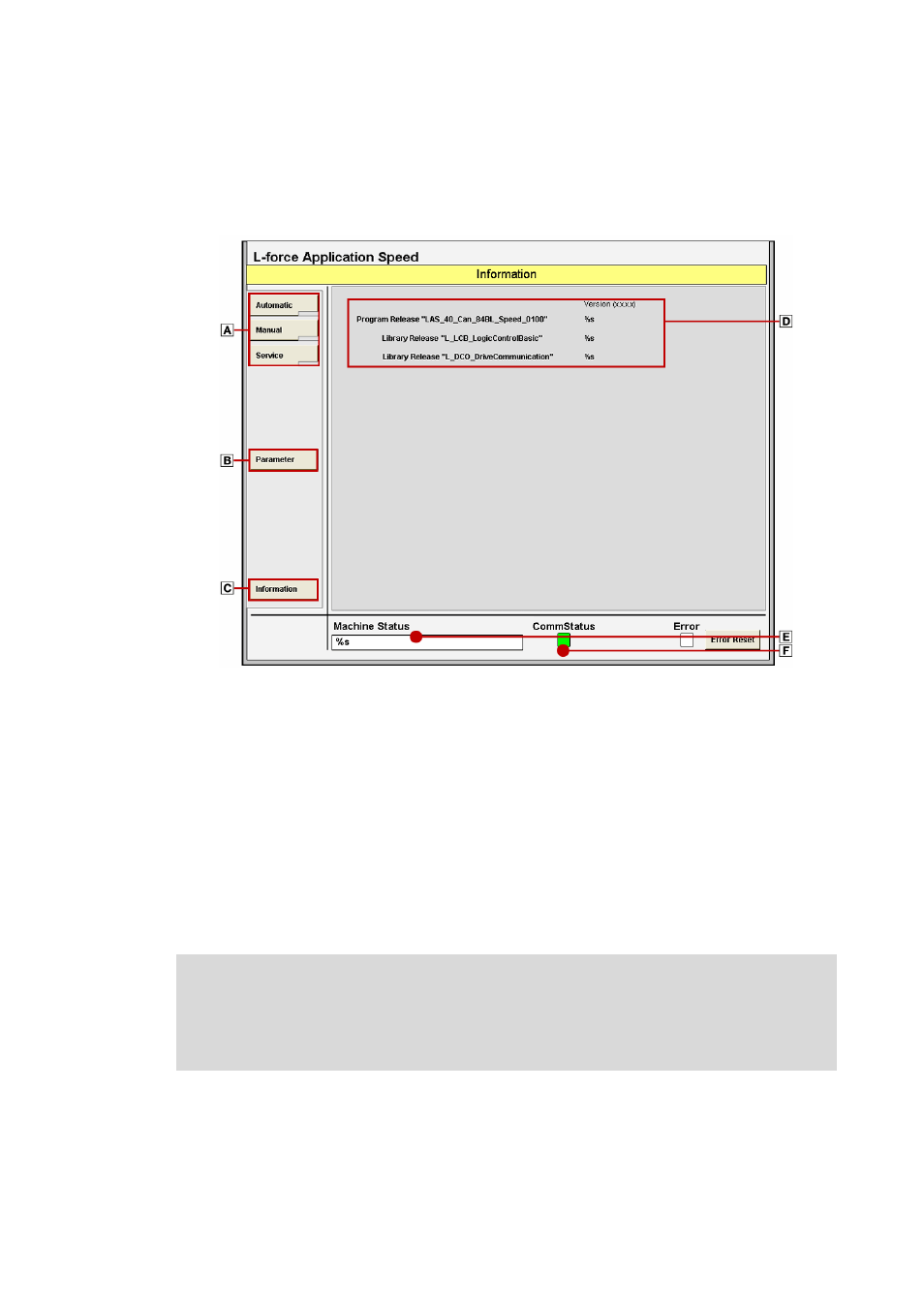

Visualisation start page of the sample project Lenze 8400 HighLine - Actuator Speed
• Via the buttons in area , the mode (automatic, manual, service) can be selected.
• In area , SDO services (read/write parameters) for the controller can be selected.
• The button in area refers to the start page which displays the version identifier of the project
and the libraries in area .
• Dialog box shows the status of the machine.
• Control field shows the bus communication status.
• Control field Error indicates the error message status.
• Error in the application
• Error in the controller
• The Error Reset button resets the error messages.
Select mode
Information/start page
Status
Parameter
selection
Version identifier
Status
Note!
If a bus communication error occurs, the control and drive controller are to be restarted,
since the sample application does not support an automatic reset of bus
communication.
