ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
2-62
© 2000, ADC Telecommunications, Inc.
DLP-517
Page 1 of 1
RTAU INSTALLATION AND TESTING
Summary:
This procedure provides instructions for installing the Remote Test Access Unit
(RTAU) in the chassis and verifying that it is functioning properly. The RTAU requires no
provisioning or periodic maintenance.
Caution:
Modules can be damaged by electrostatic discharge (ESD). Before handling
any modules, ESD protection must always be used. An ESD grounding post is located on
the chassis for connecting the ESD wrist band. Ensure that all modules removed from
the equipment or not installed, are properly stored in anti-static packing material. When
working with modules, always place the module on an electrically-grounded, approved,
anti-static mat.
Note:
For information about installing and testing the RTAU, which is used with MPU
Software Version 5.3, refer to the Soneplex RTAU (Remote Test Access Unit)
Installation Instructions manual, listed under Related Publications at the beginning of
this manual.
1. Remove the RTAU from its protective packaging.
2. Insert the RTAU into the full height chassis slot labeled TAU (as shown in
Figure 517-1
)
until it reaches the backplane connector.
3. Using the ejectors, fully seat the RTAU in the chassis. A moderate amount of force may be
required to properly seat the module in the backplane connector.
4. Did the STATUS indicator light green?
•
If Yes, you have completed this procedure.
•
If No, replace the RTAU and return to Step 1.
Stop! You have completed this procedure.
12692-A
RTAU MODULE
HSW
HSP
TAU
APU
MPU
MXP
MXW
DS3 FAIL
RESET
LMPTST/
APS
LPBK
ENABLE
ONLINE
STATUS
APS
LOCKOUT
FORCE
CR
MJ
MN
APU
ACO
PWR
HSKP
RMT
ALM
LMPTST
DISP RMT
STATUS
RESET
1-3
1-1
2-1
2-3
3-1
3-3
4-1
4-3
5-1
5-3
6-1
6-3
7-1
7-3
1-4
1-2
2-2
2-4
3-2
3-4
4-2
4-4
5-2
5-4
6-2
6-4
7-2
7-4
RTAU
INTRUSIVE
TEST
B8ZS
AMI
LINE CODE
STATUS
D
S
1
RX
TX
DS3 FAIL
RESET
LMPTST/
APS
LPBK
ENABLE
ONLINE
STATUS
APS
LOCKOUT
FORCE

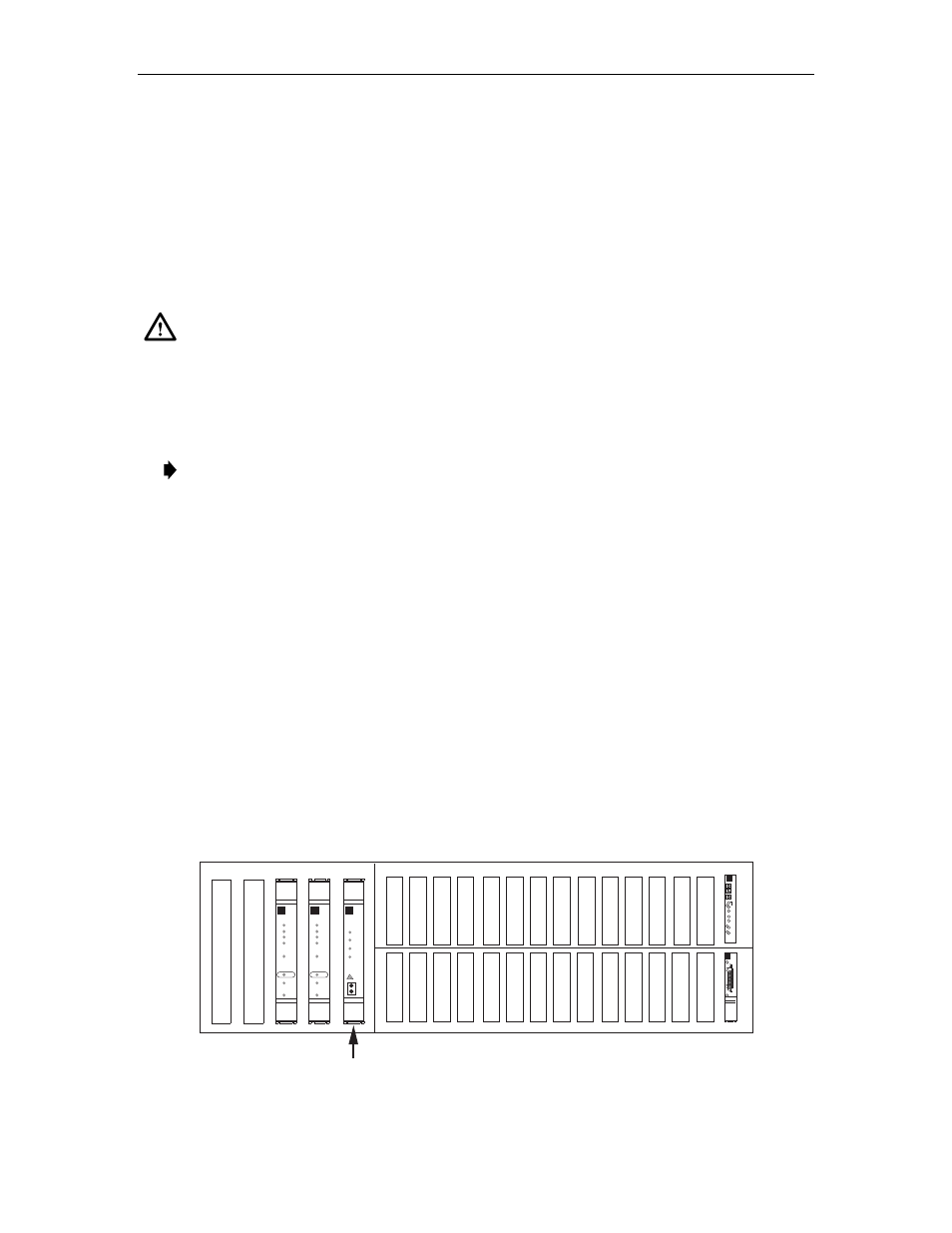

Figure 517-1. RTAU Mounting Position in the Soneplex Broadband Chassis
