ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
2-83
© 2000, ADC Telecommunications, Inc.
DLP-525
Page 3 of 6
8. Repeat entire procedure for each RLX module.
Stop! You have completed this procedure.
6262-A
SA2 SA3 SA3-1
CONFIGURATION
SWITCH PLACEMENT
= 22.5 DB
= 15 DB
= 7.5 DB
= 0 DB
OPEN
1 2 3
OPEN
1 2 3
OPEN
1 2 3
NOT USED
SPAN POWER
CLOSED = ON
OPEN = OFF
DSX LINE EQUALIZATION
OPEN, OPEN, OPEN
CLOSED, OPEN, OPEN
OPEN, CLOSED, OPEN
CLOSED, CLOSED, OPEN
OPEN. OPEN, CLOSED
= 0 TO 133 FT
= 133 TO 266 FT
= 266 TO 399 FT
= 399 TO 533 FT
= 533 TO 655 FT
NID LOOP CODE RECOGNITION
CLOSED = ENABLE
OPEN = DISABLE
TRANSMIT LINE BUILDOUT
CLOSED, CLOSED
CLOSED, OPEN
OPEN CLOSED
OPEN, OPEN
SA2 SA3 SA3-1

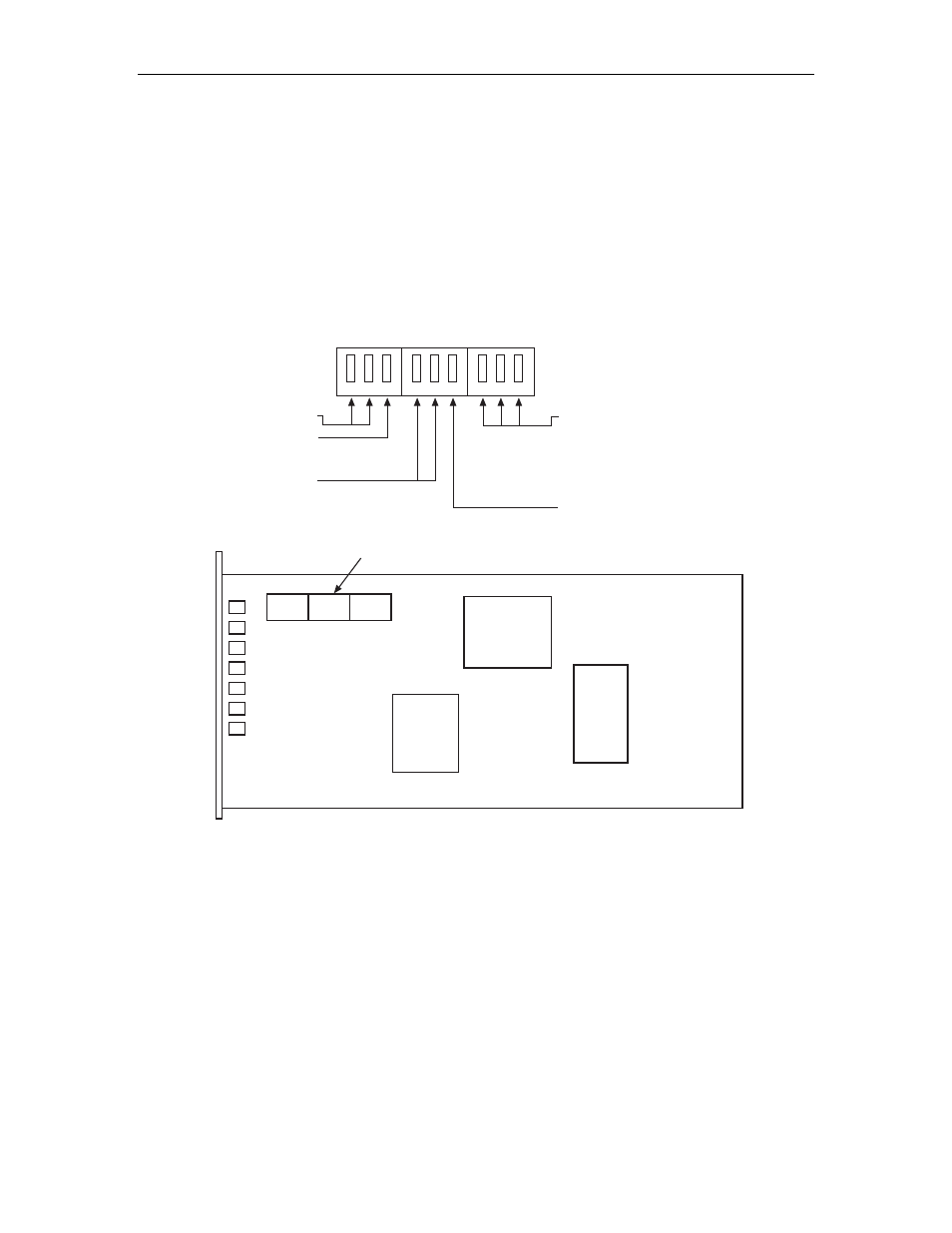

Figure 525-1. Version A RLX Configuration Switches
